Sony Xperia Z3 Compact Main Flex Replacement

Geschrieben von: Sophia
  • Kommentare: 9
Sony Xperia Z3 Compact Main Flex Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

35 Minuten - 1 Stunde

Einleitung

Remove the main flex cable from the Sony Xperia Z3 Compact motherboard. This includes the button cable.

  1. QnMDVM6CvJoDttIL
    QnMDVM6CvJoDttIL
    oBQYMscJWWJreYcJ
    2d6REcClPKOlDchO

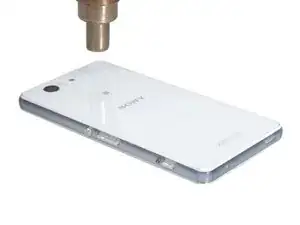

    • First, heat up.

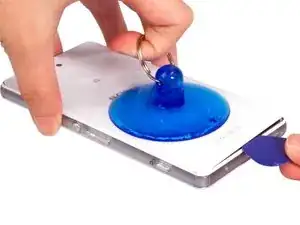

    • And then place the suction cup and pull to open a gap. Insert into the guitar pick to cut the adhesive sticker under the back cover.

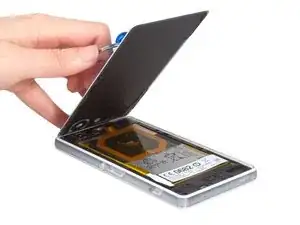

    • Finally, remove the back cover.

  2. W5tPIckAsJvjlHLL
    W5tPIckAsJvjlHLL
    kcNLX1gN5y11N2HI
    m3vDKpjrkcpdfwLK

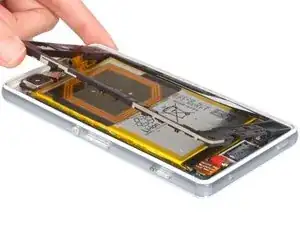

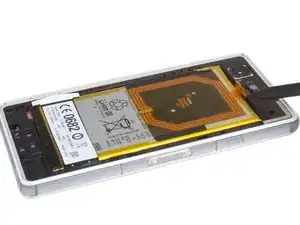

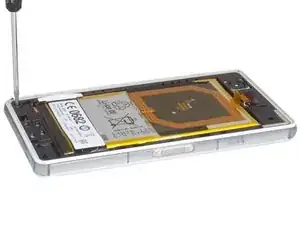

    • Disconnect the NFC antenna.

    • Unscrew the screws holding the black midframe in place.

    • Remove back frame.

  3. QZwS5pgQ1xSQSnPQ

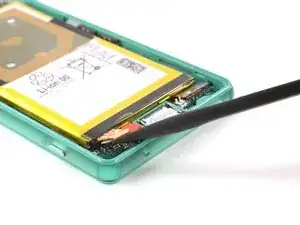

    • Disconnect the battery flex cable.

  4. W6vIVT2qJmKCTTKO
    W6vIVT2qJmKCTTKO
    nYKLLHBlEHRr3AA3
    KOVZVnHouRsPUEd4

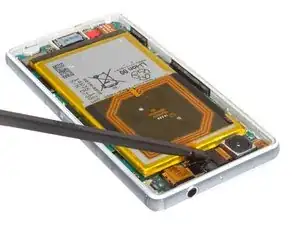

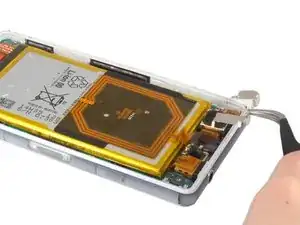

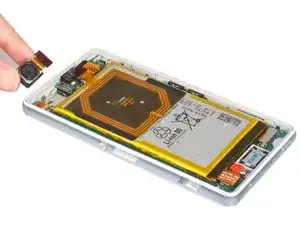

    • Remove rear camera bracket.

    • Release connector, but take care not to damage the electronic components next to the connector. It is best to access the connector from the bottom (battery side), and not from the side as the picture shows.

    • Remove rear camera.

  5. LkOImmw3E6wCkVci
    LkOImmw3E6wCkVci
    3AxveJjiLLGCAwSg
    2vfuTUbTan1UCyHe

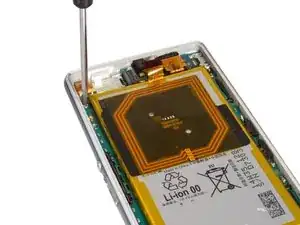

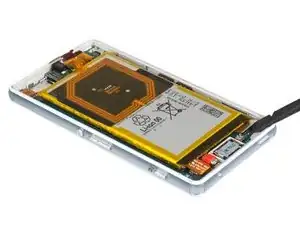

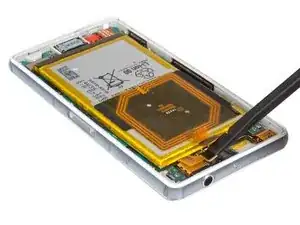

    • Release connectors and screw.

  6. esJfNfQrKxOTH3FI
    esJfNfQrKxOTH3FI
    P4IUByLeHSLuOL1T
    kwjiVUPa2RJtNdoB

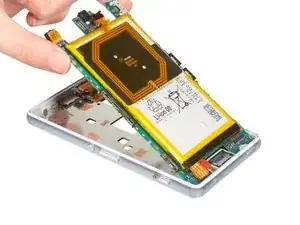

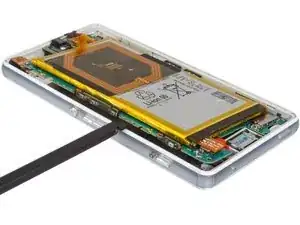

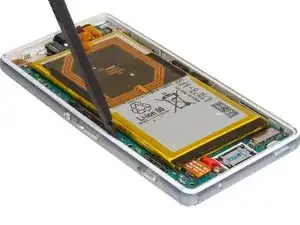

    • Remove motherboard.

    be very careful with the flex cable that is connected to the vibrator, it is very easy to break that when removing motherboard

    anonymous 8554 -

    vibrator with orange silicon cover is fixed with sticker. you better pull it off with spudger before removing the motherboard

    jibou1356 -

    yup, broke mine. Should've come here first. I'll leave it the way it is. I'm not replacing the entire main flex just for this.

    PETRISOR M -

  7. OjCIT2XBfvYXZmEB
    OjCIT2XBfvYXZmEB
    21eQMeVMODY1NUto
    2HI6lqnXnbTYiC1u

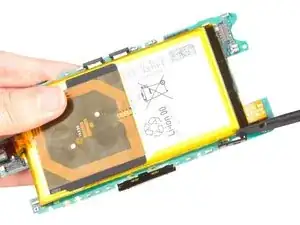

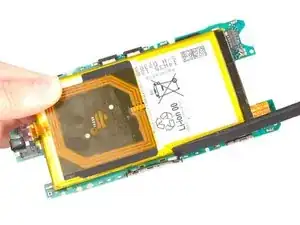

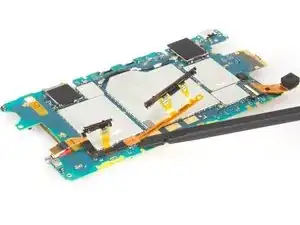

    • Remove main flex.

Abschluss

To reassemble your device, follow these instructions in reverse order.
