Sony Xperia Z3 Dual Battery Replacement

Geschrieben von: Sophia
  • Kommentare: 3
Sony Xperia Z3 Dual Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

Keine Schätzung

Einleitung

Sony Xperia Z3 battery is non-removable. When you encountered the problem with battery, it's a little complex to replace.

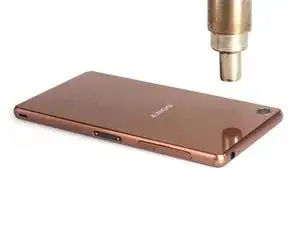

  1. 5y3wEcgnDUNsY3eD
    5y3wEcgnDUNsY3eD

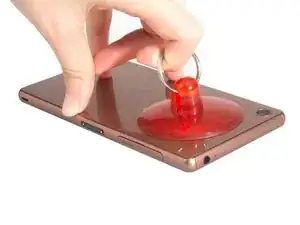

    cK6CpGhOfOMuBHDM

    • Heat the back cover to soften the adhesive sticker.

    • Use the suction cup to open a gap from top side or bottom side.

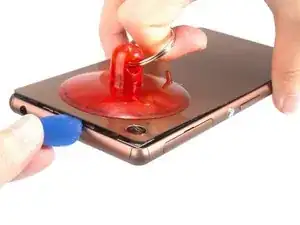

  2. rt51o6obohfVlC4E
    rt51o6obohfVlC4E

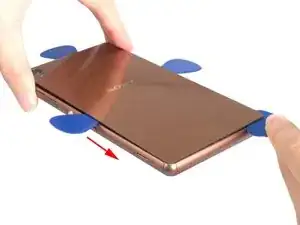

    TAHOfj3pyOEcUXQr

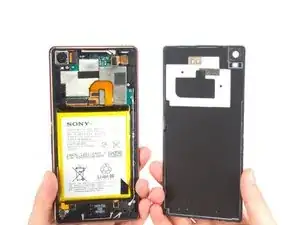

    AiyQIQZFvcsXVMRU

    • Insert into the guitar pick and slide to cut the sticker.

    • Remove the back cover.

    In step 5 where it says that there is adhesive on the battery, my adhesive was actually joining the battery to the back plate making this step quite difficult. I had to focus the heat on the backplate right where the battery was and then use a long lever to separate the battery from the back plate.

    Seb Carroll -

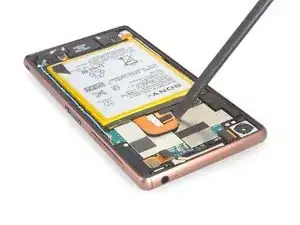

  3. MTHRFqiCJ6gPXmHp

    • Release battery flex connector carefully to avoid breaking the pins.

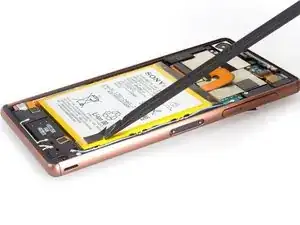

  4. JBsMvQMhKPTk6UtJ

    • Get free that sticker which for fastening the battery.

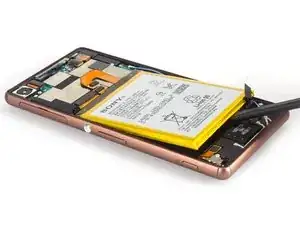

  5. wiM2TH2aaMHtfqgh

    • Pry up with a little effort because there is adhesive under the battery though not so strong.

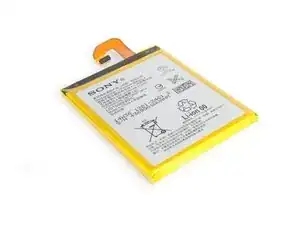

  6. 6J2ITS5ivSpGWIFa

    • That's Sony Xperia Z3 Dual 3100mAh battery.

    • When you finished to replace battery and ready to assemble the phone, you need a piece of new back cover adhesive sticker because it's disposable and the old one can't use any more.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Sophia

Mitglied seit: 25/03/14

43756 Reputation

2 Kommentare

Do you happen to know if the Z3 battery will also fit the Z3v i cant seem to find a replacement specifically for the Z3v

Victor Aguirre -

Just finished this guide thank you!

Seb Carroll -
