Sony Xperia Z3 Dual Earpiece Speaker Replacement

Geschrieben von: Sophia
  • Kommentare: 3
Sony Xperia Z3 Dual Earpiece Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

Keine Schätzung

Einleitung

This is the replace guide for Sony Xperia Z3 Dual as well as Sony Xperia Z3 earpiece speaker.

  1. ENTSuoTccFqDkrop

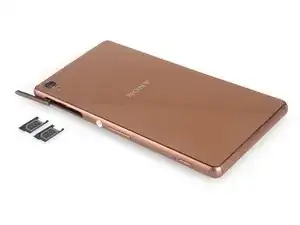

    • Power off and remove two SIM card trays at first before earpiece speaker replacement.

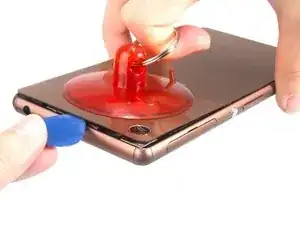

  2. MDtuI55OuH2jAEHZ
    MDtuI55OuH2jAEHZ
    4oLRb33PPiKOfSAn
    bUNaWK5fQv2GkEuo

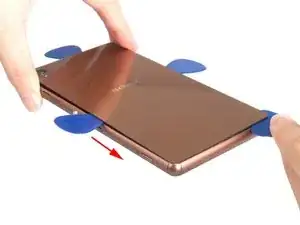

    • Heat to soften back cover adhesive sticker.

    • Use suction cup to open a gap and insert into the guitar pick.

    • Slide guitar pick to cut the sticker.

  3. ZJjYWLROILIWYUuR

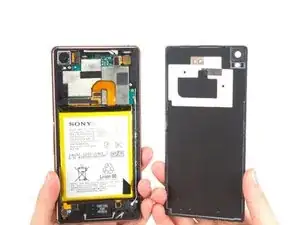

    • Remove back cover.

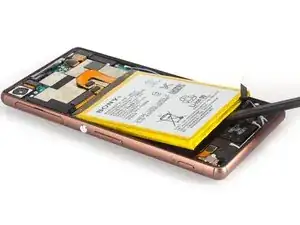

  4. DnlbAYrAqD5AM3W3
    DnlbAYrAqD5AM3W3
    bIF45OVxFDGTLQ2e
    rtfPnllv6GyNSgoE

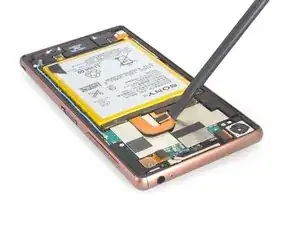

    • It's easy to remove the battery.

  5. XSrSQTWLQtV5R5jn

    • Twist off two screws at first.

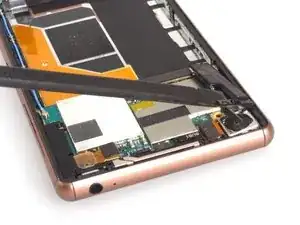

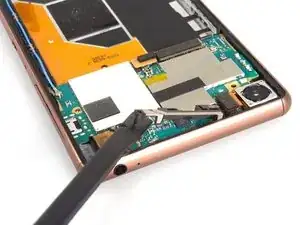

  6. cErVftWdMUVMPZAE
    cErVftWdMUVMPZAE
    T5gOHhJYIAn6uNQW
    LHFFwDuB2T4Uvvqm

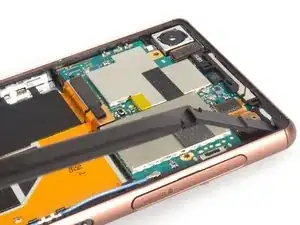

    • Remove three pieces of securing bracket.

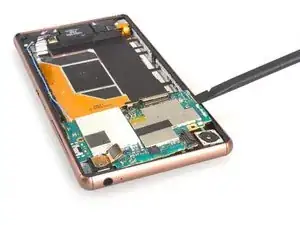

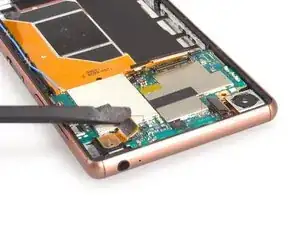

  7. IPK3pkeGsmOPdVxA
    IPK3pkeGsmOPdVxA
    VJwBDlENaiH2qPw2
    RTTON4f1AG2TeTWX

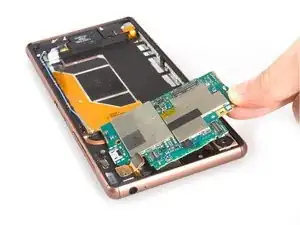

    • Release all the connectors connecting with motherboard.

    • Pry motherboard up from left side. It's really hold tightly by some hidden keys, so be careful.

    • Remove motherboard.

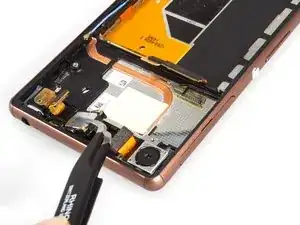

  8. cuatjnnJPLoXRIUo
    cuatjnnJPLoXRIUo
    CqTN5HHKxSTFJBxL
    MlEkNZTgffefMgdA

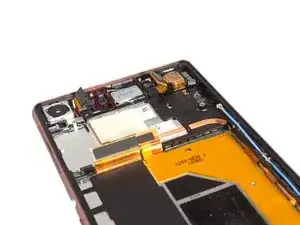

    • Remove the blocker beside earpiece speaker and you can see the breakout to pry up the speaker.

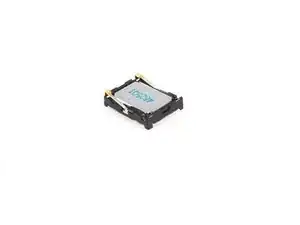

    • Remove earpiece speaker finally.

Abschluss

To reassemble your device, follow these instructions in reverse order.
