Sony Xperia Z3 Dual Headphone Jack Replacement

Geschrieben von: Sophia
  • Kommentare: 0
Sony Xperia Z3 Dual Headphone Jack Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

Keine Schätzung

Einleitung

This is the replace guide for Sony Xperia Z3 Dual and Sony Xperia Z3 headphone jack. But your phone may be not waterproof after DIY headphone jack replacement.

  1. yyTpJBBQQRXqdBa1

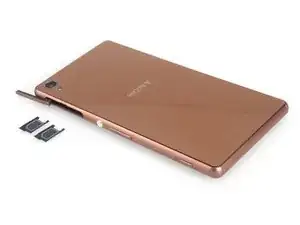

    • Power off the phone and remove two SIM card trays before headphone jack replacement.

  2. RADbvTb4AsIE2dMn

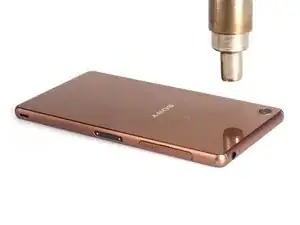

    RADbvTb4AsIE2dMn
    CMUE3tDBvIerQmWI

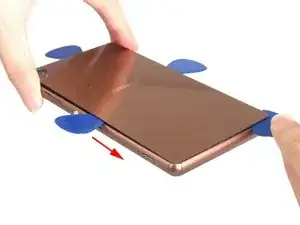

    PJl3HUNn5vEUXJuI

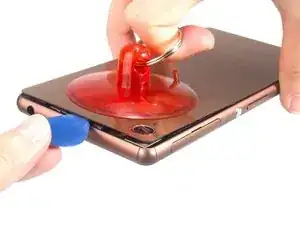

    • Heat to soften back cover adhesive sticker.

    • Use suction cup to open a gap and insert into the guitar pick.

    • Slide the guitar pick to cut the sticker all around every side.

  3. HOjWkgkXpSEdG6Xm

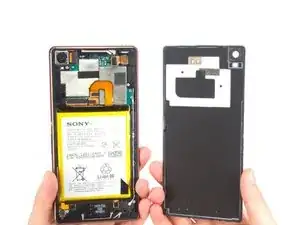

    • Remove back cover.

  4. VqEUvtITYHbc1HGh

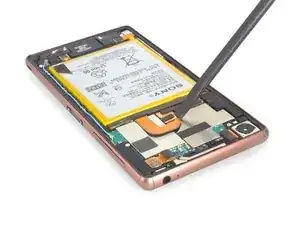

    VqEUvtITYHbc1HGh

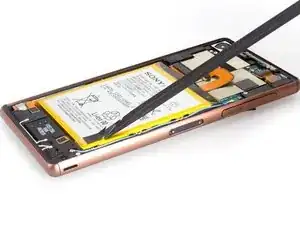

    ONSD6hpPiWPtFuLp
    cuDXtI6GYCiWXFhH

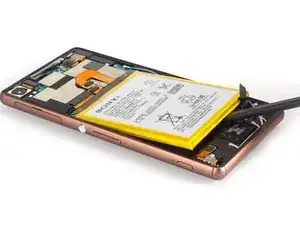

    • Remove battery easily.

  5. TgULCnHOZJpIFBvK

    • Twist off two screws by Philips screwdriver at first.

  6. fD1TUZPjBBKyLOXs
    fD1TUZPjBBKyLOXs

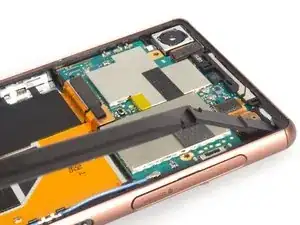

    UxSdDnj2mB2Tkeu4
    4xGqtAZHIBPUFgyI

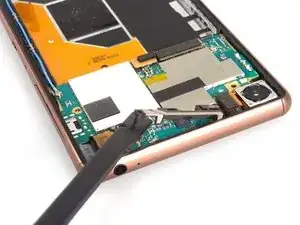

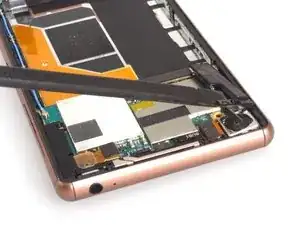

    • Remove three pieces of securing bracket.

  7. XtbsntB1mLDO6ul6

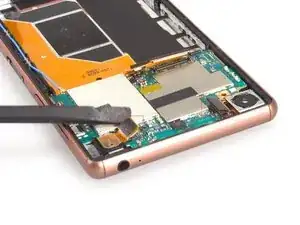

    XtbsntB1mLDO6ul6

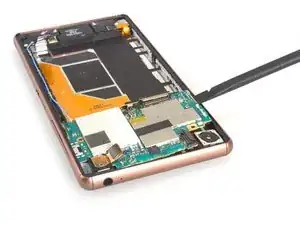

    NQieLF6CvK6oIZQI
    IUocSptkBQGccnVu

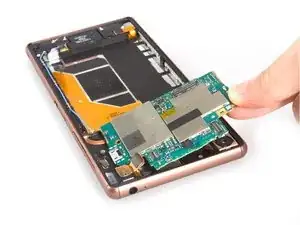

    • Release all the connectors connecting with motherboard.

    • Pry it up from left side. Please be careful with some hidden keys, they held the motherboard really tightly.

  8. IrRUZYD4osQbwP1h
    IrRUZYD4osQbwP1h

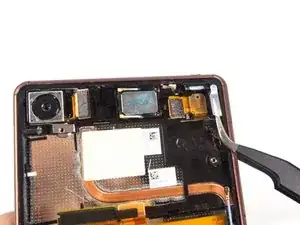

    6qXRWlAr6O4NjhEK

    • Remove securing cover beside headphone jack.

  9. fexUoL4obBUM6hKj

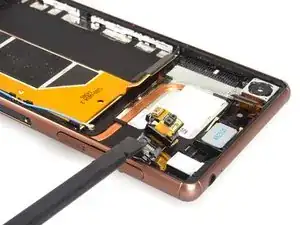

    fexUoL4obBUM6hKj

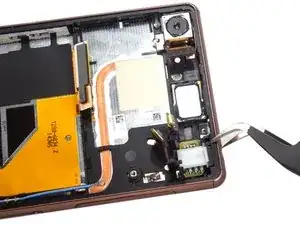

    DccqeLIKHGpqWQJc
    Ng1MTWsfFa4dMIoW

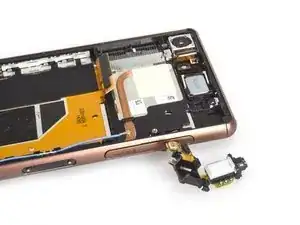

    • Remove the flex cover on the headphone jack. It's a part of the assembly and comes with denoise MIC and sensors.

    • Cut the adhesive sticker between headphone jack and midframe.

    • Remove headphone jack finally.

Abschluss

To reassemble your device, follow these instructions in reverse order.
