Sony Xperia Z3 Dual LCD screen Replacement

Geschrieben von: Sophia
  • Kommentare: 18
Sony Xperia Z3 Dual LCD screen Replacement

Schwierigkeitsgrad

Difficult

Schritte

10

Zeitaufwand

1 - 2 Stunden

Einleitung

And that's the supporting blog which will provide more detailed information.

  1. idqnU61aeE3IfaZa
    idqnU61aeE3IfaZa
    GC6WpJPUldKjVGFJ
    lLds4tgmHHeEuUqJ

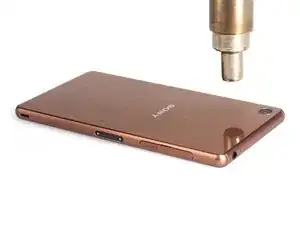

    • Use a heat gun to soften the back cover sticker around the edges.

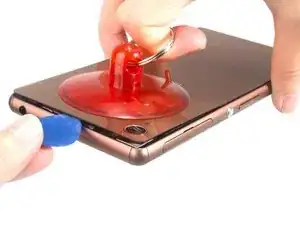

    • Use a suction cup to pull open a gap and insert a guitar pick.

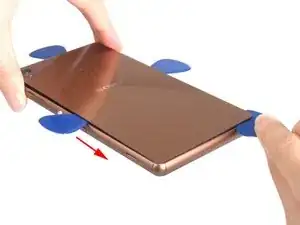

    • Carefully slide the guitar pick to cut the sticker. If you use too much force you can easily crack the glass!

    Are the lcd screen of Sony xperia z3 dual the same with lcd screen sony xperia z3??

    Rezzig Rvi -

    yes ..they the same ...

    B G -

    Are the lcd screen of sony xperia z3 dual the same with lcd screen of sony xperia z3+??

    Muhammad Luthfi Fadlillah -

    May I know ,how much for the repair this Sony Xperia z3+

    hariyatin -

  2. O5y5Enj4NLiTjOFG

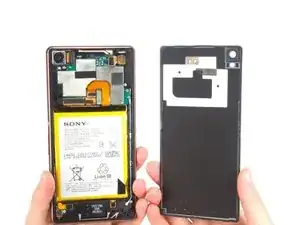

    • Remove the back cover and have a quick look around the inside.

  3. RIGUHvQJ6A3QCA61
    RIGUHvQJ6A3QCA61
    ZnVBpNRuYPEpm2fw
    YrwNkltJaDeUGpMQ

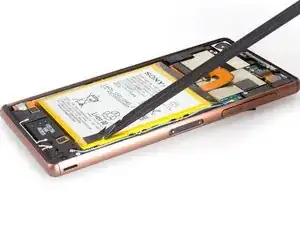

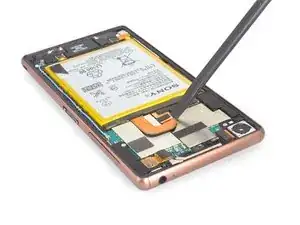

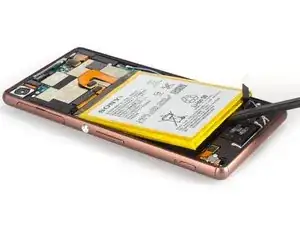

    • Release the battery connector and peel the sticky tape from the bottom corner of the battery.

    • Use the sticky tape to carefully pull up and remove the battery.

    The battery was glued to the back cover on the phone I just took apart. Ended up destroying the back panel trying to release it. Still it's only £3 for a replacement from eBay.

    Gareth Jones -

    My battery had a plastic frame surrounding it. I had to remove two screws at the ends to release it

    Richard Osborn -

  4. nlAomHc5QMHlUu22

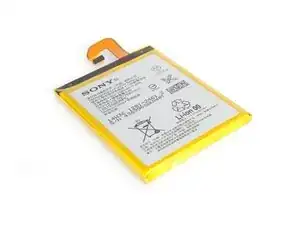

    • The Sony Xperia Z3 Dual 3100mAh battery.

  5. vBaeGTwa6BIrwJsd
    vBaeGTwa6BIrwJsd
    ExAwwpochjHjFQPj
    QHdRIO4eOnfgXiAl

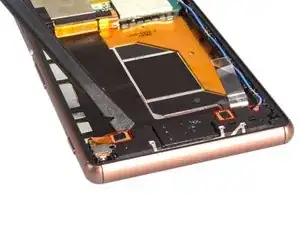

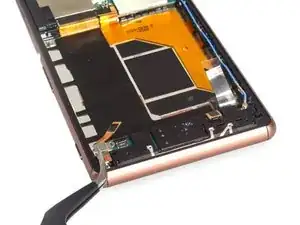

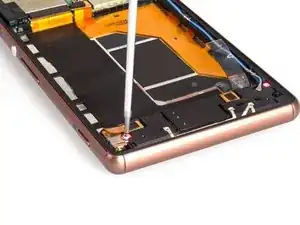

    • Remove the two screws with a Philips screwdriver.

    • Release the three connectors connected to the loudspeaker assembly.

    • Remove the vibrator securing bracket (this may be optional for some devices).

    Whats the screw size?

    shashikantchavan -

  6. pOiTGQGgQfLpBor3
    pOiTGQGgQfLpBor3
    eAZwV6Md4mINsqNm
    IQtlwqTOaBuQK1DE

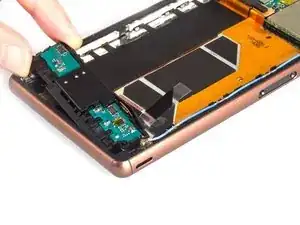

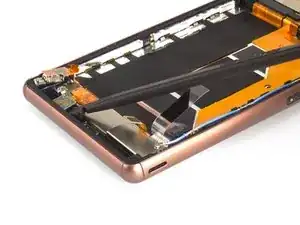

    • Remove the loudspeaker assembly cover. Tip: pull it toward the centre of the phone as you pull upwards.

    • Pry up and remove the loudspeaker assembly.

    • Carefully loosen the microphone here.

  7. sfjIcUJfImvMBJTF
    sfjIcUJfImvMBJTF
    WcoNSb1VC4ZvVCvc
    aIfFGJRdW365XiJS

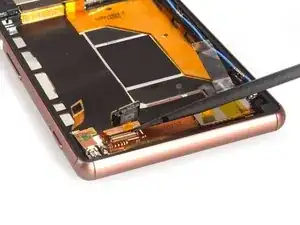

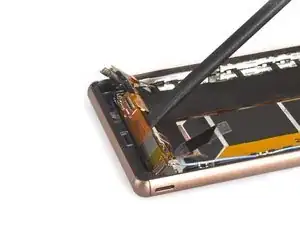

    • Carefully remove the metal LCD flex cover.

    • Release the LCD connector from the main flex cable.

    • Carefully pry the LCD connector from the sticker underneath.

  8. 5meZ4JhwuWSff3cX
    5meZ4JhwuWSff3cX
    ZlANiapLDqNbTdXP

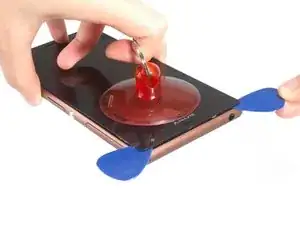

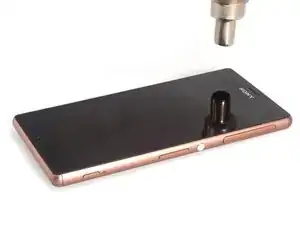

    • Removing the screen is the same as opening the back cover. Heat, open a gap, insert a guitar pick, slide and cut the sticker. Start from the top.

    • Tip: The glue here is stronger, you may need to insert something sharp in the corner to start.

  9. da2aAprWhh2QRJGh
    da2aAprWhh2QRJGh
    blHP1uwTu4SiEy1K
    ht6sIUF4CTuV2Dj4

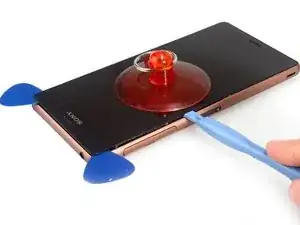

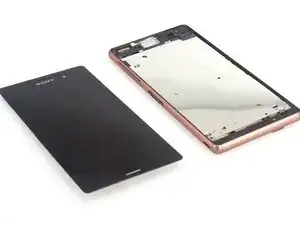

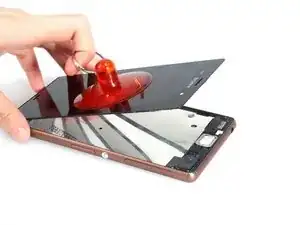

    • You can use a plastic opening tool to cut the sticker of left and right side.

    • Finally Pull the screen up and remove it. Be careful with the bottom LCD connector and sticker.

    How much screen call me 0873746074 for sony xperia z3

    johncarpenter -

  10. ZrpxMf6KZrPZCRts
    ZrpxMf6KZrPZCRts
    VnOho2JKMkGXcQNV

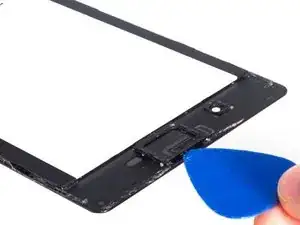

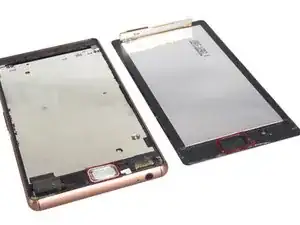

    • It's a weird design that the earpiece speaker is stuck onto the Sony Xperia Z3 front glass and not the supporting frame. It means it is possible to remove the LCD screen with the earpiece speaker attached, or separate the speaker from its securing bracket.

    • The above steps depend on the length of the guitar pick that you use.

    Make sure that your glue is even around the edges. When I reinstalled the screen I pushed down a little too hard on an irregularity on the screen, I think also the casing was bent inwards on that edge & it broke the screen so had to buy a new screen.

    znewcombhall -

Abschluss

To reassemble your device, follow these instructions in reverse order.
