Sony Xperia Z3 Dual Loudspeaker Assembly Replacement

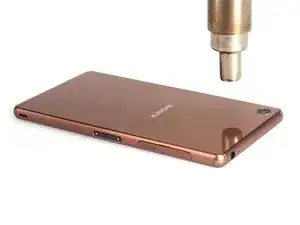

Heat to soften back cover sticker.

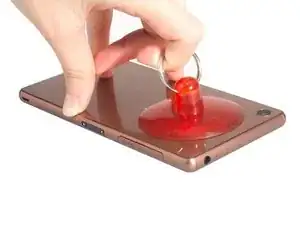

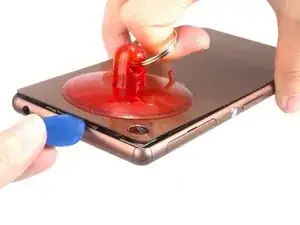

Place the suction cup and try to open a gap.

Insert the guitar pick into the gap.

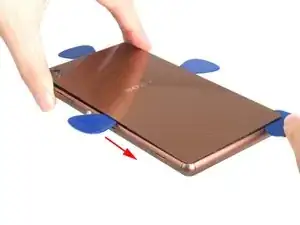

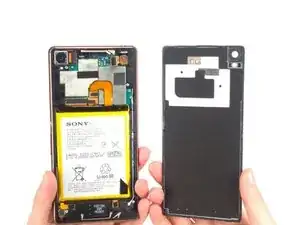

Slide the guitar pick to cut the sticker and remove the back cover.

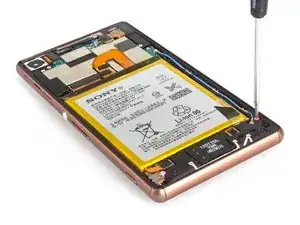

Remove two screws by Philips screwdriver.

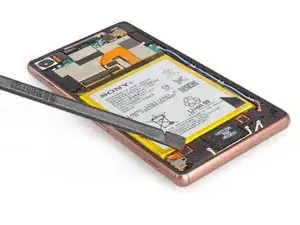

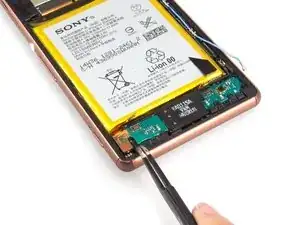

Release all the connectors connecting with loudspeaker assembly.

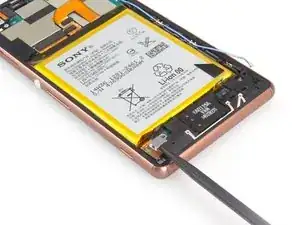

Remove the small vibrator securing bracket.

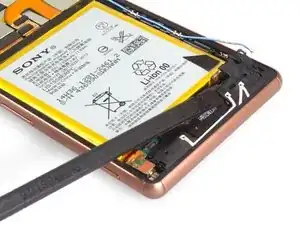

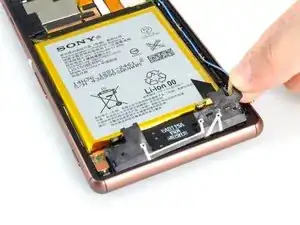

Remove the securing cover. It's thin and weak, please be careful when remove it.

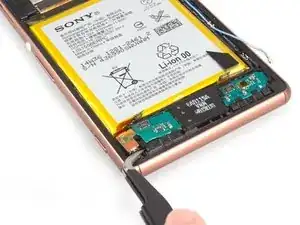

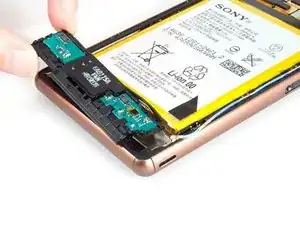

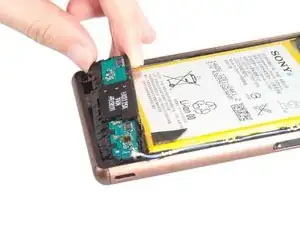

Pry up the assembly and carry it out.

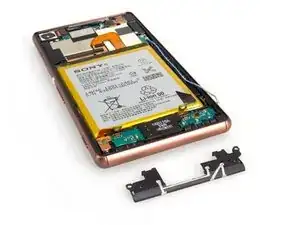

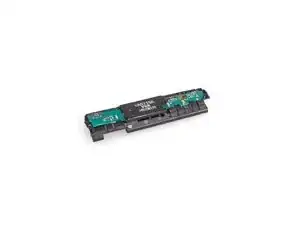

Remove the loudspeaker assembly finally. Be careful with the flex beside assembly.
