Einleitung

  1. brVbAeyXHFXhtqio
    brVbAeyXHFXhtqio
    S6pImmMNgVkeiyxH

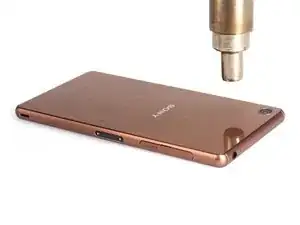

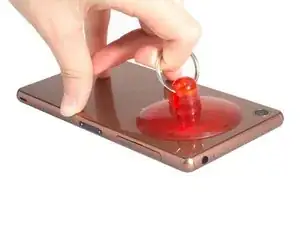

    • Heat to soften back cover sticker.

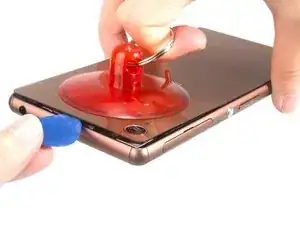

    • Place suction cup and pull open a gap.

    اريد المنتج هذا المرن الرئيسي

    H ammody -

  2. KBQdUngYqjuHVXHR
    KBQdUngYqjuHVXHR
    QAOPFaqt3eVg3pxH
    CZScucq5bPLhpOii

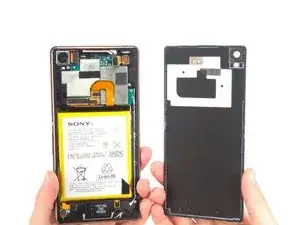

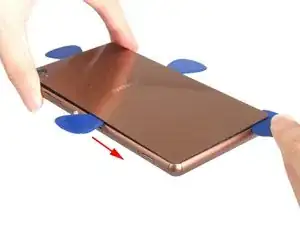

    • Insert into guitar pick, slide and cut the sticker. Finally, remove the back cover.

  3. EEYHSvqVeI2RuQxy
    EEYHSvqVeI2RuQxy
    Us1hvmW3DpAVDokI
    unmoGNWwsCtAMZpE

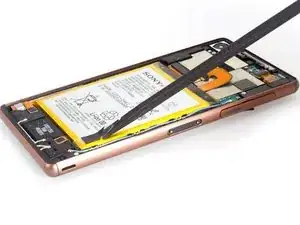

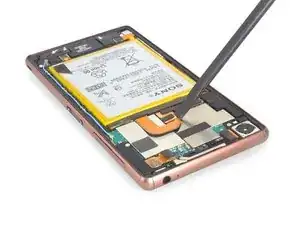

    • Remove the battery.

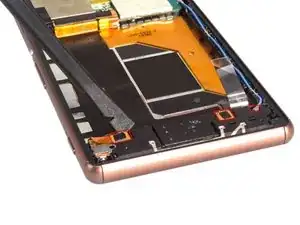

  4. iTEoDWuFYRDIAJSq
    iTEoDWuFYRDIAJSq
    1mIe2xpb1gZDUifh
    u2YyOeKFUJT6VOHo

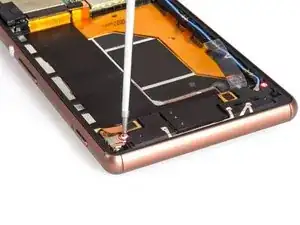

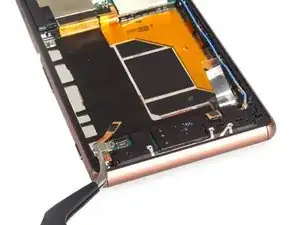

    • Twist off two screws here.

    • Release all the connectors connecting with loudspeaker assembly.

    • Remove vibrator securing bracket.

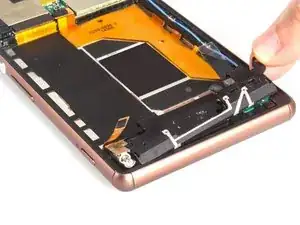

  5. 4MUmhIeMKkklw2RG
    4MUmhIeMKkklw2RG
    OJ4QRxmC4UBU6RL1

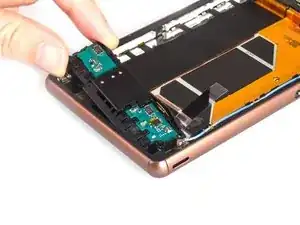

    • Remove loudspeaker assembly cover and assembly itself.

  6. HPuO2IFI2vIPfRtF
    HPuO2IFI2vIPfRtF
    u2le4PugshCtCWRp
    hZT6SpBYQeaCVyDp

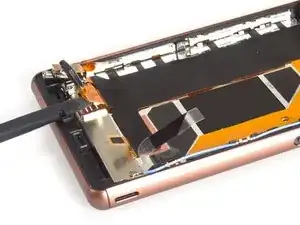

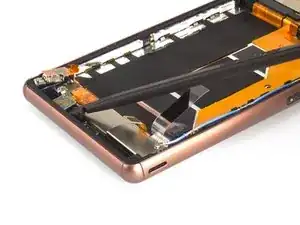

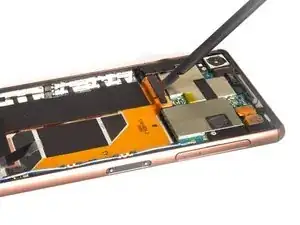

    • Pry up the MIC. It's a part of the main flex.

    • Release the connector with LCD screen flex and the connector with motherboard.

  7. 2geh4gYdO3OiujOx
    2geh4gYdO3OiujOx
    JJidYC4XejTlvoDy
    xtXFBuiNRBWj4wnS

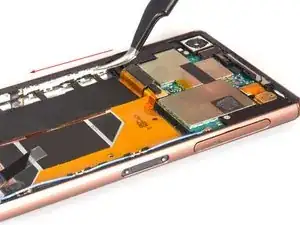

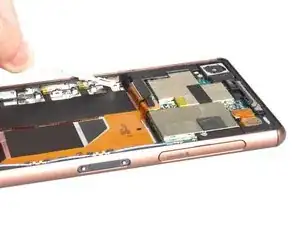

    • Push the upper power button & volume button flex branch bracket as the direction marked, and then remove it easily.

    • Pry up the lower shutter button flex branch bracket carefully. It's different from the upper one, it's come with the flex together but the upper one not.

  8. AKyoRewOKXEG6OIY
    AKyoRewOKXEG6OIY
    dT1QEXbNvxjFf16j
    vY3ElZMWwRWBUChj

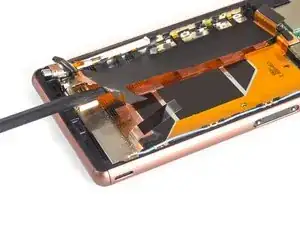

    • Get the flex from the sticker underneath carefully.

    • And then, take the power button & volume button flex branch out from the slot.

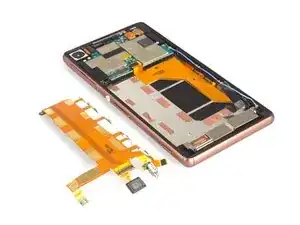

    • Finally, remove the whole main flex.

    Is it ok to remove the small copper stickers under the flex?

    Miguel Damayo -

Abschluss

To reassemble your device, follow these instructions in reverse order.
