Sony Xperia Z3 USB cover and SD card slot cover Replacement

Geschrieben von: Sophia
  • Kommentare: 4
Sony Xperia Z3 USB cover and SD card slot cover Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

2 - 5 Minuten

Einleitung

Use this guide to replace the USB cover and SD card slot cover for a Sony Xperia Z3 smartphone.

Note that although the photos in this guide feature a Z3 model with its battery and other components removed, it is not necessary to remove these components to replace the USB cover and SD card slot cover.

Sony Xperia Z3 USB Port Cover + SD/SIM Flap Replacement

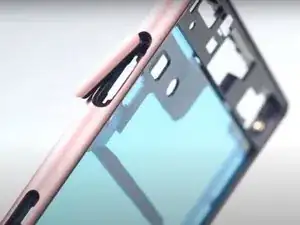

  1. At13CseIDVDpOgl5
    At13CseIDVDpOgl5
    14IxBSUmsMHNvtjx
    CJFMaAKWhcOGD2XE

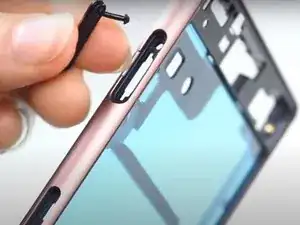

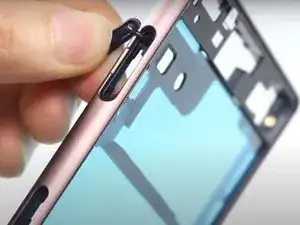

    • Use your fingers to pull firmly on the broken USB port cover until it pops out.

    • Remove the USB port cover.

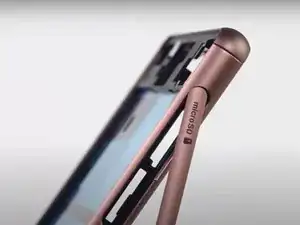

  2. bCaIwBwaykIlJsPY
    bCaIwBwaykIlJsPY
    owaGurMNTSbTWeRr
    3f654PrrQUXwFkp2

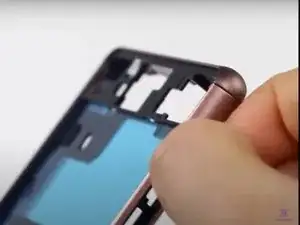

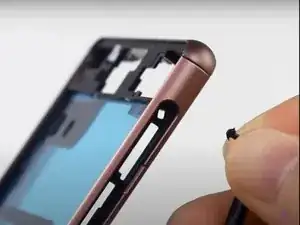

    • Use your fingers to firmly pull out the SD/SIM card flap.

    • Remove the SD/SIM card flap.

Abschluss

To reassemble your device, follow these instructions in reverse order.
