Einleitung

prereq battery disconnect Xperia Z5

  1. KxbYRdWMsJn2K1hL
    • Before you begin, switch off your phone.

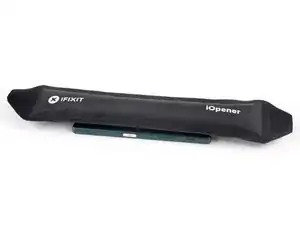

    • Apply a heated iOpener to the edges on the back of the phone to loosen the adhesive beneath the rear glass. Apply the iOpener for at least two minutes.

  2. gLllySsX2p6c2KRJ
    gLllySsX2p6c2KRJ
    sYHuhVGGwtNL3MBY

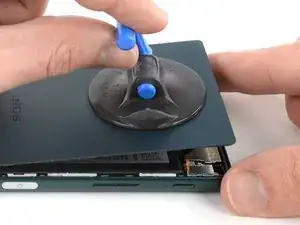

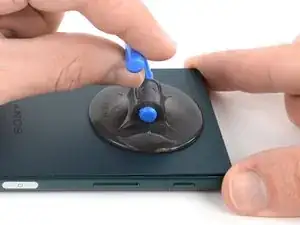

    • Secure a suction handle to the bottom of the rear glass, as close to the edge as possible.

    • Pull up the suction handle to generate a gap.

    • Insert an opening pick into the gap to further separate the rear glass from the phone assembly.

    • The adhesive of the Xperia Z5 is fairly weak and it is possible to remove the rear glass without the use of an opening pick. In case you‘re having trouble you can have a peek at the opening procedure of the Xperia Z4.

  3. 4KrDteXZU1dCD1iG
    4KrDteXZU1dCD1iG
    EEkZGbaipa2JoSpI

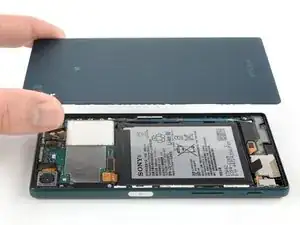

    • Carefully lift and remove the rear glass.

    • After installing the rear glass, apply strong, steady pressure to your phone for several minutes to help the adhesive form a good bond—a stack of heavy books works well.

  4. Bminusk6fhHvtAcQ
    Bminusk6fhHvtAcQ
    lHQNQXbXjLvUoXvA

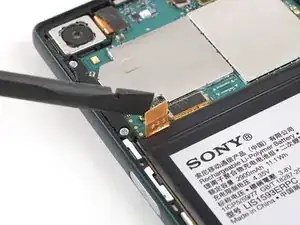

    • Use a spudger to pry up and disconnect the battery flex cable.

Abschluss

To reassemble your device, follow these instructions in reverse order.
