Sony Xperia Z5 Compact LCD Screen Assembly Replacement

Geschrieben von: Witrigs
  • Kommentare: 20
Sony Xperia Z5 Compact LCD Screen Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

1 - 2 Stunden

Einleitung

Wanna disassemble and change Sony Xperia Z5 Compact LCD screen assembly by yourself, following this guide.

  1. WGvwAmcj6PnEGTQF
    WGvwAmcj6PnEGTQF
    KB5PDerrVIvSCVeA

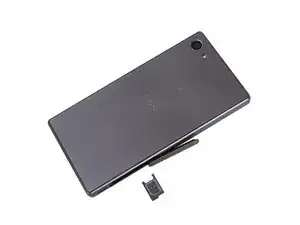

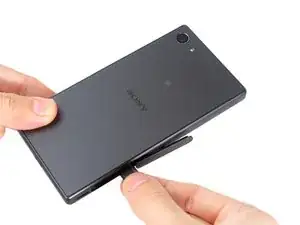

    • Power off and remove SIM card tray.

  2. sF4JXU1KXbSsIkoe
    sF4JXU1KXbSsIkoe
    DwRrdgdJkBmMDLci
    cUvEgywGs4DdRPux

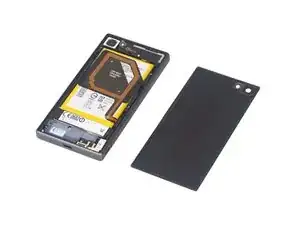

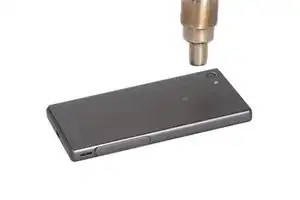

    • Heat up the back cover to soften the adhesive.

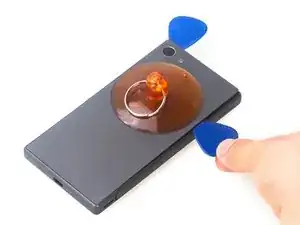

    • Place the suction cup to open a gap from top side, then insert guitar picks and slide it to cut the adhesive underneath.

    • Remove back cover.

    If the adhesive strips are being heated to remove the back, does this mean the waterproof feature will no longer work?

    Andy Morley -

  3. KHZe1rdgkCsThdAH
    KHZe1rdgkCsThdAH
    YvPewMdPNfw1ejDZ

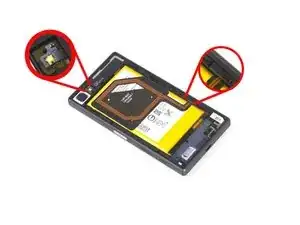

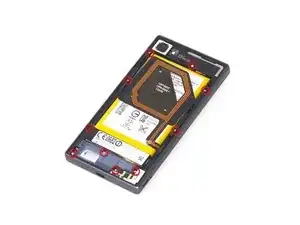

    • Twist off 10 Phillips screws all.

    • Loosen NFC clip and flashlight clip.

  4. MhqO2jpdvBXJaYaT
    MhqO2jpdvBXJaYaT
    cPAcl5qAxJW4xZIQ
    LAaqVTncGYu1vyAX

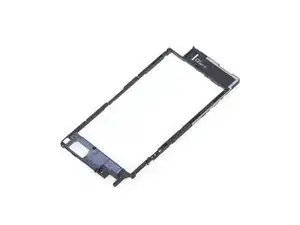

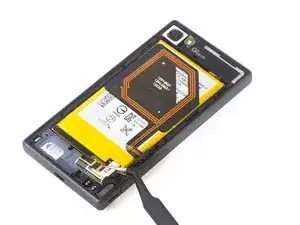

    • Remove the plastic bracket.

    • Pry up and remove back frame.

  5. l12nW4QB3Gtxkuvq
    l12nW4QB3Gtxkuvq
    NYI62cVsTOWiFswD
    SRg5CBf3VdZKImuS

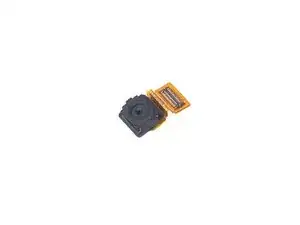

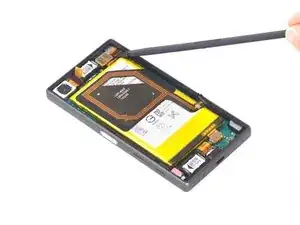

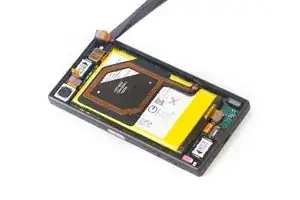

    • Remove front camera.

  6. 2lYTXYDJLAxUGxMo
    2lYTXYDJLAxUGxMo
    LZVK3fEBFCbmheZS
    lIKbpGbsImAiIxCx

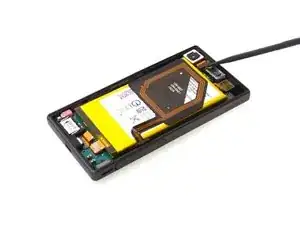

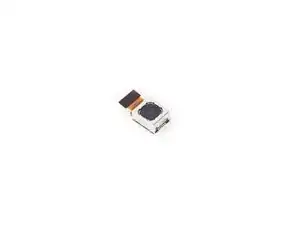

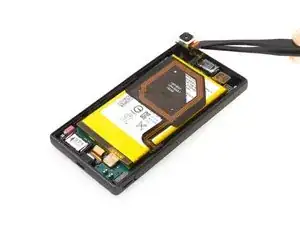

    • Remove rear camera.

  7. cWfHHkoGoTPlvDpB
    cWfHHkoGoTPlvDpB
    FAnlFY4wKKGjPBST

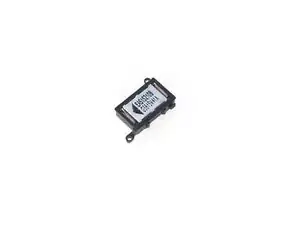

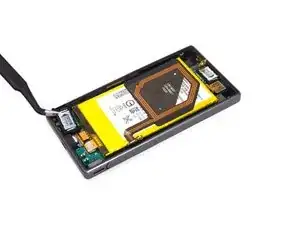

    • Remove loudspeaker.

  8. ErjtS3FMd4HTFNSU
    ErjtS3FMd4HTFNSU
    QFvMONSWIUGebQee
    vSHmo2FHQaEGAVqC

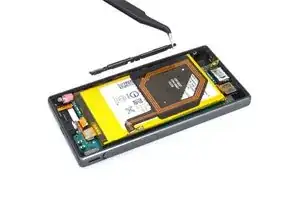

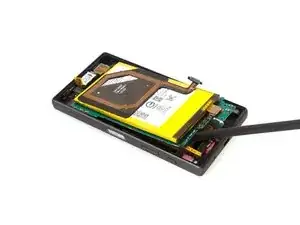

    • Release charging port connector.

    • Remove plastic protective bar.

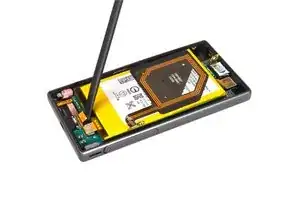

    • Pry up motherboard assembly from this side. There are three flex connectors connecting the motherboard underneath. So pry up the motherboard assembly gently.

    I believe bottom microphone should also be disconnected from chassis at this point (before prying up the motherboard)

    BX81 -

  9. vfnUODBSbt5IaAte
    vfnUODBSbt5IaAte
    FYeePieEIvlxLJtl
    ZUkTOLJI56ZigeEy

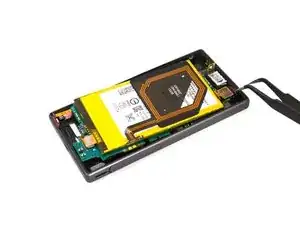

    • Push audio jack out of the slot, no adhesive underneath.

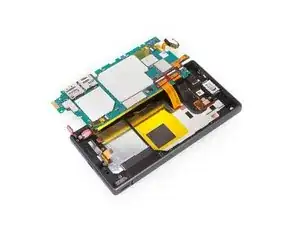

    • Release LCD flex connector and main flex connector by flipping up the white locking tab of the connector base.

    • Separate motherboard assembly from middle housing.

  10. lodLThLjDEcaYlVX
    lodLThLjDEcaYlVX
    qnAhxAmELnpjX1rA
    SH6pNXkUSOacthJh

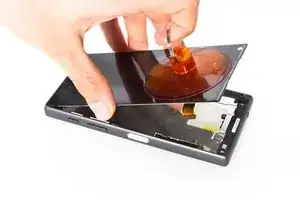

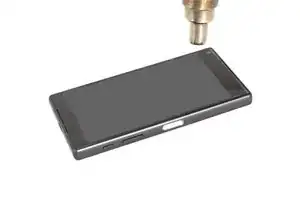

    • The sticker underneath LCD assembly is a little bit strong, so use heat gun to soften it for a few minutes.

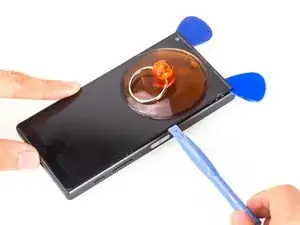

    • Remove LCD with digitizer assembly carefully.

  11. e5tDVMaXWDVuaitN

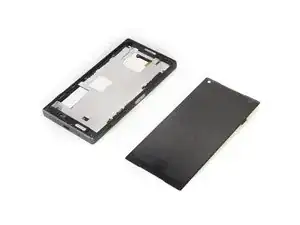

    • Done.

Abschluss

To reassemble your device, follow these instructions in reverse order.
