This guide provides step by step instructions on how to properly replace the screen of the Sony Xperia Z5 Compact.
-
-

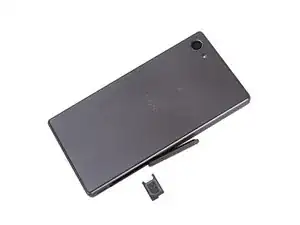

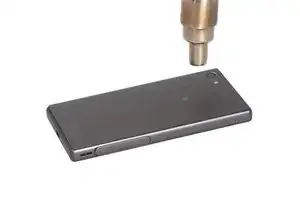

Heat up the back cover to soften the adhesive.
-

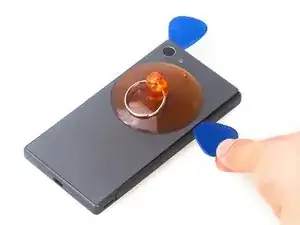

Place the suction cup to open a gap from top side, then insert guitar picks and slide it to cut the adhesive underneath.
-

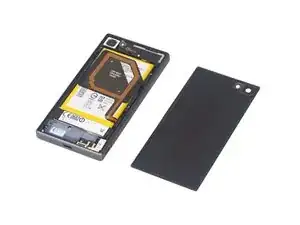

Remove back cover.
-
-
-

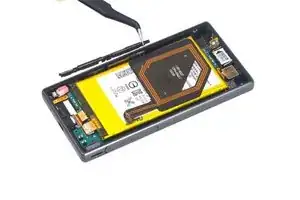

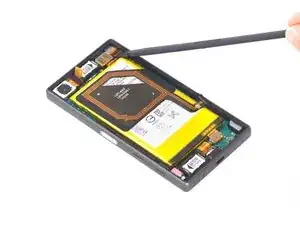

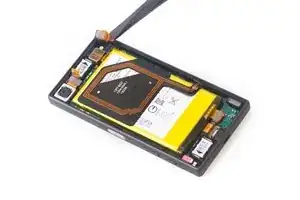

Release charging port connector.
-

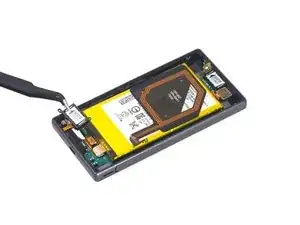

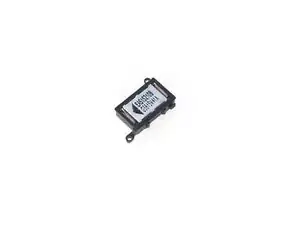

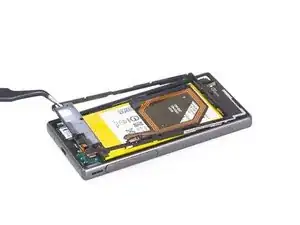

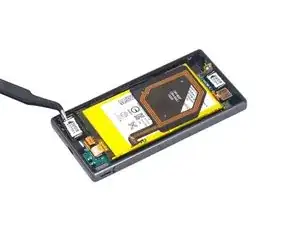

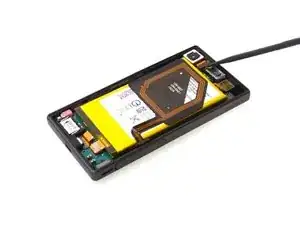

Remove plastic protective bar.
-

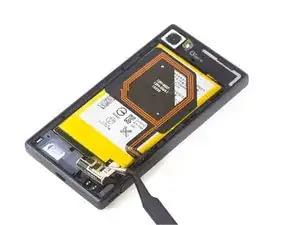

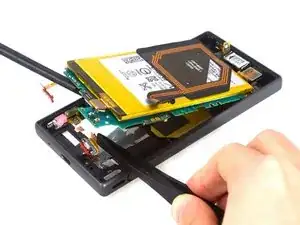

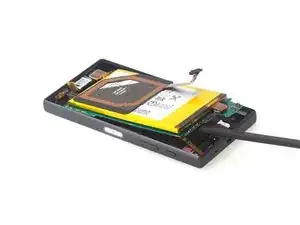

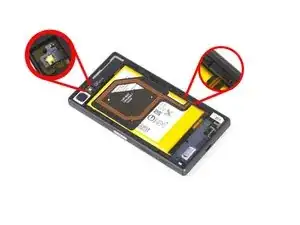

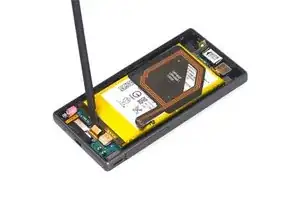

Pry up motherboard assembly from this side. There are three flex connectors connecting the motherboard underneath. So pry up the motherboard assembly gently.
-
-
-

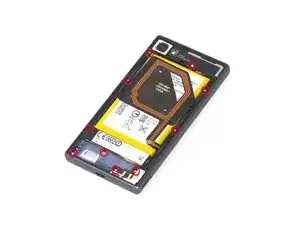

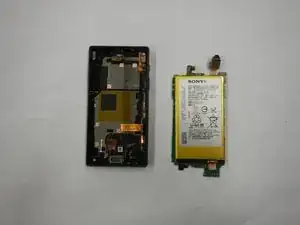

Remove the motherboard/battery assembly.
-
Using a spudger, release the battery connector from the motherboard.
-
-
-

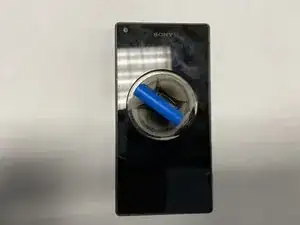

Using a suction cup, create a space between the screen and the phone.
-

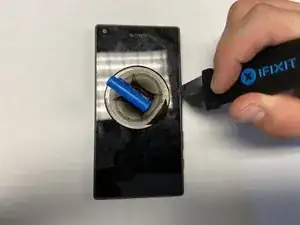

Using an opening tool, pry the LCD screen up.
-
To reassemble your device, follow these instructions in reverse order.
