Sony Xperia Z5 LCD Bildschirm ersetzen

Geschrieben von: Lenka
  • Kommentare: 49
Sony Xperia Z5 LCD Bildschirm ersetzen

Schwierigkeitsgrad

Schwierig

Schritte

14

Zeitaufwand

3 Stunden

Einleitung

Dieses Video zeigt dir, wie du den Sony Xperia Z5 LCD Bildschirm ersetzt (das Video ist jedoch auf Englisch).

.

  1. UioMt2nkjhCPmAVi
    UioMt2nkjhCPmAVi
    IipYKhE6ZFDiIcyj

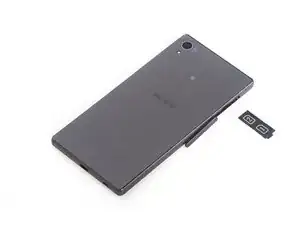

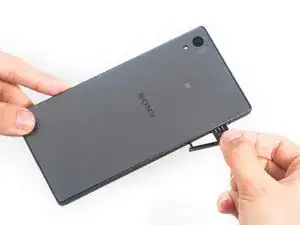

    • Entferne den SIM-Kartenslot.

  2. kyTLvTaoxGmTuA2Z
    kyTLvTaoxGmTuA2Z
    JYR1QHCC4EawyiUZ

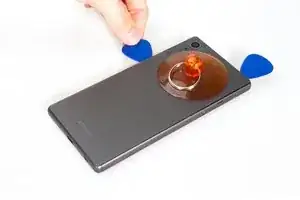

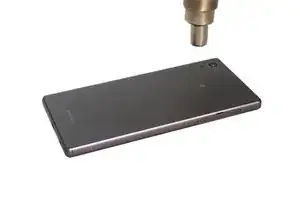

    • Erhitze die Rückseite, um den Klebstoff zu lösen.

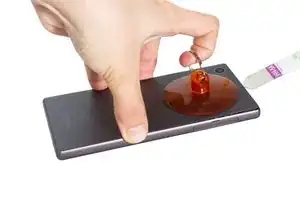

    • Platziere den Saugnapf, ziehe daran und öffne gleichzeitig mit einem Öffnungswerkzeug einen Spalt an der oberen Kante.

  3. JdNPwwDdZxy1lCRJ
    JdNPwwDdZxy1lCRJ
    TsnKx2r3DJw12pGN
    mlESO6KBJYRxC2DC

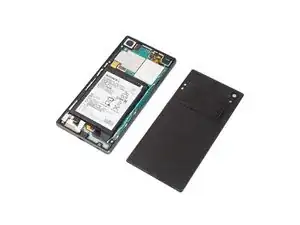

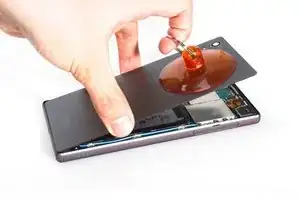

    • Führe das Plektrum in den Spalt und fahre an den Seiten entlang, um den Klebstoff zu lösen.

    • Entferne die hintere Abdeckung.

  4. yNSIkQQWpnQHqgsQ
    yNSIkQQWpnQHqgsQ
    2ecBKrCaFweXbp2w
    RhpByvP5BPLWvUAJ

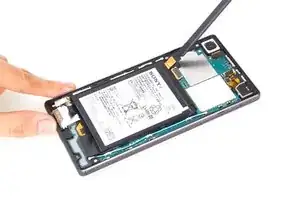

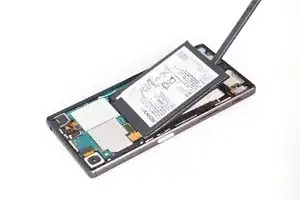

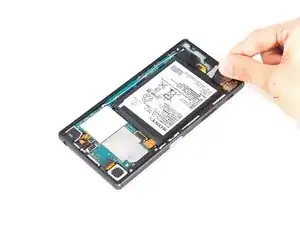

    • Löse den Stecker des Akkus.

    • Ziehe den Klebestreifen unter dem Akku hervor.

    • Hebe den Akku vorsichtig an und entferne ihn.

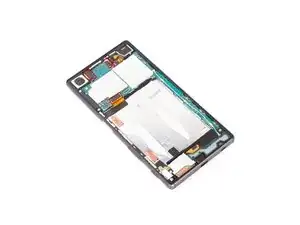

  5. NUaFffTlZ1SleoIA
    NUaFffTlZ1SleoIA
    XS4EcQaBEgRIsu2C
    a6t5qmyvARpGSYsP

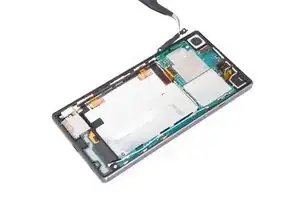

    • Löse den Stecker der Frontkamera, der Rückkamera, der Kopfhörerbuchse und des Hauptknopfes vom Logic Board.

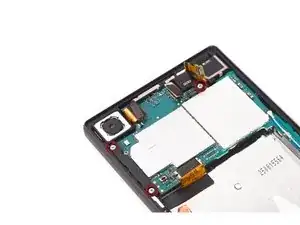

    • Entferne die beiden Schrauben.

    • Entferne die Sicherheitsabdeckung aus Plastik.

  6. GkUE6PSrytpoLMeu
    GkUE6PSrytpoLMeu
    ReNbesYstlReCX5G
    xDMDuZDrRZf4DlCS

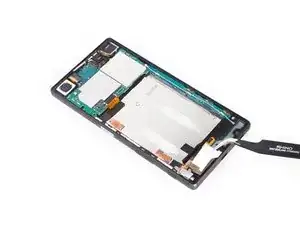

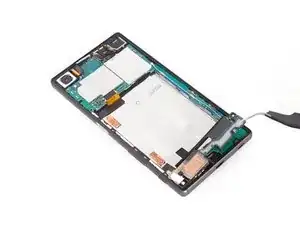

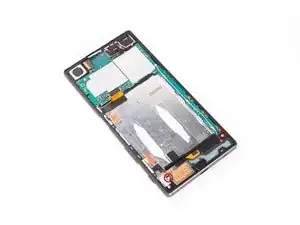

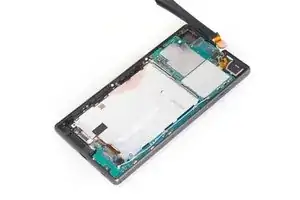

    • Entferne die Metallabdeckung und die beiden Schrauben.

    • Löse das Kabel des Hauptknopfes.

  7. IGyOZAsTl2wjsDcM
    IGyOZAsTl2wjsDcM
    TQk2VqdV4IIJJ63F
    Fyq3w5jtgcqIPFOH

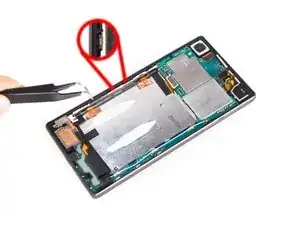

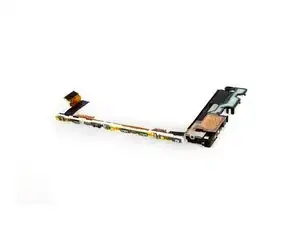

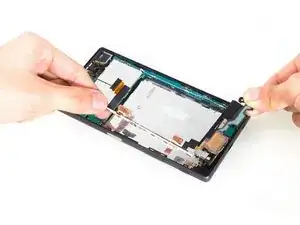

    • Löse vorsichtig die Kontakte der Knöpfe an der Seite. Achtung: Der Fingerabdrucksensor befindet sich hier, sei sehr vorsichtig beim Lösen. Anschliessend kannst du das ganze Bauteil entfernen.

    You can skip this step. Just fold over the bottom side from step 7 and you'll be fine. No need to take out the entire side part.

    Dennis Meerveld -

    Thanks my friend!

    Pedro -

  8. quKJJFDeoML1NrUe
    quKJJFDeoML1NrUe
    4gRhUDNVhMwWbnwX
    caThZOxUUXSvsPAa

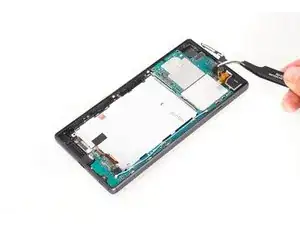

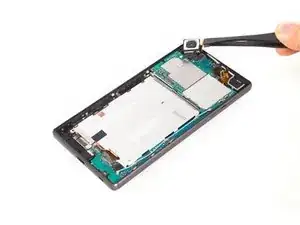

    • Entferne die Rückkamera.

    • Entferne die Sicherheitsabdeckung und dann die Frontkamera.

  9. xdRphOIjFcewhGXO
    xdRphOIjFcewhGXO
    QGRtHlROWvDCAStU
    SCmYR2tK2YdqvTIj

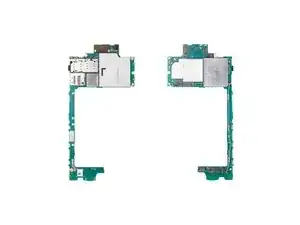

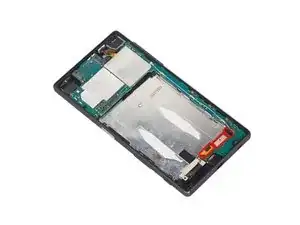

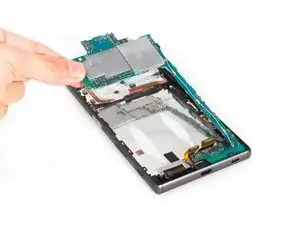

    • Löse die Stecker von LCD, Ladebuchse und Mikrofon.

    • Entferne die Hauptplatine.

    The model I was working on had a single screw on the MB (just above the blue cable at the top end of the phone). Make sure you don't try to remove the MB without taking this screw out first!

    Clems -

    remove the Motherboard sounds good but is as not easy as picture

    Elroy -

  10. mXMgDOgIdMJsynUJ
    mXMgDOgIdMJsynUJ
    6Fgc5W4iB2NCLEPd

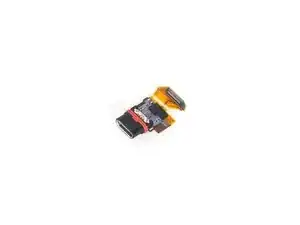

    • Entferne die Flexeinheit der Ladebuchse.

  11. PPL5KRnBD1h4ShC3
    PPL5KRnBD1h4ShC3
    S1kilaRmailStCrL

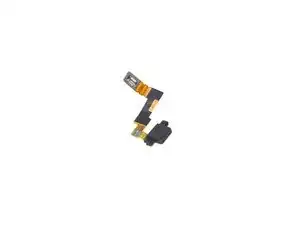

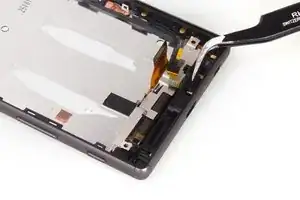

    • Entferne das Mikrofon.

  12. fgfEPe2vWtl2qYLY
    fgfEPe2vWtl2qYLY
    a5h3lwMeyDMILY6e

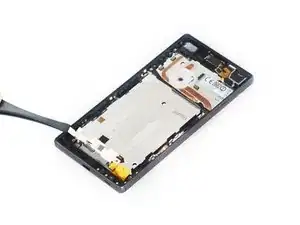

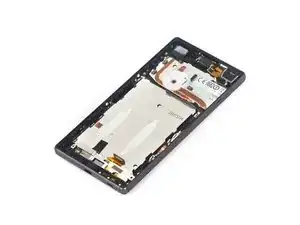

    • Entferne die Metallhalterung, welche das Flexkabel des LCD bedeckt.

  13. YVBc3oWpNaCj4CZJ
    YVBc3oWpNaCj4CZJ
    5NMmcsJqQMCZO15Z
    nNVdQMwllOC5QtWg

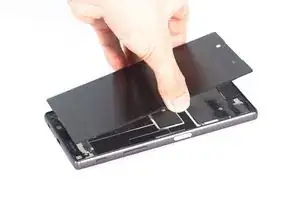

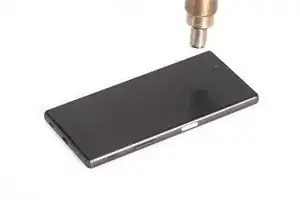

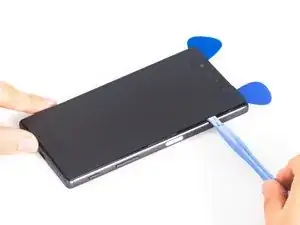

    • Die Klebeverbindung darunter ist sehr stark. Erhitze sie deswegen einige Minuten mit einem Heißluftgebläse.

    • Entferne das LCD sehr vorsichtig.

    • Arbeite besonders am unteren Rand sehr vorsichtig, damit dort nicht das Displaykabel beschädigt wird.

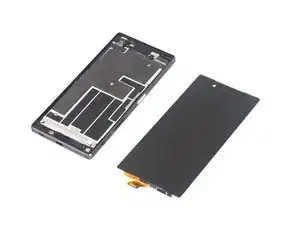

  14. DULMHD5yQqTdQts1

    • Das war's.

Abschluss

Arbeite die Schritte in umgekehrter Reihenfolge ab, um dein Gerät wieder zusammenzubauen.
