Sony Xperia Z5C Rear camera & Earpiece & Front camera Replacement

Geschrieben von: Witrigs
  • Kommentare: 4
Sony Xperia Z5C Rear camera & Earpiece & Front camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 Minuten - 1 Stunde

Einleitung

  1. V2xKuEilig4WLFX5
    V2xKuEilig4WLFX5
    QqImGGyI6SNw1lqV

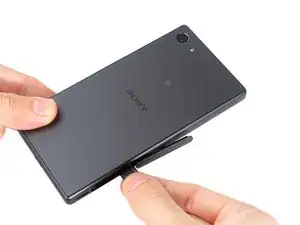

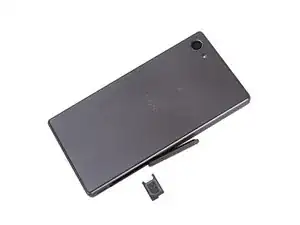

    • Power off and remove SIM card tray.

  2. BV4WQYFhoDiiaw1t
    BV4WQYFhoDiiaw1t
    3LvlYIZjYJcTTnJC
    ecSTYxU5ARVpsp16

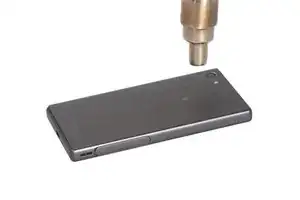

    • Heat up the back cover to soften the adhesive.

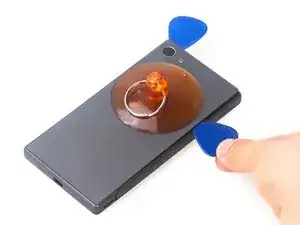

    • Place the suction cup to open a gap from top side, then insert guitar picks and slide it to cut the adhesive underneath.

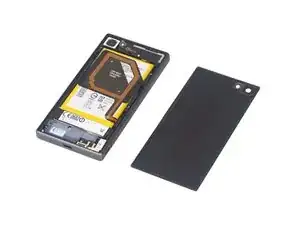

    • Remove back cover.

  3. NkOYY5sPOdsgoWqu
    NkOYY5sPOdsgoWqu
    eKdmqSwqDcOgtTuC

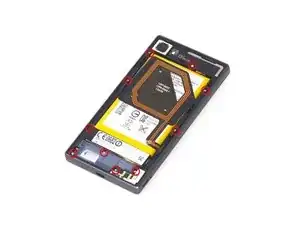

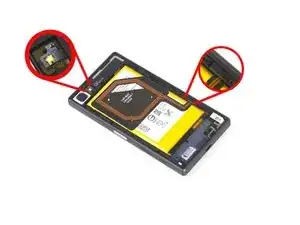

    • Twist off 10 Phillips screws all.

    • Loosen NFC clip and flashlight clip.

    On the NFC clip: Pull the hook on the top down to loosen the clip.

    Marco Graf -

    On the NFC click: look at Step 4 below, second picture and magnify the part with the NFC clip to get an idea how it needs to be loosened.

    On the flashlight clip: it is glued, so applying some heat helps.

    Helmut Neukirchen -

  4. 5o2waxUjCJyA6aFQ
    5o2waxUjCJyA6aFQ
    QNShJBfww6Jwmu5C
    DYkfNJBrGJewtwup

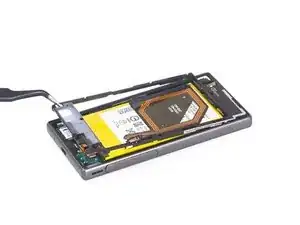

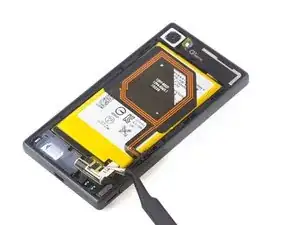

    • Remove the plastic bracket.

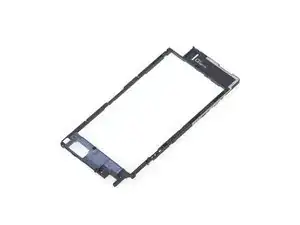

    • Pry up and remove back frame.

  5. uexsHBvcjUDTu2vQ
    uexsHBvcjUDTu2vQ
    XU1xQNGnGsdhXWjo
    oR6iYW6LrRWxGNWR

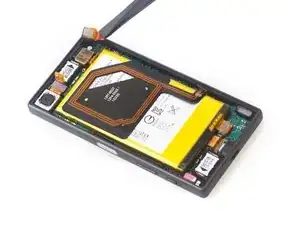

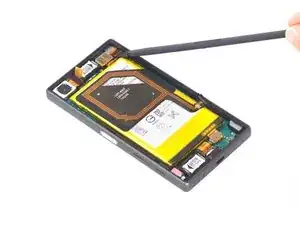

    • Remove front camera.

  6. SNRm2YBlhbIF2iwS
    SNRm2YBlhbIF2iwS
    4QPDIcIHS1ab2xBL

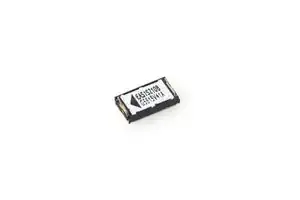

    • Remove earpiece.

  7. CmnHLGSTS3KJHGUM
    CmnHLGSTS3KJHGUM
    glJWDySiH33OVEX3
    VH6R2OONcXWYAAeT

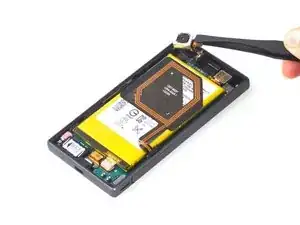

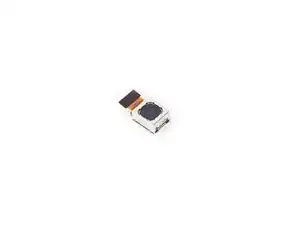

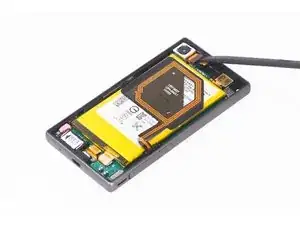

    • Remove rear camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Witrigs

Mitglied seit: 24/11/15

68627 Reputation

2 Kommentare

where i can get the plastic bracket? my plastic bracket is broke

Ranon Kusuma -

Step 4: the flash/lamp is lighly glued to the back frame. It must be delicately unglued off before the frame can be removed.

Frédéric Leroy -
