The disc might not spin because the Ribbon Cable has either gotten loose or is broken. Here we will show you how to replace it.
Werkzeuge
-
-

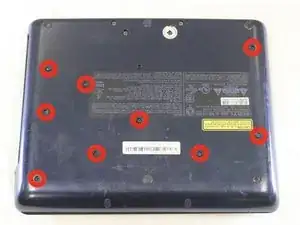

Flip the Sony BDP-SX1000 over so that the underside is facing up.
-
Remove the four 2mm Phillips #0 screws at the top of the device.
-
Remove the rest of the J0mm Phillips #0 screws from the device.
-
-
-
Take out the seals at the bottom and at the corners with edge of screwdriver. Remove the J0mm Phillips #0 screws under the seals.
-

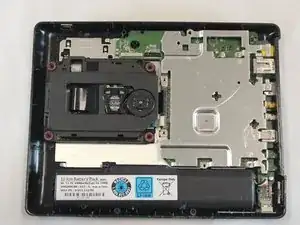

Remove the back lid of the Sony BDP-SX1000 so that you can now see the inside of the device. The two lids are attached by two wires. The small wire on right side of the top lid goes on right side of bottom lid or on the black connector. The big wire on left side of the top lid goes on left side of the bottom lid or on white connector.
-
-
-

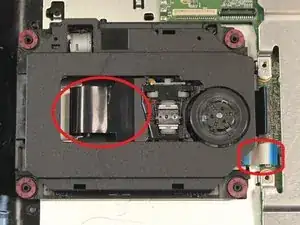

The ribbon cable is circled in the first photo. The tray identified by the rectangular frame holds the ribbon cable, laser lens, and capstan motor which rotates the disk. The tray is connected by the white ribbon, with blue stripes, to the white connector which is also circled in first picture.
-

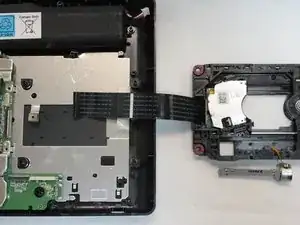

Detach the tray from the bottom cover by taking the small white ribbon out of the white connector.
-
-
-

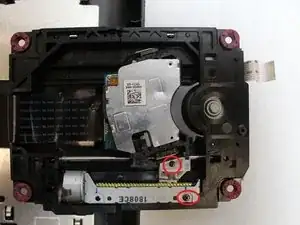

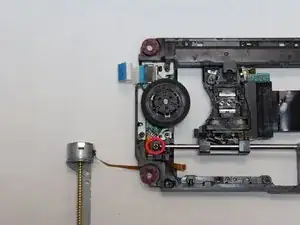

Remove the J0mm Phillips#0 screws shown in first picture to detach the slide motor from the laser tray.
-
Remove the white piece that attaches the laser lens to the slide motor and also take out the slide motor.
-
-
-

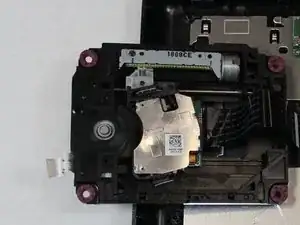

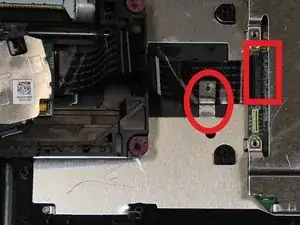

Using your finger flip up the black tab of the ribbon cable connector (this is shown by rectangular box in picture one).
-
Gently remove the ribbon. (Don't use screwdrivers to open ribbon connectors because that can cause damage to the pins).
-
Now remove the ribbon from underneath the metal circled in red.
-

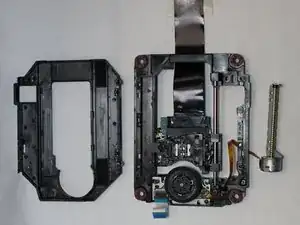

Remove the lid of the tray from the top as shown in image three.
-
-
-

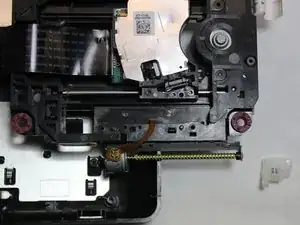

Remove the J0mm Phillips #0 screw which is shown in image one. This screw keeps the metal bar from sliding out. The laser lens is attached to this metal bar on one side and on the other side is the sliding motor.
-

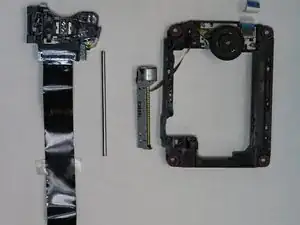

Slide out the rod from its placement. This will detach the laser lens and the ribbon cable from the tray.
-
To reassemble your device, follow these instructions in reverse order.
