Sophix TAB-730g Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 - 30 Minuten

Einleitung

This guide will show you how to remove the screen of the tablet if the screen is broken or cracked.

  1. Mh3cOCRnh2ctxxNy

    • Take off the screen protector and the screen on the tablet.

    • Wedge a plastic opening tool between the screen protector and the screen.

    • Using leverage, move the tool around the entire front face of the tablet in order to break the adhesion.

    • Continue until the top screen protector pops off.

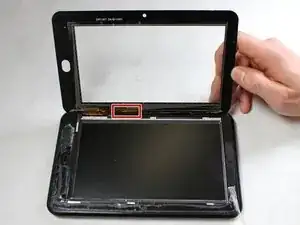

  2. bvBHNEpIUEWhft1O

    • The screen is attached to a ribbon cable in the lower left hand corner marked in the picture (see highlighted area in picture).

    • The back cover of the device will need removed before continuing.

  3. GgLCJ4aqkZ5WDU5s

    • Remove the back cover to gain access to the mother board.

    • Unscrew, with a 000 Philip's screwdriver, the 3.547 mm long screw located at the bottom of your tablet.

  4. QKedDVxIcBtpeJp5

    • Firmly slide the cover in the direction indicated by the arrow, away from the ports, with your hand to remove the back cover.

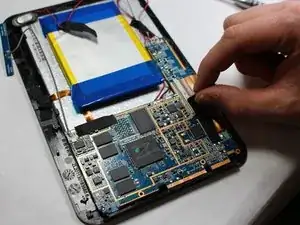

  5. INNLrwCi3qe2himw

    • Remove the tape covering the ribbon cable's (which connects to the front of the screen) insertion point on the back of the device.

    • This will allow you access to remove the ribbon cables that is hindering you from taking off the screen.

  6. usn6H1J2EDoImCEt

    • Remove the ribbon cable by placing your fingers on the outside of the ribbon closest to the port it goes into.

    • Flip the black switch up so the ribbon cable will be able to come out.

    • Gently pull the ribbon cable out of the port.

Abschluss

To reassemble your device, follow these instructions in reverse order.
