Einleitung
This guide will help you replace the display to a Acer Aspire One Happy Display
-
-

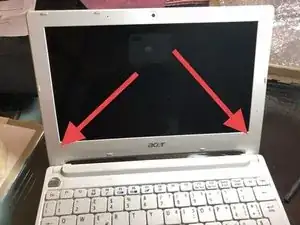

Remove the adhesive pads that covers 2 screws
-
Remove the screws that hold the front bezel to the back shell
-
-
-

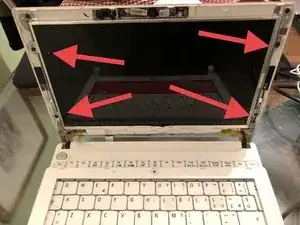

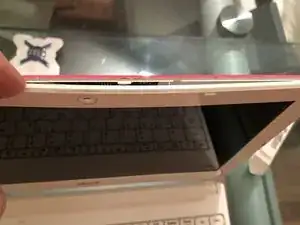

Using a thin tool , unclip the front bezel from the back shell, along side the perimeter. It holds by pressure clips that release upon touch.
-

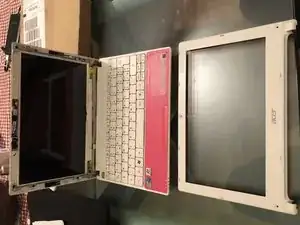

Remove the bezel
-
-
-
Remove the 4 screws that secure the LCD panel from the back shell
-

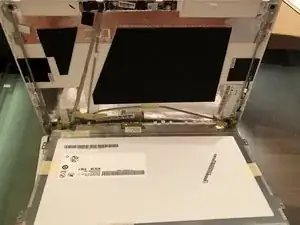

Place gently the display on the keyboard, minding any of the cables that may still be connected and the adhesive tape
-

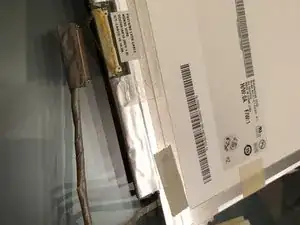

Disconnect all of the cables and remove the Display
-
Abschluss
To re-assemble your device, follow these steps in reverse order.
