SoundBot SB571 Speaker Grille

Geschrieben von: Yana
  • Kommentare: 1
SoundBot SB571 Speaker Grille

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 Minuten

Einleitung

Replacing the grille requires taking off the outside cover and unscrewing 14, 0.6cm screws. You will need a Phillips screwdriver, blue plastic opening tool and a new front metal cover.

  1. WZiiWwtRAwIGTecY

    • Before disassembling the speaker, make sure it is powered off.

    • Place the speaker on a flat surface.

    • Take your blue plastic opening tool and remove the plastic cover.

  2. lJBBXe4BZ2vYKMFB
    lJBBXe4BZ2vYKMFB
    p5IHgVOHnDHNgrLu
    ucZiBuHNUbGOEKxA

    • Orient the speaker so that the top is facing up.

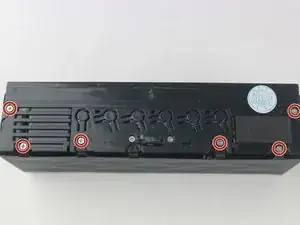

    • Using your Phillips PH0 screwdriver unscrew the 14, 0.6cm screws from the device along the speaker grille.

  3. KPCApKQxQqVwnVAh
    KPCApKQxQqVwnVAh
    cPHTkuJV12hr6Kc2

    • Reorient the speaker so the grille is facing you.

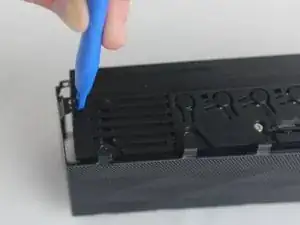

    • Using the blue plastic opening tool, prop open the metal grille.

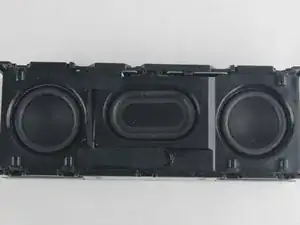

    • Now the speaker grille is completely removed from the device and it can be replaced.

Abschluss

To reassemble your device, follow these instructions in reverse order.
