Soundcore Liberty Air Charging Pins Replacement

Geschrieben von: Alyssa Punturo
  • Kommentare: 0
Soundcore Liberty Air Charging Pins Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 - 45 Minuten

Einleitung

The Soundcore Liberty Air Bluetooth headphones seem to have a common error that causes one of the earbuds not to charge. Before replacement, be sure to clean the charging pins and the charging contacts in the case.

  1. mlBJmlAZAfxJ563L
    mlBJmlAZAfxJ563L
    SXUbeRF3uHuUPl6D

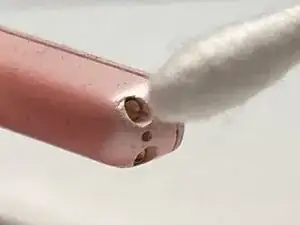

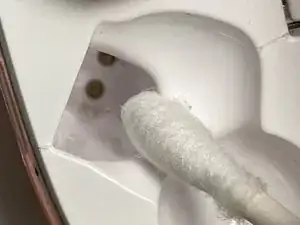

    • Clean the charging pins and case with a cotton swab.

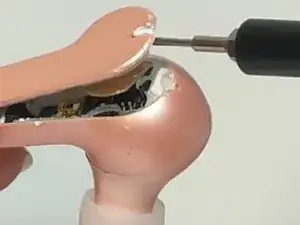

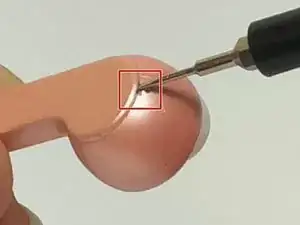

  2. D2JNRiKNIXLnfrMB
    D2JNRiKNIXLnfrMB
    ohsaRQBNvkMkNRNx
    FboqxNScMoSUEoAR

    • Remove the flat cover with a 1/16" punch tool by inserting it into the divot at the top of the earbud.

    • Be careful not to push too hard or upwards.

    • There is a lot of adhesive securing the cover, so using a mild heat will help loosen the adhesive.

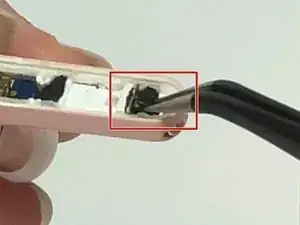

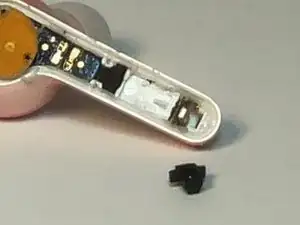

  3. GhqSgnH1TP2sWagM
    GhqSgnH1TP2sWagM
    EAJp6eBMYStXMNCe
    sZPNiFc3GIKBT1er

    • Remove the black rubber cross from the bottom of the earbud with angled tweezers.

    • Do not poke through the rubber.

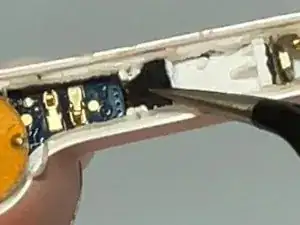

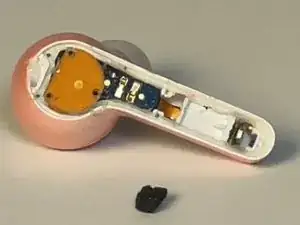

  4. Nhdshe4cb2q6w33N
    Nhdshe4cb2q6w33N
    IDbDW2mNZGSAa4XW
    rJPx2wk51PMyXXkM

    • Remove the top rubber rectangle with angled tweezers.

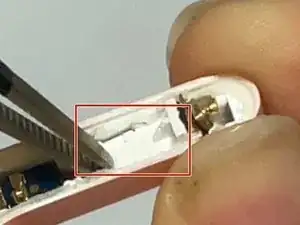

  5. uEmnXAPS1S6b3MFx
    uEmnXAPS1S6b3MFx
    oRrgWO1HpOuV3XWl
    qYTspGmYLuayT3gt

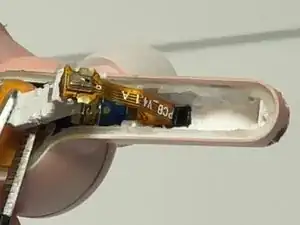

    • Remove the white block from the earbud with blunt tweezers.

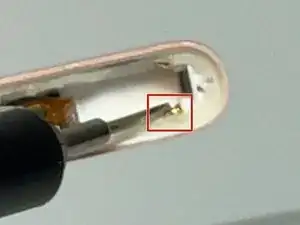

  6. 1xC2vyAwPJFOM5WL
    1xC2vyAwPJFOM5WL
    EbdH2HQKBvBnW3UL
    hDcDUVFQlPtCmXeB

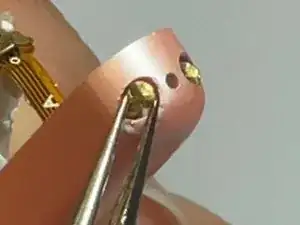

    • Push out charging pins with the 1/16" tool.

    • Pull out the rest of the charging pin with angled tweezers

  7. UUrSkjT5KCNSi2ux
    UUrSkjT5KCNSi2ux
    EmrD2Qb1nxudIOQ3

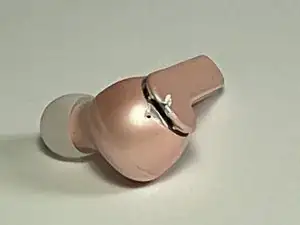

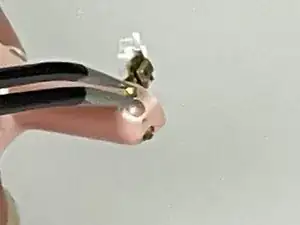

    • Replace charging pins with angled tweezers.

Abschluss

To reassemble your device, follow these instructions in reverse order. Make sure to add all black rubber squares back in the same position that you removed them in order for them to fit properly. Avoid getting any moisture in or around the device during the repair in order to prevent any type of water damage.
