Spark Test

Geschrieben von: Sam Omiotek
  • Kommentare: 0
Spark Test

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

15 - 30 Minuten

Einleitung

Follow this guide to use a spark tester to test the ignition system on a 2019 Echo Power Pruner model PPT-2620.

This procedure requires two people.

  1. CiL1OThalxMbyqls
    CiL1OThalxMbyqls
    nCZDRnZXFchn32G2

    • Flip the power switch into the STOP position.

    • Make sure the engine is cool to the touch before proceeding.

  2. 3HdPATFPD3MY3rNL
    3HdPATFPD3MY3rNL
    ysW6XDxASFFtNj4l

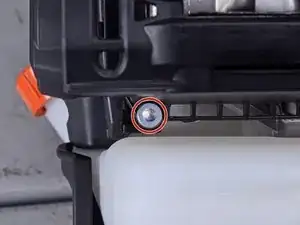

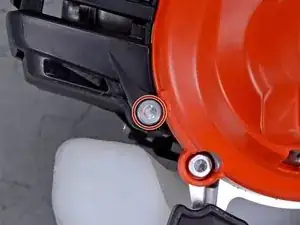

    • Use a T27 Torx screwdriver to remove the two screws securing the bottom of the muffler cover to the motor.

  3. hlxIXDMyfjy1beUk
    hlxIXDMyfjy1beUk
    UKTtqs21sKWXY1FT
    nkADoMMMMU5e6Fs5

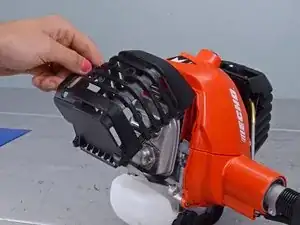

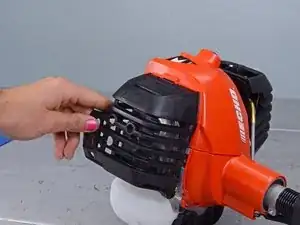

    • Tilt the muffler cover up, hinging along the top edge, until it can be removed from the motor cover.

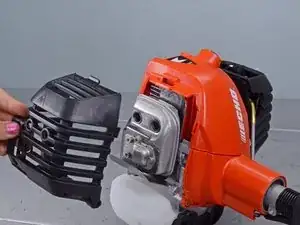

    • Remove the muffler cover.

  4. xEX4sCEufeXWxtNG
    xEX4sCEufeXWxtNG
    XiPGHC5Eo5QZLRrc

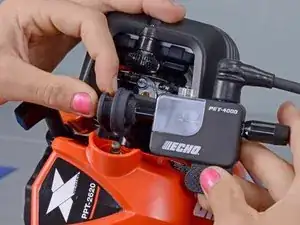

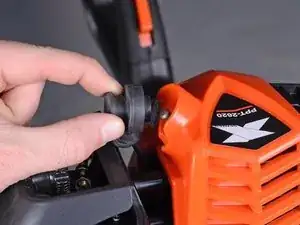

    • Pull the spark plug boot straight off of the spark plug.

  5. sTf6psDkHQSLqKIj
    sTf6psDkHQSLqKIj
    EkVPai3ZRmepeFhM

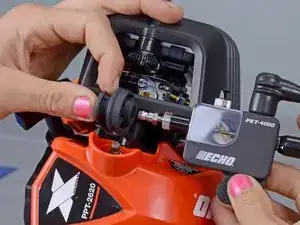

    • Connect the spark plug boot to the left terminal of the ignition checker.

  6. XZVpIXQBcFLfeERg

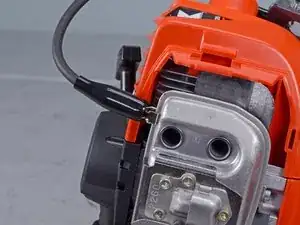

    • Connect the ignition checker alligator clip to a metal surface on the motor to ground the accessory cord.

  7. qhJvWZvPAmVMMXb1

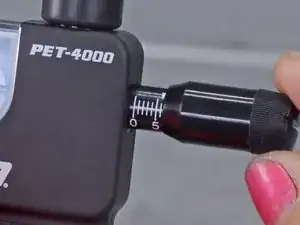

    • Set the spark gap to 6 mm by turning the spark gap adjustment knob counterclockwise.

    • Do not set the spark gap unnecessarily wide—a high voltage may damage the ignition coil.

  8. FAQHuKBYb6GQTiOW

    • Flip the power switch into the ON position.

  9. q3nvJYuXUCwJAnyA
    q3nvJYuXUCwJAnyA
    442n23CwEwEi2Ubp
    r6wDnTBWQWds1n6K

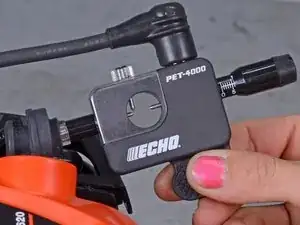

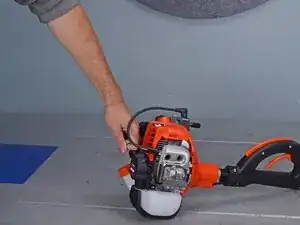

    • Hold the spark tester by the handle on the bottom. Do not touch the terminals or spark window while the test is being conducted.

    • Watch for a spark in the spark window while a second person pulls the starter to crank the engine.

    • Consult the ignition checker instruction manual to troubleshoot the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
