Speak And Spell Battery Contacts Replacement

Geschrieben von: bushing
  • Kommentare: 2
Speak And Spell Battery Contacts Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

1 Stunde

Einleitung

Never store an electronic device for long periods of time with batteries! Over time, alkaline batteries will leak and corrode any metal parts in your toy. The reality of the situation is that most old used toys (e.g. on eBay) that are broken can be fixed by repairing the corroded pieces; many times, this is as simple as repairing or replacing the battery contacts/terminals.

  1. ednUExDxqE3QUtHI
    ednUExDxqE3QUtHI
    N3c2JWbUWhQWtbJQ

    • Flip the toy over, so that the keypad is facing away from you.

    • Remove two Phillips-head screws.

    • Insert a plastic spudger (or 4!) into the marked holes, and push down and towards the edge to release each catch.

    • It's possible to release each catch one-at-a-time, but easier if you have 4 tools and do them simultaneously.

    • This requires quite a bit of force; be careful.

  2. N2HBpQkLGYRxUIXp

    • Separate the two halves of the case to expose the inner PCB, speaker and battery holder.

  3. wkjNu2vyxmJcln1K

    • This is one of the worst possible cases of battery terminal damage.

    • The negative terminal was corroded badly, but could be cleaned enough to be usable.

    • The positive terminal had already decomposed entirely; there was no metal left, and the wire was just hanging loose.

    • The bus strip is clipped into the plastic case; it broke upon removal and needed to be recreated from scratch.

  4. sUNEaZfD3XJpQHNK
    sUNEaZfD3XJpQHNK
    NytiatGC6tIbJa6y

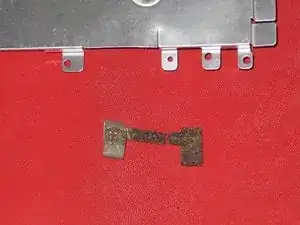

    • Time to get creative! We need a new bus strip to connect the two pairs of batteries in series.

    • The old, corroded terminals fell apart when I removed them, so I found some random scrap metal from another toy and made something similar in shape.

    • Some people use aluminum foil for this, but it is not very durable and will not apply spring-pressure to keep the batteries in place.

  5. yYJaEi5K1kHornXB
    yYJaEi5K1kHornXB
    c53pbbqHZAIi2Cpa

    • The old positive battery clip was completely disintegrated, so I made a new clip out of scrap metal and soldered the battery lead back on.

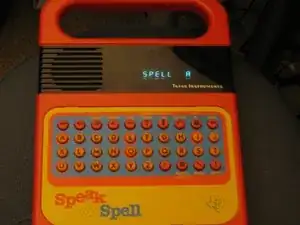

    • After our repairs, the device is as good as new!

Abschluss

To reassemble your device, follow these instructions in reverse order.
