Do you enjoy great sounds, but can't connect your iPod to your dock? Replace your motherboard with this easy-to-use guide. Clear some space though, you'll have a few small parts you don't want to lose.
-
-

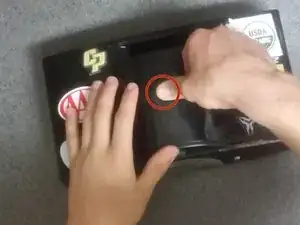

Remove the battery by pressing your finger down on the center button and twisting it counter-clockwise.
-

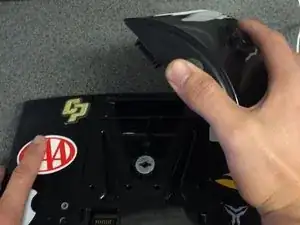

Remove battery and set it aside.
-
-
-

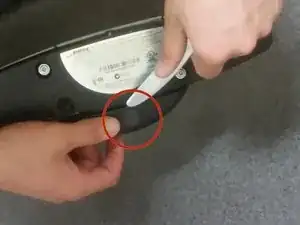

Use a plastic scraper to remove the rubber gasket from the bottom of speaker system and set it aside.
-
-
-

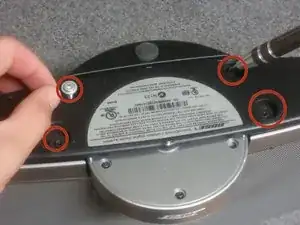

Use a standard sized Phillips Screwdriver to remove the four screws on the bottom of the speaker system.
-
-
-

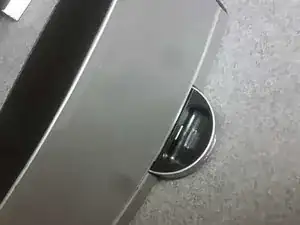

Using a smaller flat head screw driver, unscrew the semi-circle plate from bottom to expose the motherboard.
-
-
-

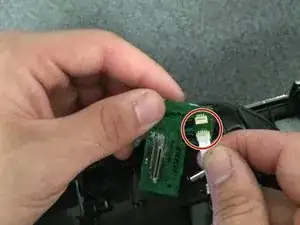

Replace it with new motherboard by plugging in the thinner wire into the small slot, and the larger wire into the wider slot.
-
Reverse steps 1 through 4 to reassemble dock.
-
To reassemble your device, follow these instructions in reverse order.
