Speed Switch

Geschrieben von: Dalton Johnson
  • Kommentare: 0
Speed Switch

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

Keine Schätzung

Einleitung

The purpose of this guide to provide simple and straight-forward instruction on replacing a damaged or jammed speed switch.

  1. SQNTeQyqtJ3W1bhT
    SQNTeQyqtJ3W1bhT
    CNFfPhVRMp1bmFal

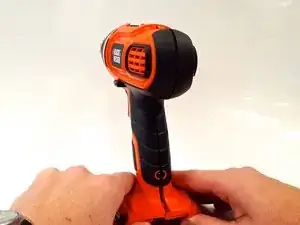

    • Use a phillips head screwdriver to unscrew the following 8 screws:

    • One 24mm Phillips screw

    • Six 16mm Phillips screws

    • One 9mm Phillips screw

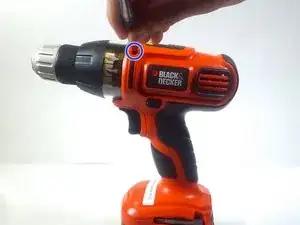

    • Turn the drill to the other side and unscrew the marked screw using the same phillips head screwdriver. Place it with the other removed screws.

    • Keep all screws organized on a magnetic mat after removal.

  2. kPWEgAbeayhmEt5a
    kPWEgAbeayhmEt5a
    wUXxa1kQDyZIqkSw
    VjgmoYnF4eYF4Erw

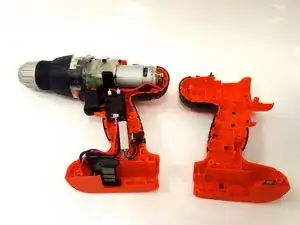

    • Carefully remove the plastic drill casing by pulling it apart.

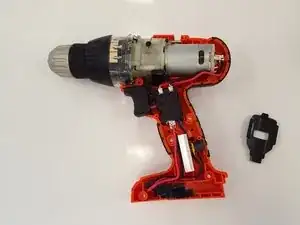

    • When separating the drill casing, the black plastic speed switch covering will be removed from the drill automatically.

  3. TciQuVFGuhF6KKRJ
    TciQuVFGuhF6KKRJ
    HvRIgSKBNcEFaOrn

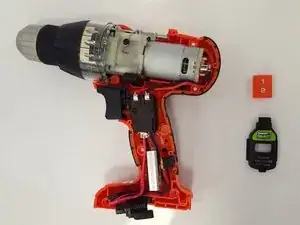

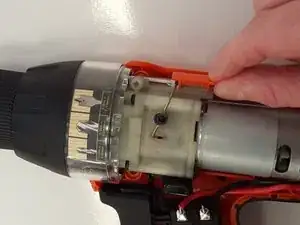

    • Gently remove the orange plastic speed switch from the drill. It is located right above the motor.

Abschluss

To reassemble your device, follow these instructions in reverse order.
