Step by step instructional guide to replacing Spin Master Hatchimal Draggle speaker. Before getting started, fur and wing removal is required.

  1. syhix2Zo3Pq3sqvh
    • lay the Hatchimal on its side.

  2. MpvlLrwT3BHlvRVi

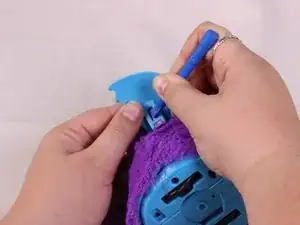

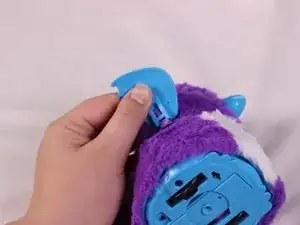

    • Using the plastic opening tool, push in on the purple clip.

  3. cyhUAGO1ncbUpVNk
    • Pull the wing off of the hatchimal.

    • The wing should come off with little resistance.

  4. uKkDjd2StgIMlLYv
    uKkDjd2StgIMlLYv
    5VTPcs6Dx6JmuosV

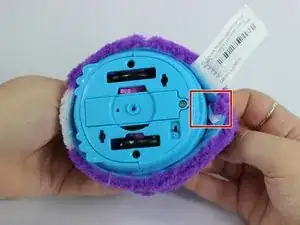

    • Cut the fur retaining zip-tie with a pair of scissors.

  5. bLIWPOOYErNqqwS2
    bLIWPOOYErNqqwS2
    yYInOrgPeKJmUOTs

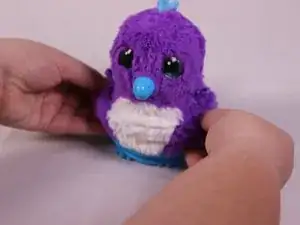

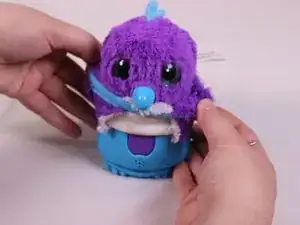

    • Lift the fur up until it can't go further.

  6. lCytN5AMqPLTRpFn
    lCytN5AMqPLTRpFn
    ERKtBQsqfdmNvEf3
    4aktqfOjaKKDCJ1f

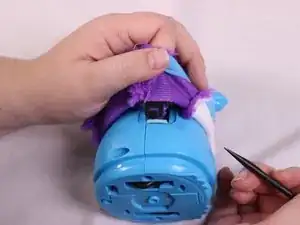

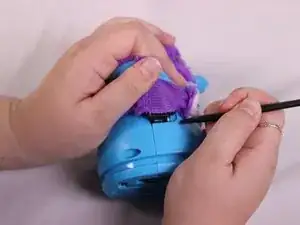

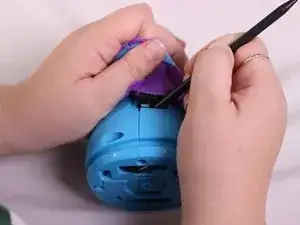

    • Use the spudger tool to push up on the black clip to free it.

    • Pull the clip out.

  7. exBCJICwo66SxMOO
    exBCJICwo66SxMOO
    HXxu2vZxTB6ZNrsf
    MHRtIOnJNPSWjN1Q
    • Lift fur up to reveal the next set of clips.

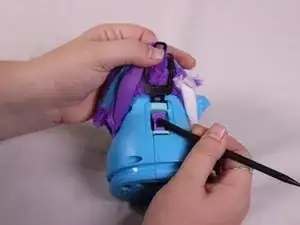

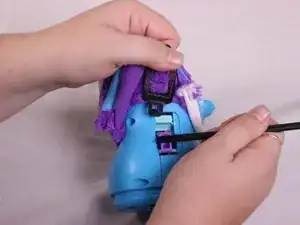

    • Insert a spudger to push up on the black clip to free it.

    • Pull out the clip.

  8. xAKevoEekWtOFAWr
    xAKevoEekWtOFAWr
    cJNp55FaVoxXKwHS
    • Lift the fur up and over the Hatchimals Head.

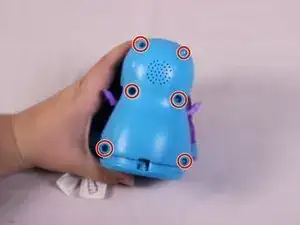

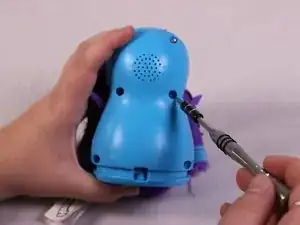

    • Remove the six 12mm Phillips #00 screws from then body.

  9. o15RYIAXhHZr2mIJ
    o15RYIAXhHZr2mIJ
    ZlWYSPGvRThYBpik

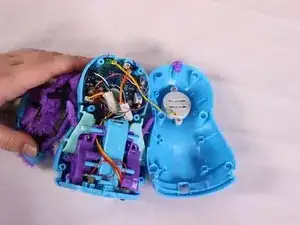

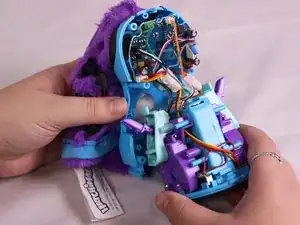

    • Pull the casing apart.

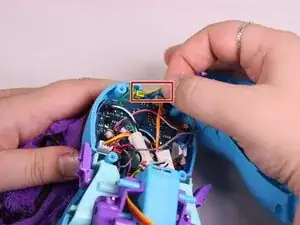

    • Remove the yellow speaker cable.

  10. TdYOmJRChEADo2sL
    TdYOmJRChEADo2sL
    pJaLpMWFGdJ5MIrp
    53g1yZV4IybeVktD

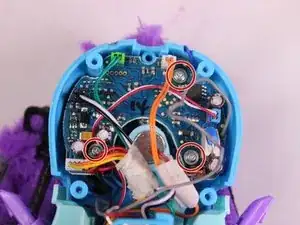

    • Remove the three 7mm Phillips #00 screws from the head.

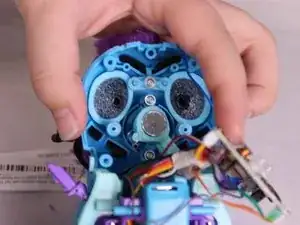

    • Remove the wheel base and the circuit board carefully not to damage the spring.

  11. tbeixCmB1ia4P5Ob
    tbeixCmB1ia4P5Ob
    kNh6Scb3G3nCbOqH

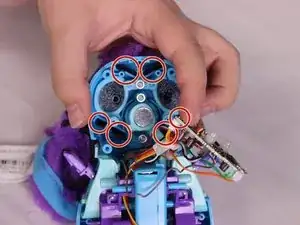

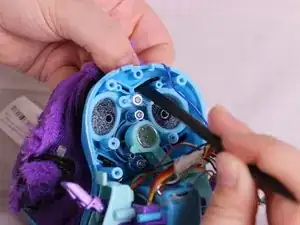

    • Push the six black fur clips out using the spudger.

    • Remove the fur completely.

  12. njbscxGYdVeZaXDd
    • Gently pull the yellow speaker cord from circuit board. There will be little resistance.

  13. ldhSklUSbBEOINEv
    ldhSklUSbBEOINEv
    O6tYKPEoTdKevF2N

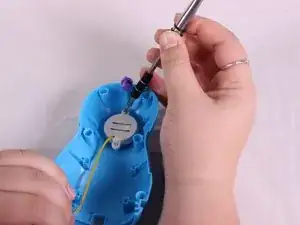

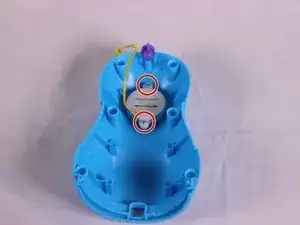

    • Remove the two 7mm Philips #00 screws from the head.

  14. m5Wm6VSLViRVP5jL
    m5Wm6VSLViRVP5jL
    D1RJlTautgOJcAbg

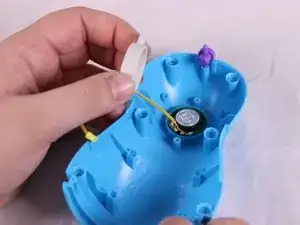

    • Pull the speaker cover off.

    • Remove the speaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.
