Sprout Channel Cubby Digitizer Replacement

Geschrieben von: David Meyers

Kommentare: 8

Sprout Channel Cubby Digitizer Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

5 - 20 Minuten

Einleitung

When the screen cracks but keeps displaying video, the digitizer (cover glass) needs replaced. The screen and the digitizer are extremely fragile and should be taken out with extreme care.

Werkzeuge

Schritt 1

Use an opening tool to push in and release sixteen small plastic clips around the edge of the case. As the clips are released, gradually pry the case apart.
It is easiest to start on the corners.

I'm not sure what's wrong with ours. The color started fading and the picture looked strange. If I pressed the cubby firmly together it would work for a little while. Now I can't get that to work either. Could it just be a loose connection?

thisnotbiznas - 09/02/16

Check the connection for the LCD at the motherboard. Lift up the latch to release the cable, remove and reinstall the cable, and then close the latch again.

Stephen Martinez - 14/06/16

Where do I find the LCD connector? My screen is very dim but works.

tnsimons - 09/03/17

Schritt 2

Once opened, carefully peel back the black electric tape around the digitizer.

Schritt 3

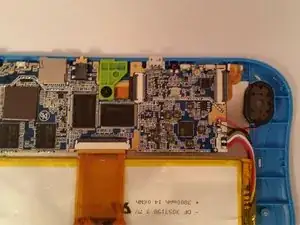

Unclasp the electrical plastic strip by gently pulling up on the white colored clasp.

Schritt 4

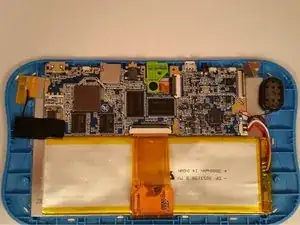

Unscrew the five screws holding down the motherboard.

Schritt 5

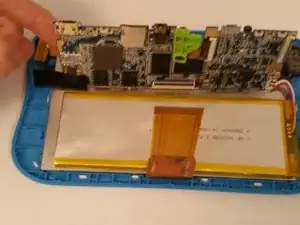

Once all five screws are removed, you should be able to lift up the motherboard.

I leave the motherboard and battery in place when replacing the digitizer. You only need to unscrew the motherboard to be able to lift it up enough to access the screw that is sometimes install in the front bezel. After you remove the 4 or 5 screws from the bezel, you can pop off the bezel and replace the digitizer with the LCD still in place. You just have to be careful to not damage the LCD while removing the digitizer.

Stephen Martinez - 01/07/16

Schritt 6

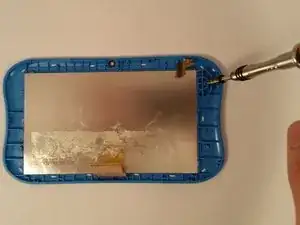

Remove the four remaining screws.
This can be done with the battery still attached but is easier if it is unattached.

Schritt 7

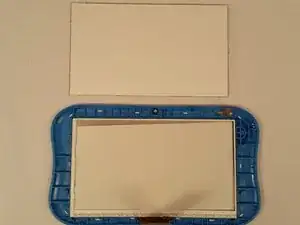

Remove the metal sheet covering the screen and digitizer.
Removing the screen is a very fragile process and needs to be done slowly. The nylon spudger is the best tool for this.

Schritt 8

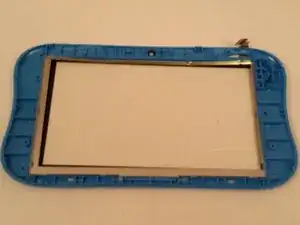

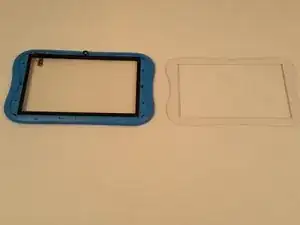

Remove all of the white pegs located along the perimeter of the plastic. You'll need to remove all of the pegs to remove the white front face.

Schritt 9

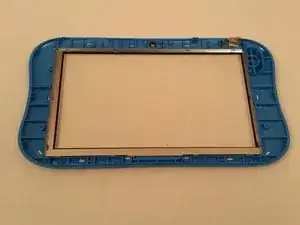

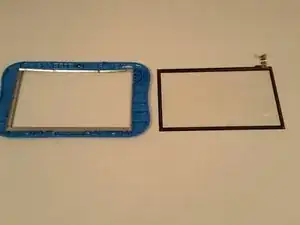

To take out the digitizer, remove the connector ribbon from the plastic and then slowly apply pressure to the corner and edges of the digitizer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
