Einleitung
The replacement for the speaker is rather simple. However, soldering is necessary when attaching the new speaker.
Werkzeuge
-
-

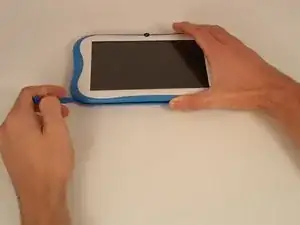

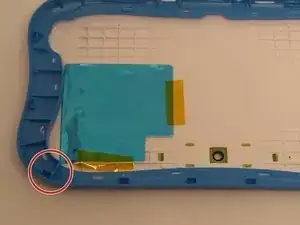

Use an opening tool to push in and release sixteen small plastic clips around the edge of the case. As the clips are released, gradually pry the case apart.
-
-
-

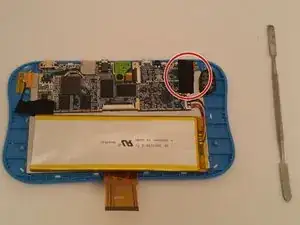

While using the spatula, slowly get under the top part of the speaker. Then slowly move down the speaker to detach it from the device (there is a small amount of adhesive).
-
-
-
Remove black tape.
-

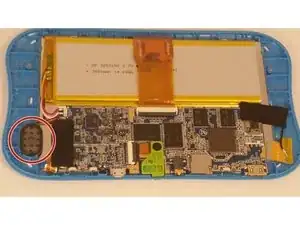

Disconnect the red and black wires which are soldered to the device. Make sure to not remove the wires that connect to the battery.
-
Replace the speaker.
-
Follow the steps in reverse order (be sure to solder the wires correctly) to install it.
-
To reassemble your device, follow these instructions in reverse order.
