Spy Gear Video Walkie Talkies Top Cover Replacement

Geschrieben von: Adam Kinnett
  • Kommentare: 0
Spy Gear Video Walkie Talkies Top Cover Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

8 Minuten

Einleitung

  1. aqqr1oMtuFfMTjUC

    • Remove the battery cover by removing the P1 Philips screw.

    • Remove the 3 AA batteries by hand.

  2. RngB5VdRIKOdYe41

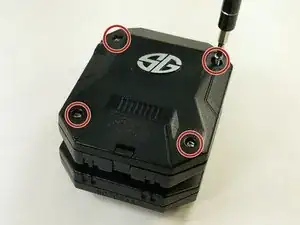

    • Unscrew Top Cover with a 3mm Triangle driver bit from the Driver Kit.

  3. LRUsMefVVydyWrUK

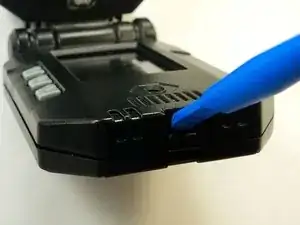

    • Use Opening Tool to release barbed latch on top cover.

  4. IyWEFrty5TQnfcaB

    • Release pilot studs near the hinge with Metal Spudger.

  5. gvympCqs6ZMkIw5O

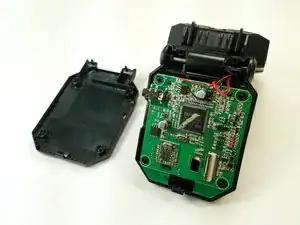

    • Once the Top Cover is free, you will have full access to the circuitry.

Abschluss

To reassemble your device, follow these instructions in reverse order.
