Einleitung

Are you getting bored with the look of your Stratocaster guitar? Do you want to make your guitar stand out from the crowd? Or is your old pickguard scratched, knicked, or covered in sticker gunk? If any of these are true to you, simply updating your pickguard will help you solve all of these issues.

The pickguard is the piece of plastic on the body of the guitar that protects the body paint from scratches due to excessive playing. The Stratocaster’s unique design accomodates for both the pickups and the controls to all be mounted on to one piece of plastic, which makes the replacement of it straight forward.

Pickguards themselves can cost between $20-$100 and sometimes even more expensive depending on the material. A regular 3-ply plastic is recommended, but the design and color is preference. Fender is a good brand for this and they’re products are fairly affordable.

For this guide I used a 1997 Squier Affinity Series Stratocaster and a Fender Tortoise Shell Pickguard.

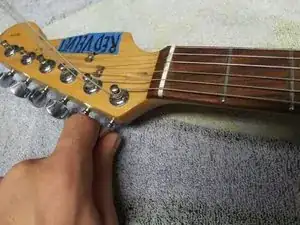

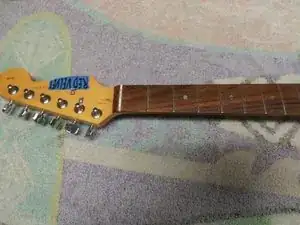

  1. viBVKUs6ZWvZiVCA
    viBVKUs6ZWvZiVCA

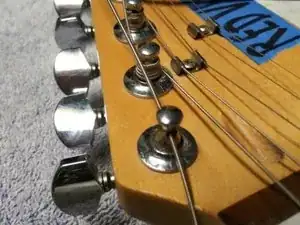

    wJsVEbfTCLISIKt5
    hDuoPSKV5EEMVvGk

    • Remove the strings by loosening the tuners on the head of the guitar so the strings become loose. After they are loose you will be able to pull them through each tuning head and bend them away from your guitar so that they are not a hazard as you are working.

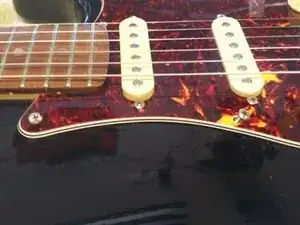

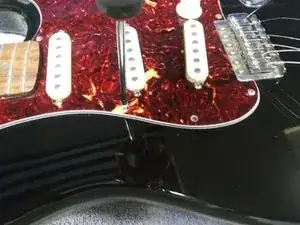

  2. IuX2aPYSNRuRWjoO
    IuX2aPYSNRuRWjoO
    DIvvtDGbmhswdZPA

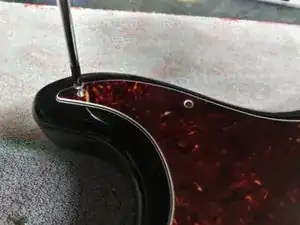

    oSVlBldqwSGnDnDI

    • Remove the screws along the outer edge of the pickguard. Once removing all the screws from just the edge if the pickguard, the pickguard will become loose.

    • Be careful not to pull the pickguard completely off the guitar, because all of the wiring is still connected to the pickups, knobs, and switch.

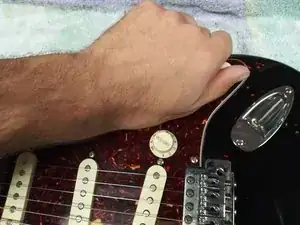

  3. qRyhkjyQ2SSSmcOT
    qRyhkjyQ2SSSmcOT

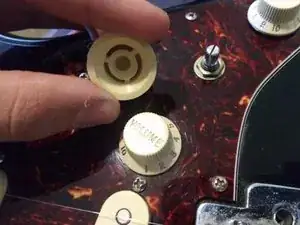

    5W5qNMAEpQ6tET3s

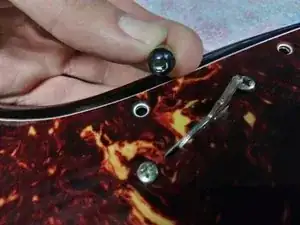

    uFI6rWZrtyrYtrUP

    • With the pickguard free but still in it's original position, pull the knobs off of the pots. This can be done by simply pulling them directly up from the body.

    • If the knobs do not come off easy, use only a soft pliable material, such as a plastic bag, cloth, or piece of cardboard to wedge underneath the knob. Wrap the piece around the knob and you will be able to get a better grip of the knob and you will be less likely to break the pot.

    • Remove the plastic top of the selector switch by pulling it directly up from the body, just like the knobs.

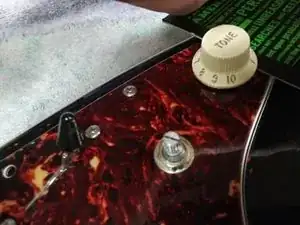

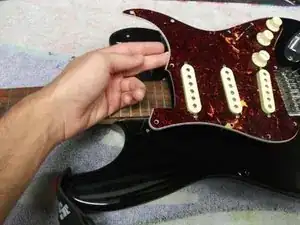

  4. 23HsN5XY1mA4MMPb
    23HsN5XY1mA4MMPb

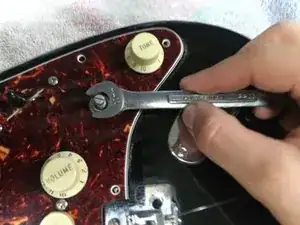

    xEoeTPogLV43HfQk
    mG5sY5XKOtL6mkPl

    • Using a Phillips screwdriver, remove the two screws holding in the selector switch.

    • With an 11mm Wrench, remove the screws from the tops of the pots. Be careful to hold the bottom of the pot while doing this in order to prevent wires from tearing.

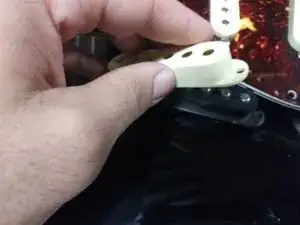

  5. dGYKNXY5wR5RENMo
    dGYKNXY5wR5RENMo
    JcMrJCjYiwVfZ6E3
    4PNiIIyN6M6QxqpN

    • Lastly remove the pickups from the old pickguard. Do this by loosening them all the way with a Phillips screwdriver.

    • Be careful not to lose any springs, as they are sandwiched in-between the pickguard and the pickups.

    • Repeat for all three pickups. If your guitar has a humbucker pickup in the bridge position, this may be different for that pickup.

  6. odvQkhHKMTlckWMU

    • Repeat these steps in reverse in order to reassemble the guitar.

    • Depending on your particular make and model of Stratocaster, the holepattern on your guitar may be different than the pickguard. If so drill holes as needed in order to place screws in the outer holes.

Abschluss

To reassemble your device, follow these instructions in reverse order.
