Staples 34462 Electric Pencil Sharpener Cutter Replacement

Geschrieben von: Jen Hawkins
  • Kommentare: 3
Staples 34462 Electric Pencil Sharpener Cutter Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

30 Minuten

Einleitung

If your pencils are not properly sharpening, the problem could be a dull or worn cutter. This guide will show you how to replace the cutter component of your Staples 34462 Electric Pencil Sharpener.

  1. YNVBdBB4NHvkkWTU

    • Pull out the shavings tray from the pencil sharpener.

    • Beware of loose pencil shavings falling on your workspace.

  2. oXTITCMFANaw6Mes

    • Turn the pencil sharpener on its side.

  3. 5ojCORO2GlMVBIHj

    • Using a Phillips00 screwdriver, remove the two front 11.6mm screws.

    • Using the plastic opening tool, remove the back plastic feet.

    • After removing the back plastic feet, using a Phillips 00 screwdriver, remove the two back 11.6mm screws.

    • The hole is deeper than you may think. It may take some time to get the screwdriver to click in.

  4. Q44EkJIPcC6lXRFj

    • Carefully pull apart the bottom panel from the top panel.

    • Be careful not to pull too forcefully as the panels are connected by wires.

    • Beware of pencil shavings falling out onto your workspace.

  5. HhEkUSPrGXIblnHC

    • Using a Phillips00 screwdriver, remove two 8.9mm flat edge screws from the top section of the top panel.

  6. 4Tr2JvUy4iTnLsCM

    • Using a Phillips00 screwdriver, remove two 10.3mm screws from the middle section of the top panel.

  7. lBWPpGXHMhxhOXRq

    • Carefully pull the cover from the top panel and set it aside.

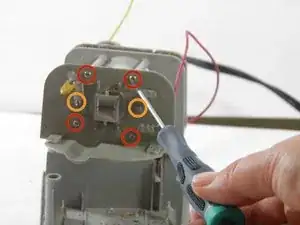

  8. cn4Xwxovf1Mxat3Q

    • Orient the top panel so that the sensor bracket is facing you.

    • Using a Phillips00 screwdriver, remove four 10.42mm screws.

    • Using a Phillips00 screwdriver, remove two 6.96mm screws.

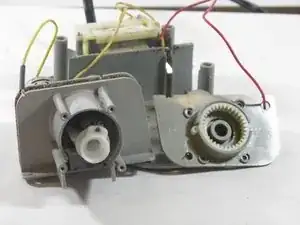

  9. HHhBb6MLVacNJlWv

    • Pull out the outside cover to remove it from the cutter chamber and set them side by side.

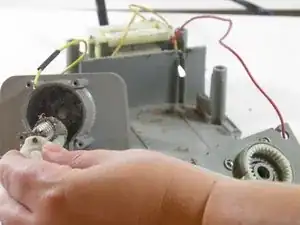

  10. FZdWBRPqIwQsrRas

    • Carefully pull the cutter out of the cutter chamber.

    • Beware of pencil shavings and debris.

Abschluss

To reassemble your device, follow these instructions in reverse order.
