Staples 34462 Electric Pencil Sharpener Power Cord Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

10 Minuten

Einleitung

If your pencil sharpener will not power on, there may be an issue with the power cord. See our troubleshooting guide for more information on this problem. If your power cord turns out to be the problem, then follow these steps to replace it.

  1. YNVBdBB4NHvkkWTU

    • Pull out the shavings tray from the pencil sharpener.

    • Beware of loose pencil shavings falling on your workspace.

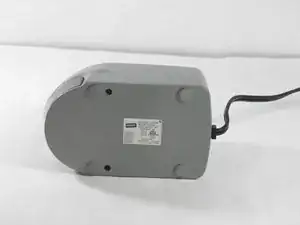

  2. oXTITCMFANaw6Mes

    • Turn the pencil sharpener on its side.

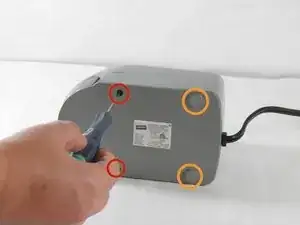

  3. 5ojCORO2GlMVBIHj

    • Using a Phillips00 screwdriver, remove the two front 11.6mm screws.

    • Using the plastic opening tool, remove the back plastic feet.

    • After removing the back plastic feet, using a Phillips 00 screwdriver, remove the two back 11.6mm screws.

    • The hole is deeper than you may think. It may take some time to get the screwdriver to click in.

  4. Q44EkJIPcC6lXRFj

    • Carefully pull apart the bottom panel from the top panel.

    • Be careful not to pull too forcefully as the panels are connected by wires.

    • Beware of pencil shavings falling out onto your workspace.

  5. HhEkUSPrGXIblnHC

    • Using a Phillips00 screwdriver, remove two 8.9mm flat edge screws from the top section of the top panel.

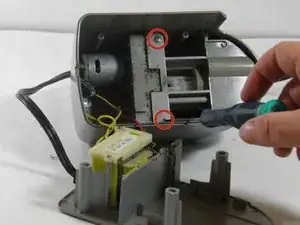

  6. 4Tr2JvUy4iTnLsCM

    • Using a Phillips00 screwdriver, remove two 10.3mm screws from the middle section of the top panel.

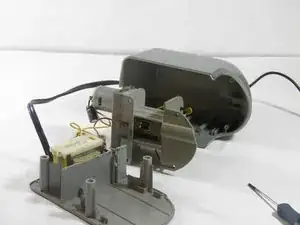

  7. lBWPpGXHMhxhOXRq

    • Carefully pull the cover from the top panel and set it aside.

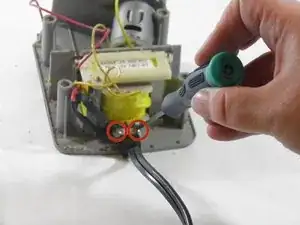

  8. 3sBJt5STVyycGDnu

    • Orient the panel with the power cord so that it is facing you.

    • Using a Phillips00 screwdriver, remove the two flat head 8.95mm screws securing the cord.

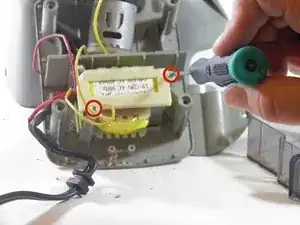

  9. bDn2Gb6GXtZyTCPL

    • Using a Phillips00 screwdriver, remove the two 10.42mm screws on the plastic frame securing the power component.

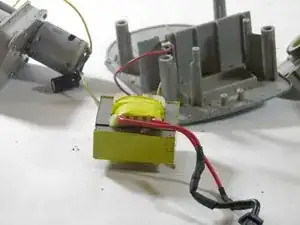

  10. IRABGWrb3kDZ2Y1f

    • Carefully lift out the power component from the panel.

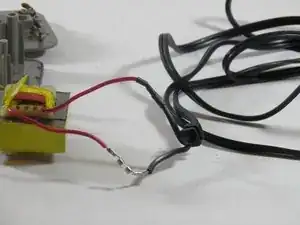

  11. HtbRmuAEuYjTTRiA

    • Use a utility knife to cut the black insulation tape from the wire.

    • Cut the power cord from the wires to remove it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
