Starbucks Barista Pump Replacement

Geschrieben von: Alex
  • Kommentare: 19
Starbucks Barista Pump Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

30 - 45 Minuten

Einleitung

The pump is used to take the water from the reservoir to the portafilter and steam wand.

  1. vBxb1SwTM4TLvZrJ
    vBxb1SwTM4TLvZrJ
    23wMk4qRqAGAWe22
    urUpSW1eSx4CcASV

    • First remove all six screws on the back panel.

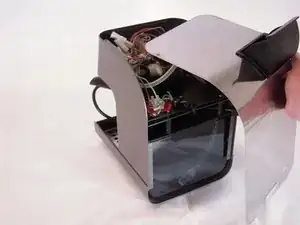

    • Remove the back panel, then set it aside.

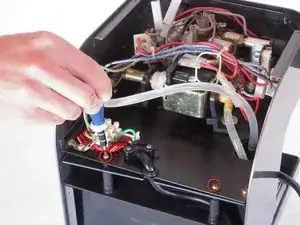

    • Remove the two screws holding the bottom panel in place.

    • Remove the bottom panel, then set it aside.

    Where can I purchase a new pump from?

    Tawana Nicole Simmons -

  2. THy1eFHvC6fv2x2T
    THy1eFHvC6fv2x2T
    cZCBu5yU3Dn6WSF2
    edUS6TTEMnkLQTWH

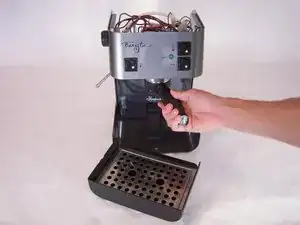

    • Pull the drip tray out, then set it aside.

    • Turn the brew unit clockwise to unscrew.

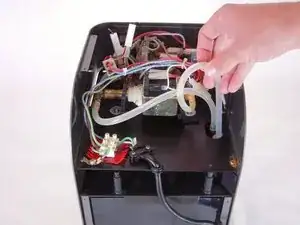

    • Pull the tube that goes into water reservoir out.

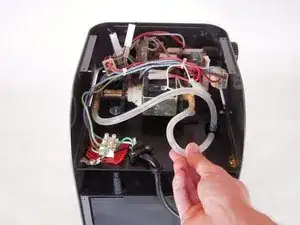

    • Slide the water reservoir out through the front of the barista to remove it.

    • Remove the top tray from the backside.

  3. lNWj2DPAWBDg2pBh
    lNWj2DPAWBDg2pBh
    QI4FKp5NoqRXsweS
    CHM6qveEcOkySCS2

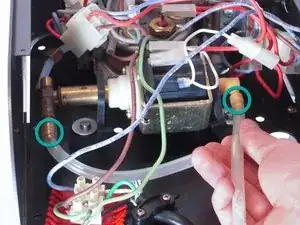

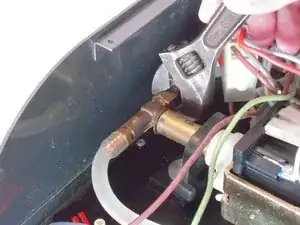

    • Use an adjustable wrench to unscrew the connection tube between the pump and the boiler.

    • Pull off both tubes connecting on each side of the pump.

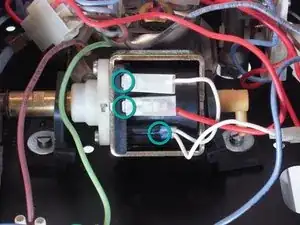

    • Remove the 3 electrical connectors from the pump.

  4. MWto6LCYBJNMJf46
    MWto6LCYBJNMJf46
    kdANUEmU4OGiW3JS
    aFDWIoYXhP1V4W5d

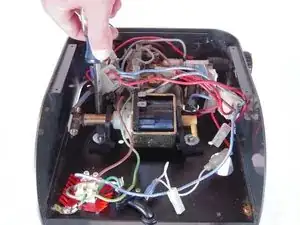

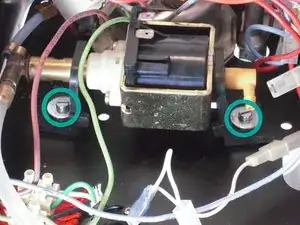

    • Unscrew the two mounting bolts.

    • Remove the pump unit from the Barista.

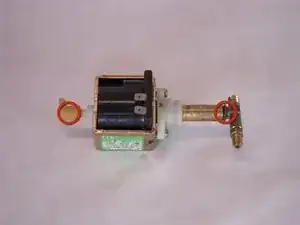

    • Pull off the yellow end of the pump and unscrew T-shaped end.

    • See the links section of the device page for where to purchase a new pump.

    I went to a link with a picture of the exact pump and model number. What came was a label free pump which is not and exact replacement. There is an o-ring which makes the seal between the tee and the pump so order a new one while you’re at it. The new pump is lacking the o-ring retention groove/recess in the tip of the pump’s brass output where the tee screws in. Since this is flat, the o-ring pinches out and sprays a fine stream out of the joint between the brass tee and the pump output stem. I will be calling them in the morning.

    Model EA Type EAX5

    https://www.amazon.com/gp/product/B00UCH...

    macg -

Abschluss

To reassemble your device, follow these instructions in reverse order.
