Steam Link Disassembly

Geschrieben von: Jorys Paulin (Jorys_Paulin)
  • Kommentare: 4
Steam Link Disassembly

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

This guide will walk you through the disassembly of the Steam Link device made by Valve from 2015 to 2018

  1. t1cOPn5VGjbXNRZc
    t1cOPn5VGjbXNRZc
    PmZjx6sV4kkxI12b

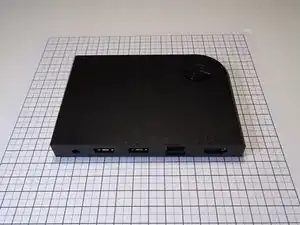

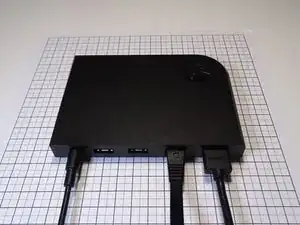

    • Start by unplugging your device

    • Power cord

    • Ethernet

    • HDMI

  2. fMFg5KTWC2LbbrEo
    fMFg5KTWC2LbbrEo
    PfLmKHuOToSMLe6N

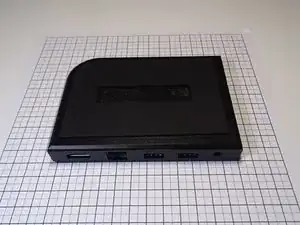

    • Start by removing the rubber bottom using the Guitar Pick or the Jimmy

    • The first time, the adhesive may be difficult to remove

  3. bPROI6sUF6WwARmr
    bPROI6sUF6WwARmr
    RB6tTJJ3bl4cBOBd

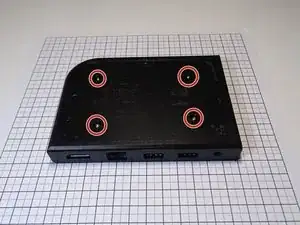

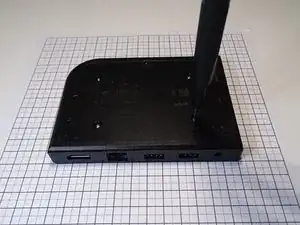

    • Remove the screws using a Torxx 6 bit

  4. acAfbsIqxu5G3cJK
    acAfbsIqxu5G3cJK
    LwwWkZp2wRYWsGdT

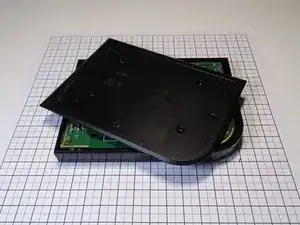

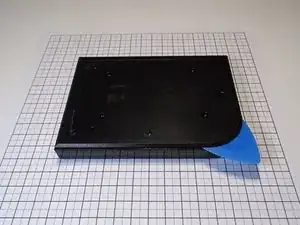

    • Open-up the bottom lid using guitar pics

    • The first time you open it, it might be difficult to open. Start by reaching the rounded, bottom-right corner

  5. iupGKidgWaSkPAaZ
    iupGKidgWaSkPAaZ
    1aTDZ2d11EXeFwCm

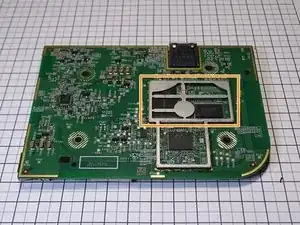

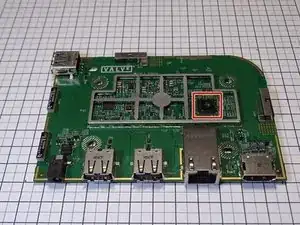

    • Marvel ArmV7 CPU

    • Vivante GC1000 GPU

Abschluss

To reassemble your device, follow the steps in the opposite order
