Einleitung
If the mute button is stuck or has stopped working this is a replacement for the key cap on it.
Caution: Ensure hands are dry. Moisture could mess up the wiring. Be gentle and remove necessary pieces carefully to not break the device.
Werkzeuge
-
-

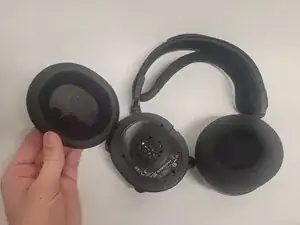

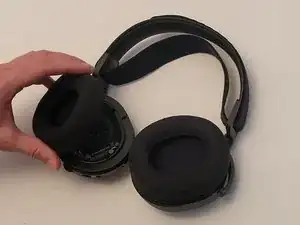

Remove the ear cushion by pulling the edge up and towards yourself
-
Repeat this motion all the way around the ear cushion until it comes free
-
-
-

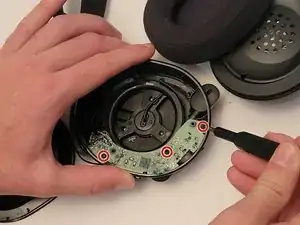

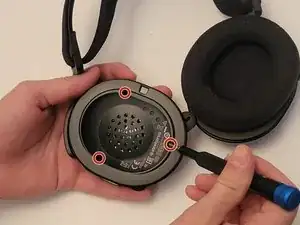

Use a Phillips #0 screwdriver to remove the 3 case screws.
-

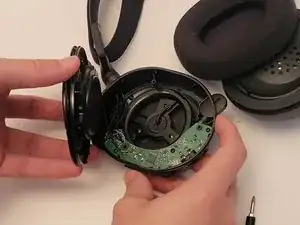

Remove the driver assembly from the rest of the housing
-
-
-

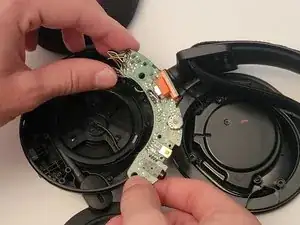

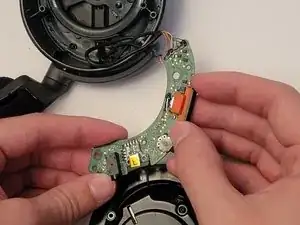

Remove the circuit board by pushing the scroll wheel out of the board and pulling it from the other side.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
