Steelseries Rival 700 Gaming Mouse Disassembly

Geschrieben von: Vincent Monteil
  • Kommentare: 12
Steelseries Rival 700 Gaming Mouse Disassembly

Schwierigkeitsgrad

Easy

Schritte

10

Zeitaufwand

5 Minuten

Einleitung

  1. D22KIWrHdcJCMgcJ
    D22KIWrHdcJCMgcJ
    V2Ovc4dhbrjHZBNB

    • To avoid electronically damaging either your computer or your mouse, unplug the usb cable from its socket.

  2. CIAhDKKAHLI6bP4r
    CIAhDKKAHLI6bP4r
    HSsRQnwybD2MlrPV
    pN2CUxHRsCRsAiCH

    • The Rival 700 mouse is a non wireless mouse. The micro-USB cable end is an elbow socket, secured by a plastic clip.

    • To disconnect the cable from the mouse, firmly press the plastic clip using your thumb

  3. RagJxwMOX1ZgIckm
    RagJxwMOX1ZgIckm
    SNDkliqK4Ot6QOG5

    • The original nameplate is a soft rubber one that can be removed just by pulling it softly out of its socket.

    • WARNING: When reassembling, if you're using a custom nameplate that may not be as stretchable as the original one, insert it softly, and use a lime tool on the new part to avoid damaging the mouse socket.

  4. 6BdNrsIN1MciGENx

    • You will be able to download the 3D files to design a custom nameplate on the Steelseries website. The link is also provided in the part description.

    • On this picture, the original "RIVAL" nameplate will be replaced with a new one on which i just had my Twitch ID printed.

    • Be creative, use colored plastic, put logos and drawings on your mouse.

  5. EvFw4EvTIkgJXTRc
    EvFw4EvTIkgJXTRc
    GE2aRLUJuytDBacB
    K2XPoiqrRfObGBDx

    • Use both your index and thumb to gently pry the top cover out from the mouse.

    • This part is a thin plastic one which needs a certain amount of strength to be removed. Be careful not to break it.

  6. 2LZmqD4fAp3o5oKe

    • Steelseries sells a set of two different covers to replace the original one, with a sweat-resistant one f.e.

    • Check the parts section for the purchase link.

    • On the left, you can see on the wide led slot that is used to color the Steelseries logo on your mouse.

  7. yHCIV5RFDANMvViM
    yHCIV5RFDANMvViM
    tBKeIyJIAtvPidTh

    • Use a Philips #0 screwdriver to remove the four screws that are keeping the mouse sensor assembly sealed.

  8. mCExjj5eouAWeGWI

    • Insert your thumb and index in the two mouse holes and gently pry the sensor assembly out from its socket.

  9. cadf6dUISscFXLRL

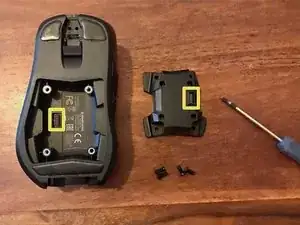

    • The sensor assembly is linked to the mouse body with a 10-pin Steelseries custom connector.

  10. B4jbKXRGDo5DKTAD

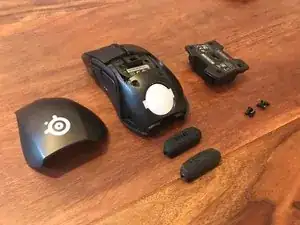

    • Only four screws have to be removed to entirely re-design this gaming mouse, which is not that expensive regarding the high performance, features, and customizability.

Abschluss

To reassemble your device, follow these instructions in reverse order.
