Einleitung

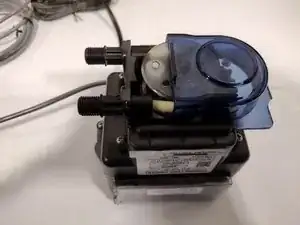

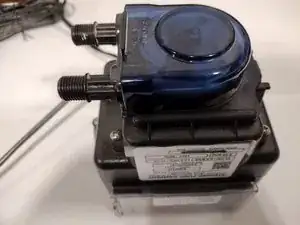

The pump tube is a core component of a peristaltic pump which will wear over time, requiring replacement. This guide will aid you in the replacement process on a Stenner Pump Company Econ series chemical pump.
Werkzeuge
Ersatzteile
-
-

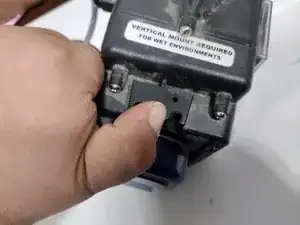

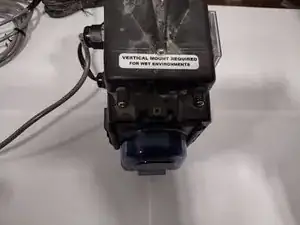

Locate the latch on the left side of the pump casing and using your thumb rotate it from the left fully to the right.
-
-
-

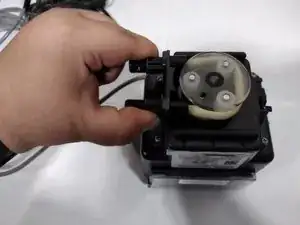

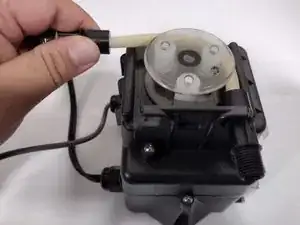

Slide one side of the pump tube to remove it from it's mount.
-
Repeat the process for the other end of the tube.
-
-
-

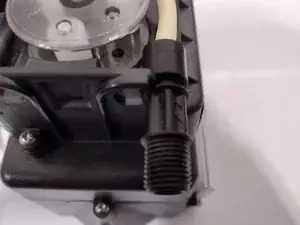

Insert the new pump tube taking care to ensure it seats properly into the pump tube mount.
-

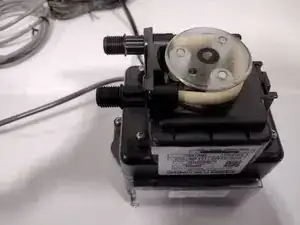

Stretch the new tube around the roller and slide it into the pump tube mount on the other side.
-
-
-

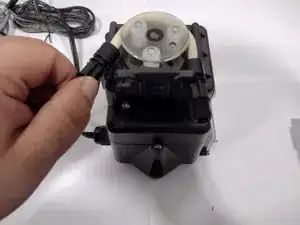

Using two fingers, squeeze both ends of the new pump tube.
-

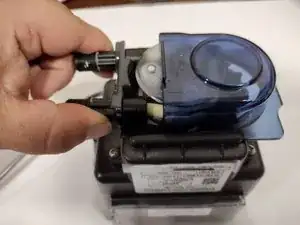

While compressing the tube ends, slide the roller assembly cover back on to the pump. Ensure the roller assembly cover follows the guide rails.
-
-
-

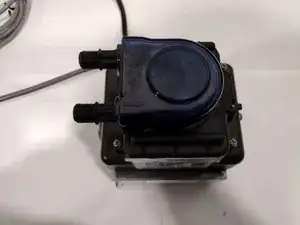

Secure the roller assembly cover to the pump by rotating the latch on the left side of the pump casing and using your thumb rotate it from the right fully to the left.
-
You have now successfully replaced the pump tube yourself, saving you a service call from a dealer or plumber.
