Use this guide to replace a broken or worn-down pull start rope from a Stihl BG 50 gas-powered leaf blower.
The purpose of the pull start rope is to start the combustion engine. The rope can become brittle if it is not used frequently or it may begin to tear after extensive use. If the rope is only dirty it is not necessary to replace it. If the rope has already broken, Step 2 can be skipped.
Be sure to removing the fuel from the blower’s fuel tank to prevent a fire hazard.
The old rope should be disposed of, but the pull start handle can be kept as a spare part.
Werkzeuge
-
-

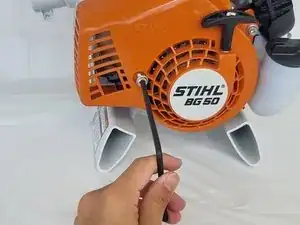

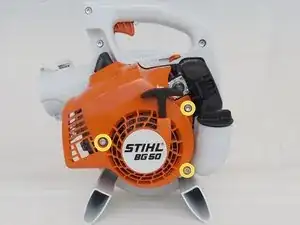

Use the Torx T25 screwdriver to remove the three screws holding the orange casing.
-
Remove the orange plastic casing from the rest of the blower.
-
-
-
Hold the starter rope in a U shape.
-
Cut the rope with a knife without letting go of the rope going in the blower.
-
-
-
Let the rope go slowly into the starter pulley.
-

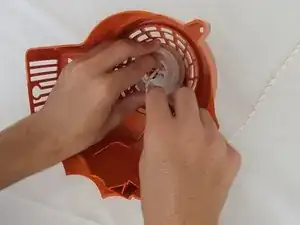

Grab the rope from its knot and remove the rope from the starter pulley.
-
-
-

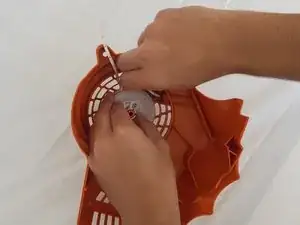

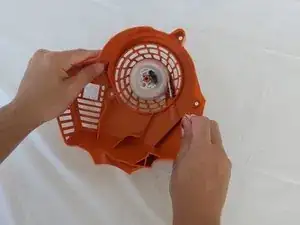

While holding the starter pulley, insert the end of the rope lacking the knot.
-

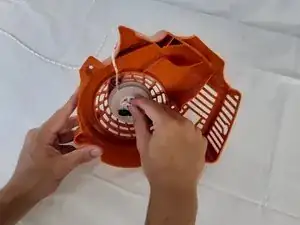

When it comes out the other side of the starter pulley, pull it through.
-

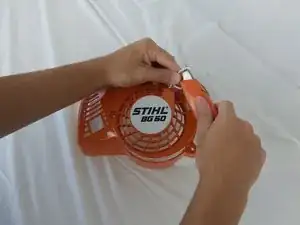

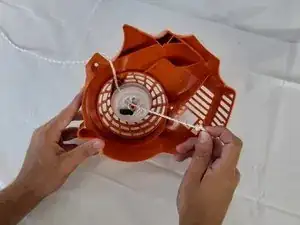

Without letting go of the starter pulley, insert the rope through the orange case and pull it taut.
-
-
-

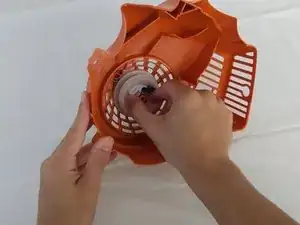

Hold the rope taut and let go of the starter pulley.
-

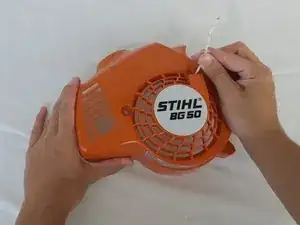

Let go of the rope slowly until about a foot of rope remains outside the casing.
-
-
-

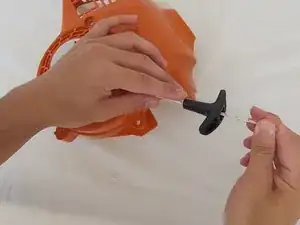

Insert the rope inside the pull start handle.
-
Tie a knot at the end of the rope.
-
Let go of the rope.
-
-
-
Put the orange casing back on the blower.
-

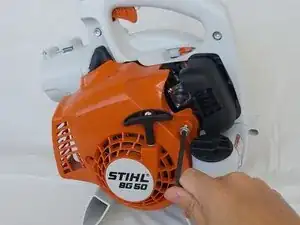

Use the Torx T25 screwdriver to tighten the three screws.
-
When the pull start rope is pulled, it should wind back. If it does not, a mistake might have occurred when changing the new rope when winding it inside the starter pulley.
