Stratitec S5202A Snap-in Circuit Breaker Replacement

Geschrieben von: rainbentrott
  • Kommentare: 0
Stratitec S5202A Snap-in Circuit Breaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

17

Zeitaufwand

Keine Schätzung

Einleitung

Surge protectors are designed to protect common electrical devices, but are often are subject to disposal at the end of their life cycle. By maintaining a surge protector with simple repairs you can help reduce E-waste. For 20 minutes and a low replacement part cost you can greatly extend the use and life of your S5202A surge protector.

  1. RpyNlJBMS4g6EJuP

    • Place the power strip on a level surface with the bottom facing up.

  2. LKEOlUGooOjmfCEM

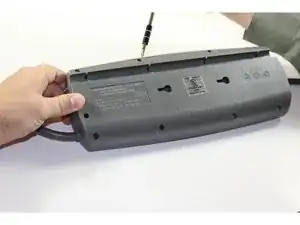

    • Remove the nine screws from the bottom plate using an IfixIt bit driver and the bit labeled PH1.

  3. tQPXlWZwTbHvQSMb

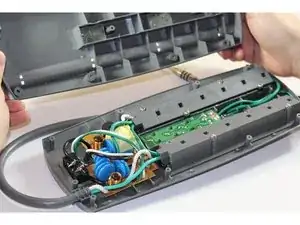

    • Remove the lower plate to expose the internal components.

  4. pvGqIJjKYuKGnZOT
    pvGqIJjKYuKGnZOT
    NXKTNvFBmeDdjwVA

    • The soldering tools will be hot, as will the solder when melted. Avoid contact with skin.

    • Solder fumes are toxic, avoid inhaling.

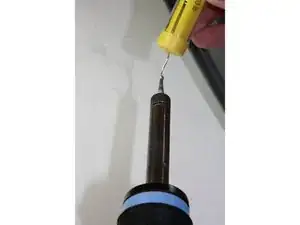

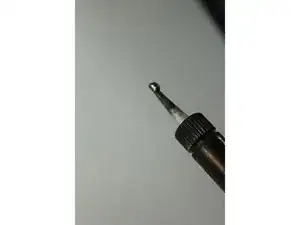

    • Turn on the solder station to the highest temperature setting and wait for it to heat.

    • Each solder station is different and some many only have an on/off switch with no temperature setting.

    • It may take up to ten minutes for the solder station to heat completely.

    • The easiest way to be sure the solder iron is hot enough is to touch the solder to the iron and see if it melts.

  5. oQvqhhaJ3BwcXRvK
    oQvqhhaJ3BwcXRvK
    jPA3eI4KOFoToRID

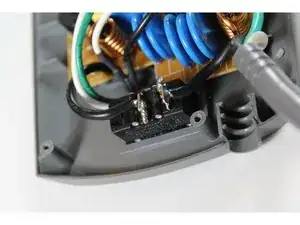

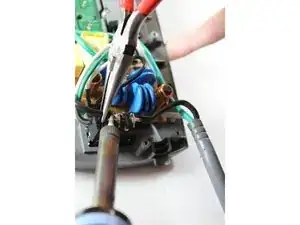

    • Locate the power switch leads and apply solder iron tip to wire 1.

    • Waiting for the solder to completely melt may take up to a minute or two.

    • Do not pull on the wire until the solder on both the lead and the wire is completely melted.

  6. aIFxie2DPUhdPWUs

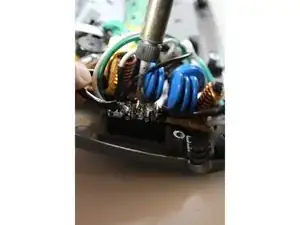

    • Once the solder has melted on the switch, use a pair of flat-head pliers to remove the wire.

    • In some cases it may be necessary to cut the tips of the wire off in order to free the wire.

  7. LsaDBToQK6b4L2c2

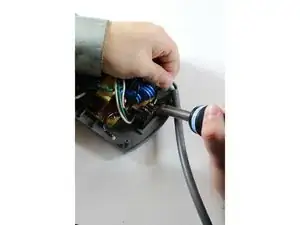

    • Repeat steps 5 and 6 for wire two.

  8. HJBUWCYNvUZZ6vWp

    • Loosen the power switch by pushing on the plastic side tabs located inside the power strip case.

    • If you can't get the tabs to release, use a pair of flat-heat pliers and push down on one tab at a time.

    • There are two tabs on each side of the switch.

  9. UvpjEYJBKpWXTYyE
    UvpjEYJBKpWXTYyE
    BXLiiTZwUJAtWlvK

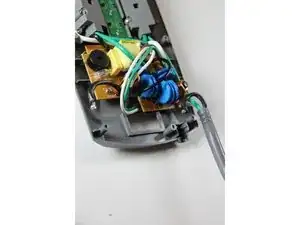

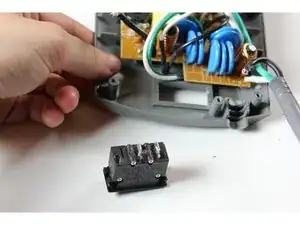

    • Carefully remove the unsoldered power switch component.

  10. hvf2IFr6HVV14iMu
    hvf2IFr6HVV14iMu
    dLZXiR6WPDmiFYdZ
    4ZCR6VUst61VtPXG

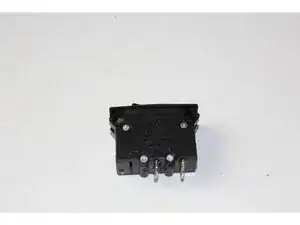

    • Replace the old switch component with the new SS-001.

    • Snap in the circuit breaker component by pushing the switch down until the tabs lock into place.

    • You should be able to hear the tabs snap into place.

  11. 5kHqOIDJUo4YQj2x

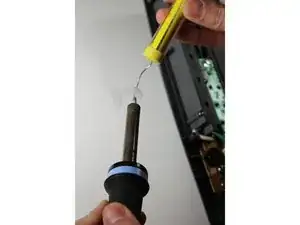

    • Apply new solder onto the iron tip.

  12. JRfkiINudIIHAbRv

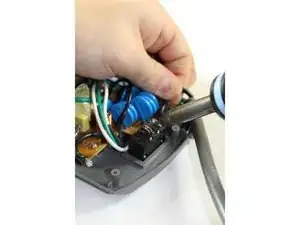

    • Solder wire 1 onto the power switch tab.

    • If necessary apply extra solder to the metal pin until the wire is connected.

    • If you forget which wire goes to which tab just be sure that your switch orientation is the same as the picture shown. Once you are sure it is in the correct way, the wires simply stay on their respective sides. The left wire goes with the left pin and the right wire goes with the right pin.

  13. wWNIDJiQhZAhYct4
    wWNIDJiQhZAhYct4
    CHRBlpkXDir3GTNY

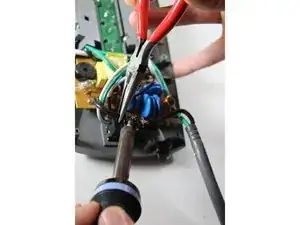

    • Repeat steps 11 and 12 for wire 2.

  14. d4oNWaLXsAjdhVKB

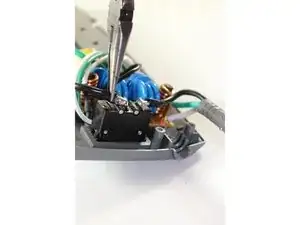

    • Hold wire down with pliers until solder cools and sets.

    • If needed add more solder to wire/lead connection point.

  15. 1okkUXXNkgQjLJwq

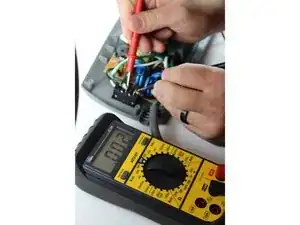

    • Test power strip using an Ohmmeter by touching both solder joints while in off position.

    • When the switch is in the off position the circuit should be “broken” and in turn show a resistance.

    • Even if the resistance is small like the 2Ωs pictured here, it still means the switch is doing its job.

  16. QpxTXgcfkJ5K5J2T

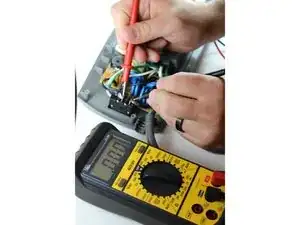

    • Repeat step 15 with the power switch in the on position.

    • While the switch is in the on position the circuit should be open and there should be no resistance between the two pins.

  17. xSBuY3PUTPEiT4fw

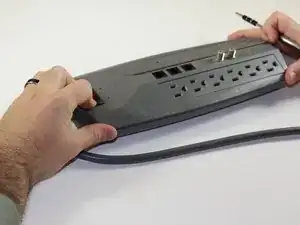

    • Repeat steps 2-3 in reverse order for reassembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Now that you are finished, you have the satisfaction of repairing something broken as well as cutting down on electronic waste. If there are problems such as: the switch not turning on, no voltage connectivity, or if the Ohmmeter does not give the appropriate readings in steps 15 and 16, you may be lacking the appropriate amount of solder for your wiring. To fix this, reapply the solder to the joints where the wires connect to the circuit breaker. Since surge protectors are a growing need with more electronics being utilized, this guide will help you ensure your surge protector is well maintained and ready to protect your electronics.
