Summer Infant Secure Sleep Button Replacement

Geschrieben von: Courtney
  • Kommentare: 0
Summer Infant Secure Sleep Button Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 Minuten

Einleitung

The monitor has stuck buttons and will not move. In order to ensure its quality and increase functionality, we will need to take this object apart and clean or replace unable buttons.

  1. 6Trpi6TESLRjbAfE

    • Remove three 8mm Phillips screws.

  2. ScxVLUgEKnCQdXla
    ScxVLUgEKnCQdXla
    6nlh2jkt3mUkaPNO

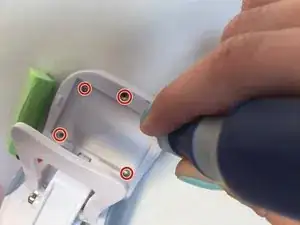

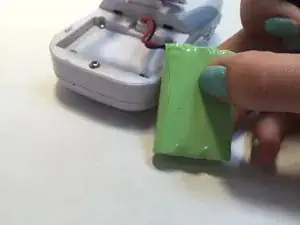

    • Remove four 3mm screws below the battery.

  3. wj1YSrlu3WbiSSLn

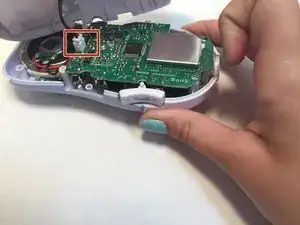

    • Detach the battery.

  4. pZNx6xaW5EeSDKhf

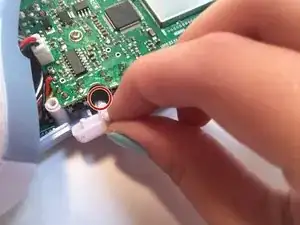

    • Remove broken side button used for volume.

  5. O4QV1XYyk2ID3xNG

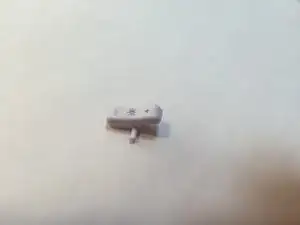

    • To ensure full success, be sure to clean or replace the buttons.

  6. 5dJb3eF4XMpk5bqt

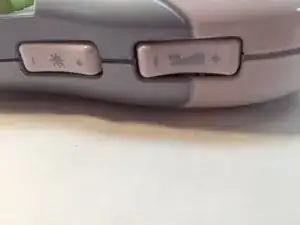

    • Place the new button on top of the unit and place the top over as shown.

Abschluss

To reassemble your device, follow these instructions in reverse order.
