Sun King Solo Solar Lantern Battery Replacement

Geschrieben von: Anna
  • Kommentare: 8
Sun King Solo Solar Lantern Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 - 10 Minuten

Einleitung

All that is needed to replace the battery is a screwdriver.

Werkzeuge

  1. xVSHXZsiPOXmOAtB

    • Place the lamp LED side down on a clean workspace.

    • Remove the screws holding the casing together using a Phillips #1 Screwdriver.

  2. unHaMyviVX1DsrkY

    • Gently pull the two halves of the lamp apart.

  3. U3XXPoRBVYINdTJP
    U3XXPoRBVYINdTJP
    VHO1oSTOUIJsvoF5

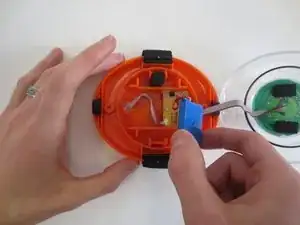

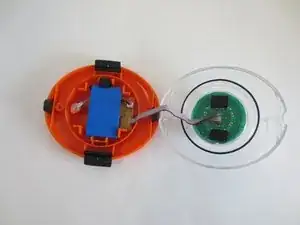

    • Locate the battery.

    • Gently lift the battery from the device.

  4. nUmHpftdHMSMJXRT

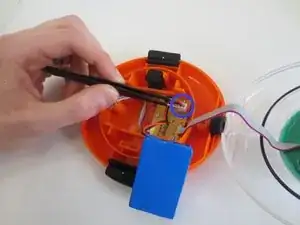

    • Locate the clip attaching the battery pack to the circuit board.

    • Use tweezers to remove the portion of the clip attached to the battery.

    • Do not pull directly on the wires! They can easily be damaged.

  5. pTo2SJvy2WLMxGN4

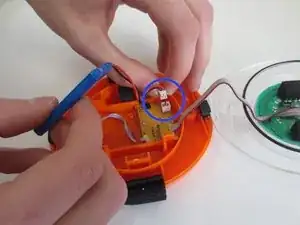

    • Align the black wire of the new battery towards the center of the device.

    • Press down firmly on the clip to insure that it is properly connected.

    • Properly dispose of the Lithium-Ion Battery. Lithium Battery Disposal

  6. ZEvpJOBnpArQPIXm

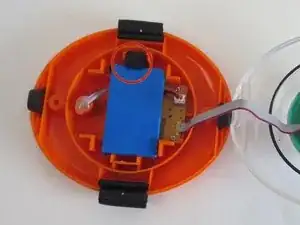

    • Seat the battery in the orange component so that the short end of the battery pack is touching the foam bumper.

Abschluss

To reassemble your device, follow these instructions in reverse order.
