Einleitung

Use this guide to replace a broken or damaged hand strap.

  1. xVSHXZsiPOXmOAtB
    • Place the lamp LED side down on a clean workspace.

    • Remove the screws holding the casing together using a Phillips #1 Screwdriver.

  2. unHaMyviVX1DsrkY
    • Gently pull the two halves of the lamp apart.

  3. IVsLDJ56LwieqMKv

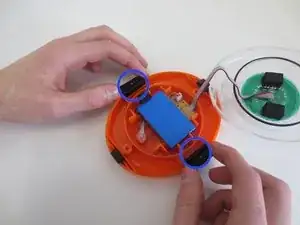

    • Remove both ends of the strap from the orange casing by pulling up.

  4. 6PvXN2ppqA4Yo2E3

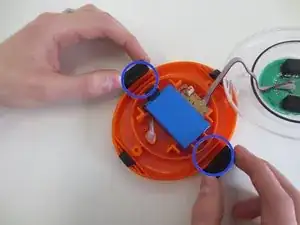

    • Insert the ends of the new strap into the strap housing on both sides of the orange component.

    • Either strap housing (inner or outer) can be used to adjust the strap length.

Abschluss

To reassemble your device, follow these instructions in reverse order.
