Sungale Cyberus ID707WTA Speaker Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

This guide will show the steps involved in replacing the speaker.

  1. EfScnEq1JECMp4NO

    • Press firmly on lower portion of the back cover and slide the cover towards the bottom to remove cover.

  2. Xj3YnXuFqceSDjb6

    • Pull on the plug carefully until it releases from the port and simply pull the battery out after.

  3. XusFDPCLRKnlgE3y

    • Pry open the casing with a plastic opening tool .

  4. RcGonUBEEuRt2XrD
    RcGonUBEEuRt2XrD
    A26TBEPlEXajfK5W

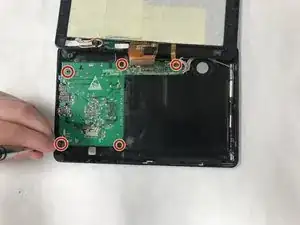

    • Unscrew the five 4.5 mm screws to allow access to the motherboard.

    • Lift the motherboard and set it onto the backside of the screen.

  5. oGcQFIZeINYPgSmd

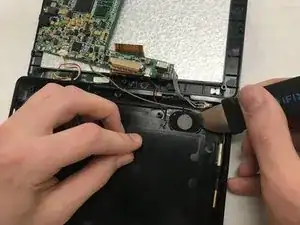

    • Pry the speaker out of retainer clip with iFixit pry tool.

  6. iuoBFrjPhvHU5Xc5

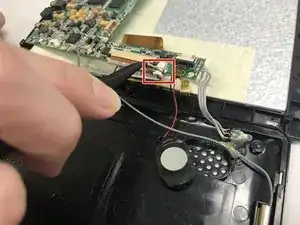

    • Pry the speaker clip from the motherboard using tweezers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
