Einleitung

This replacement guide will offer step-by-step information on how to replace a Supersonic Matrix SC-91MID screen

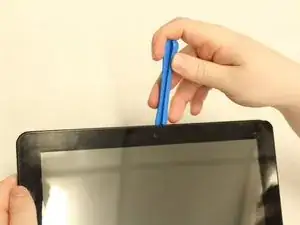

  1. NdWPyGCKOAPR63Eb
    NdWPyGCKOAPR63Eb
    XIQW4xHdLQcgpLim

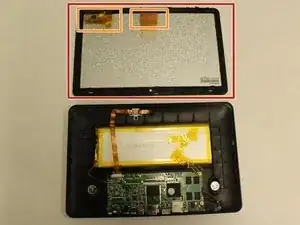

    • Place the plastic opening tool between the screen and the main component and pry open between the two. Once removed place the main component in a safe place and continue working on the screen section (highlighted in red).

    • Be aware of the wires when removing the display screen from the main component (highlighted in orange)

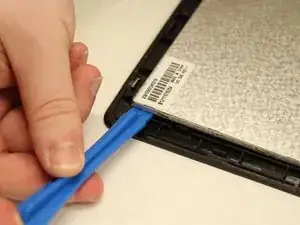

  2. 6khx66odlRKFPsvs
    6khx66odlRKFPsvs
    eyHitAwhtsnGIchI
    vGpKR4ydIRuHT4ec
    • Place the plastic opening tool between the metal screen plate and the black front casing.

    • There are small clips where the plastic opening tool can be placed to help pry the screen from the casing.

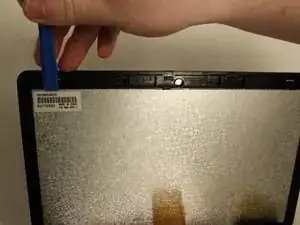

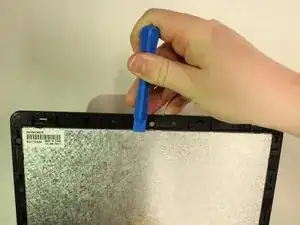

  3. VEGbS6XdgZUCJdlH
    VEGbS6XdgZUCJdlH
    A4hccph5NSdqCHPC
    HiVDUbBmgKGUfkOY
    • Continue to slide the opening tool along the length of the casing until there is a clear separation between the screen and the cover (as shown in the third image).

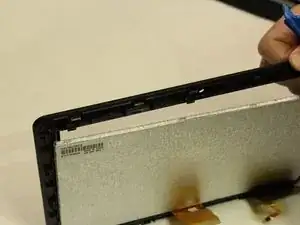

  4. Bulu1EnZPxI6RsEp
    • Once there is a clearing, carefully remove the screen from the black cover. You now have separated the screen from the tablet device and and are now ready to replace screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
