Surface Studio 2.5" Hard Drive Replacement

Geschrieben von: The Raptor
  • Kommentare: 15
Surface Studio 2.5" Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

20 - 30 Minuten

Einleitung

Do you want a bigger hard drive or a second SSD? Follow this guide to replace your hard drive.

  1. 2kajlpWOkSOFItgV
    2kajlpWOkSOFItgV
    SZPMAUZSRNs2ViRw
    mhlgnXyZcWZujr1L

    • Lay the Surface face down on a padded surface

    • Be careful not to scratch the screen when laying it face down

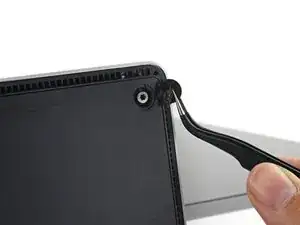

    • Remove the four rubber feet at each corner concealing the Torx screws

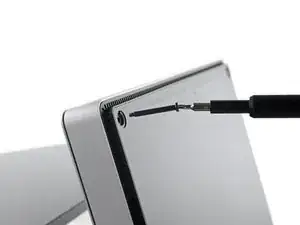

    • Remove the four Torx screws under the rubber feet.

    • Two screws on the upper corners are longer than two screws on the lower corners.

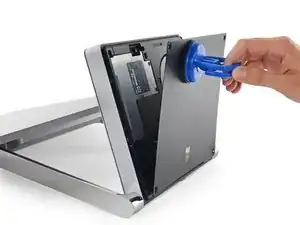

    • Attach suction cups to the bottom cover and then pull on the suction cups to free the bottom cover.

  2. cOD2ELjxb41HKsgI
    cOD2ELjxb41HKsgI
    DxVANwqPFGEcNiJL

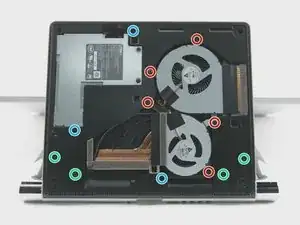

    • Remove five torx screws holding the two fans to the midframe

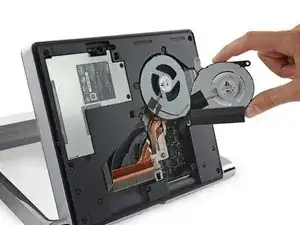

    • Remove the two fans

    • The fan connectors are behind the midframe and not yet accessible. Let the fans hang loosely until you can access the connectors.

    • Four large torx screws and four small torx screws hold the midframe to the upper frame.

    • Remove four large torx screws holding the midframe

    • Remove four small torx screws holding the midframe

    4th blue is missing and is above the far right green circle. In line with the second red circle and below the GPU heat sink.

    Steven McCarthy -

  3. YUGtxjXUympWUMjj

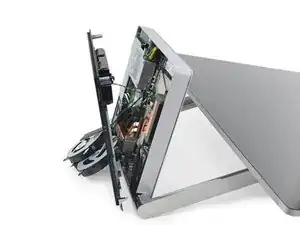

    • Slowly remove the midframe

    • Be careful: the speaker on the midframe is still attached to the motherboard

    • Detach the connectors for the two fans and the speaker

    how to attach speaker after removing it ?

    Małgorzata Nowaczewska -

  4. 64EciO1v4FAsolBL
    64EciO1v4FAsolBL
    Y1EokQhOqnDCNrVf
    YpUVl1SbbClmWiLY

    • With the midframe removed, it is also possible to replace the M.2 SSD during this step

    • The hard drive is underneath the heatsink so the heatsink must be removed

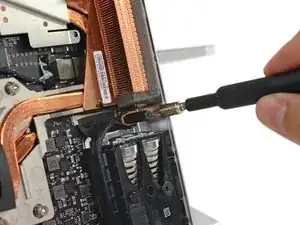

    • Remove four spring loaded torx screw labeled 1 to 4

    • Remove three torx screw labeled 5 to 7

    • Remove 5mm hex mounting post

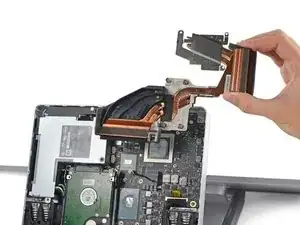

    • Use a spudger to remove the heatsink assembly from the motherboard

  5. lm2o1EvNp5OTjGZp
    lm2o1EvNp5OTjGZp
    oYHyRDGcENhVoTgt
    gBmEpVoCZD4ROZrw

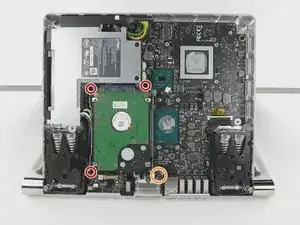

    • Remove three torx screws holding the hard drive brackets

    • Remove 5mm hex mounting post

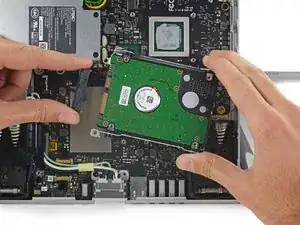

    • Remove the hard drive and disconnect the SATA/SATA power cable

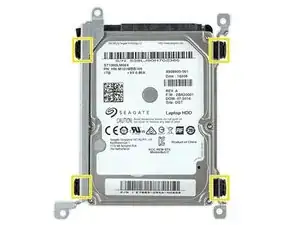

    • Remove four torx screws holding the hard drive brackets to the hard drive

    • On reassembly, be sure to clean the CPU and GPU and heat sink and reapply thermal compound to the CPU and GPU

Abschluss

To reassemble your device, follow these instructions in reverse order.
