Einleitung

This guide shows you how to replace the motherboard in the Surface Studio

  1. 3TDA121yKYCoHUjG
    3TDA121yKYCoHUjG
    X3BvQENOgJEUtJhm
    HNhXOQHUbvU3iwC3
    • Lay the Surface face down on a padded surface

    • Be careful not to scratch the screen when laying it face down

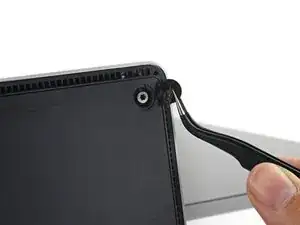

    • Remove the four rubber feet at each corner concealing the Torx screws

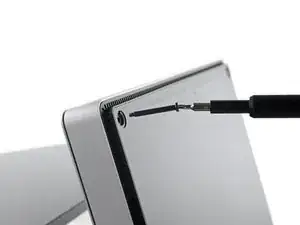

    • Remove the four Torx screws under the rubber feet.

    • Two screws on the upper corners are longer than two screws on the lower corners.

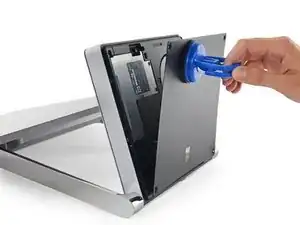

    • Attach suction cups to the bottom cover and then pull on the suction cups to free the bottom cover.

  2. 2QPDcsvpW2PqOiqD
    2QPDcsvpW2PqOiqD
    vJHDX2mvifGBKPaC

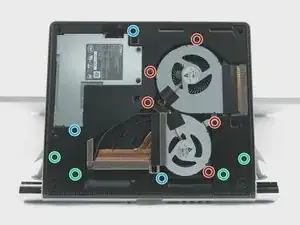

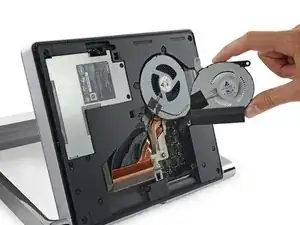

    • Remove five torx screws holding the two fans to the midframe

    • Remove the two fans

    • The fan connectors are behind the midframe and not yet accessible. Let the fans hang loosely until you can access the connectors.

    • Four large torx screws and four small torx screws hold the midframe to the upper frame.

    • Remove four large torx screws holding the midframe

    • Remove four small torx screws holding the midframe

  3. Ha1ZW4BaBjj3dupH

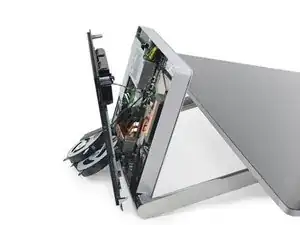

    • Slowly remove the midframe

    • Be careful: the speaker on the midframe is still attached to the motherboard

    • Detach the connectors for the two fans and the speaker

  4. RUxjaUa32JKIKDHT
    RUxjaUa32JKIKDHT
    Q6pT3KpumgZjRP4Y
    afNLUrvhIEvtqNJE

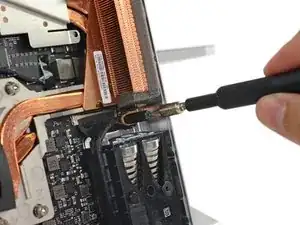

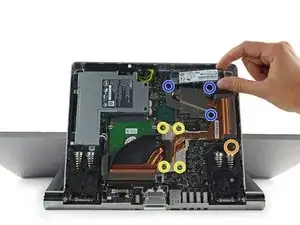

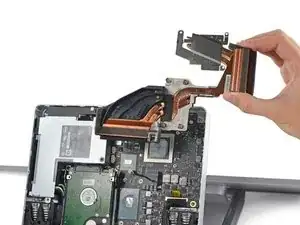

    • Remove four spring loaded torx screw labeled 1 to 4

    • Remove four torx screw labeled 5 to 7

    • Remove 5mm hex mounting post

    • Use a spudger to remove the heatsink assembly from the motherboard

  5. 4TF2sTr3n5EXpW6O
    4TF2sTr3n5EXpW6O
    4H3AKBcRCA1cTWLE

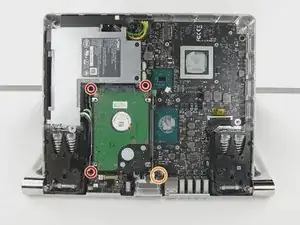

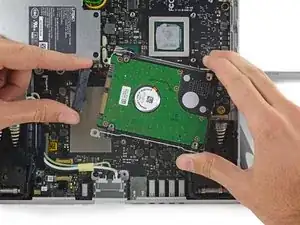

    • Remove three torx screws holding the hard drive brackets

    • Remove 5mm hex mounting post

    • Remove the hard drive and disconnect the SATA/SATA power cable

  6. 2s4R5PfjcKKVi1NI
    2s4R5PfjcKKVi1NI
    XirGwIdirlOKOl6b
    dHlaOMTGVsFlcpm2

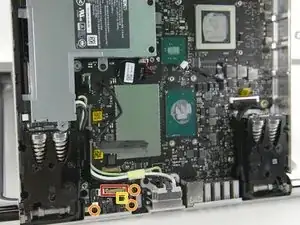

    • Lift the black plastic flap attached to the data cable retainer and rotate it away from motherboard.

    • Pull the data cable out of its socket.

    • The data cable socket is very fragile. Do not lift the connector upward as you disconnect it, as the socket may break off the motherboard. Pull the cable parallel to the face of the motherboard.

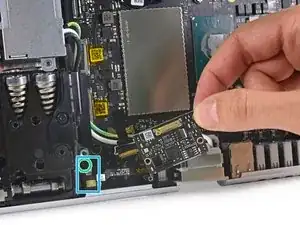

    • Disconnect the data cable connecting the headphone jack to the SD card slot modular board

    • Remove three torx screws holding the SD card slot modular board

    • Remove the SD card slot modular board

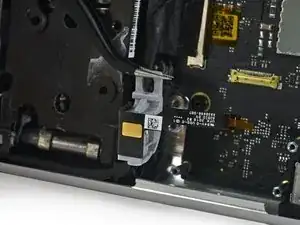

    • Remove a torx screw holding the headphone jack

    • Remove the headphone jack

  7. 5AfHqKGy4Vj2KZFg
    5AfHqKGy4Vj2KZFg
    KOXcTMVomOV5tKwk

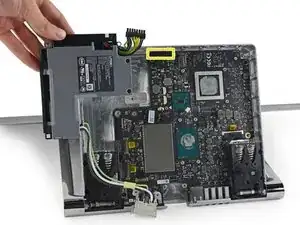

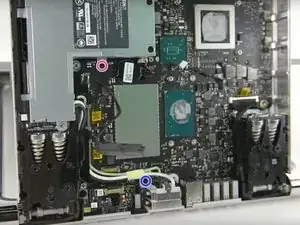

    • Although removing the power supply is not necessary, it makes accessing the connectors easier

    • Remove a Phillips screw still retaining the power supply

    • Remove a torx screw retaining the power supply cable

    • Unplug the power supply from the motherboard

    • Lift the power supply up and away from the base unit

  8. bZTsUSeAEVgRDCYo
    bZTsUSeAEVgRDCYo
    gGocLacMXGNIAPtk

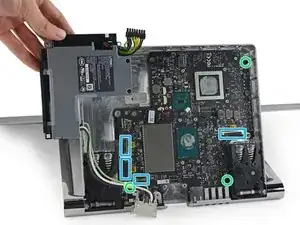

    • Lift the black plastic flap attached to the data cable retainer and rotate it away from motherboard.

    • Pull the data cable out of its socket.

    • The data cable socket is very fragile. Do not lift the connector upward as you disconnect it, as the socket may break off the motherboard. Pull the cable parallel to the face of the motherboard.

    • Remove three torx screws holding the motherboard

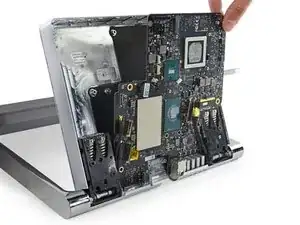

    • Lift the motherboard up and away from the base unit.

  9. Bf4GDov3tOylrqCx

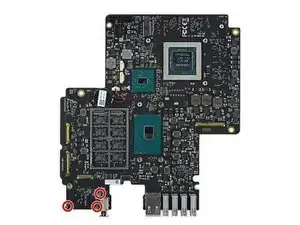

    • Remove three 5mm hex mounting posts

Abschluss

To reassemble your device, follow these instructions in reverse order.
