Surface Studio Power Supply Unit Replacement

Geschrieben von: The Raptor
  • Kommentare: 3
Surface Studio Power Supply Unit Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

20 - 30 Minuten

Einleitung

Follow this guide to replace your power supply unit

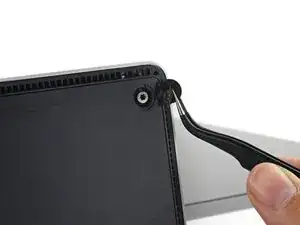

  1. E3ZTakulSeVUHuPx
    E3ZTakulSeVUHuPx

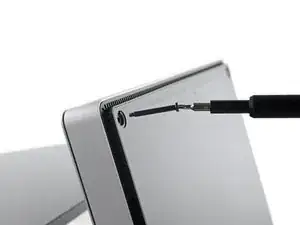

    aUFA35cIZckJ1RtP

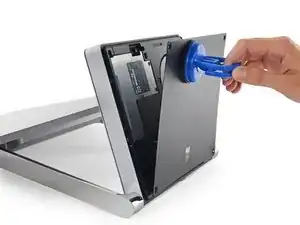

    BDZIoUMyvH5PRDhA

    • Lay the Surface face down on a padded surface

    • Be careful not to scratch the screen when laying it face down

    • Remove the four rubber feet at each corner concealing the Torx screws

    • Remove the four Torx screws under the rubber feet.

    • Two screws on the upper corners are longer than two screws on the lower corners.

    • Attach suction cups to the bottom cover and then pull on the suction cups to free the bottom cover.

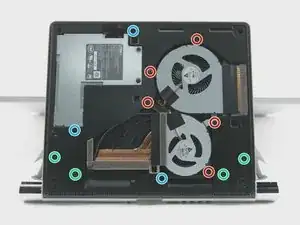

  2. 2Gfl6gHZQVsRbTZK
    2Gfl6gHZQVsRbTZK

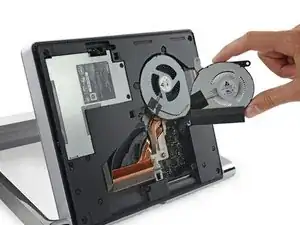

    HJhu143JUmFfPRd5

    • Remove five torx screws holding the two fans to the midframe

    • Remove the two fans

    • The fan connectors are behind the midframe and not yet accessible. Let the fans hang loosely until you can access the connectors.

    • Four large torx screws and four small torx screws hold the midframe to the upper frame.

    • Remove four large torx screws holding the midframe

    • Remove four small torx screws holding the midframe

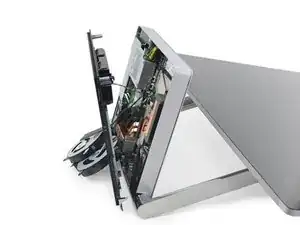

  3. cioMZyNVI5BWIJ3x

    • Slowly remove the midframe

    • Be careful: the speaker on the midframe is still attached to the motherboard

    • Detach the connectors for the two fans and the speaker

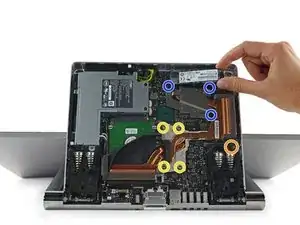

  4. CubsUcrpXtGer6Yj
    CubsUcrpXtGer6Yj

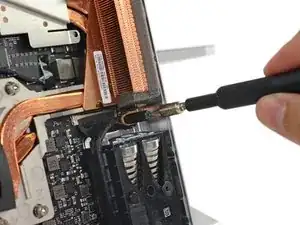

    6bUUOtMXGLLNKCMg
    JW3OF5KRQxOGRE1q

    • A screw retaining the power supply is under the hard drive so both the hard drive and the heat sink assembly must be removed

    • Remove four spring loaded torx screw labeled 1 to 4

    • Remove four torx screw labeled 5 to 7

    • Remove 5mm hex mounting post

    • Use a spudger to remove the heatsink assembly from the motherboard

  5. Ldl5UrD41ojn2iBp

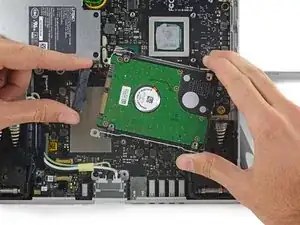

    Ldl5UrD41ojn2iBp
    XitBHEv3BQqLgcB3

    • Remove three torx screws holding the hard drive brackets

    • Remove 5mm hex mounting post

    • Remove the hard drive and disconnect the SATA/SATA power cable

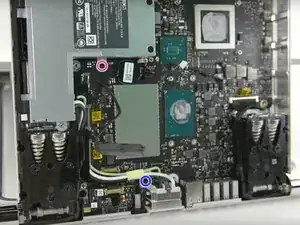

  6. v1HYEYsqyxIRmBYh
    v1HYEYsqyxIRmBYh

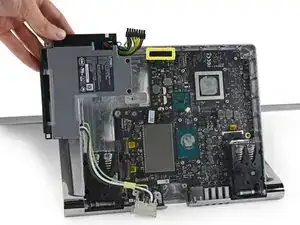

    NF1BZDNGLqRdAZTB

    • Remove a Phillips screw still retaining the power supply

    • Remove a torx screw retaining the power supply cable

    • Unplug the power supply from the motherboard

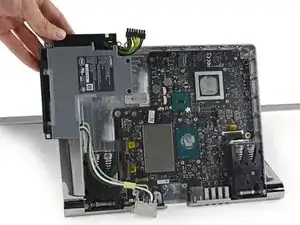

    • Lift the power supply up and away from the base unit

Abschluss

To reassemble your device, follow these instructions in reverse order.
