Einleitung

Does your surfboard have a broken or loose fin? This guide will help you replace your futures surfboard fin to get you back on the water in no time!

  1. K4HpeuwEniIoBZ4b
    K4HpeuwEniIoBZ4b

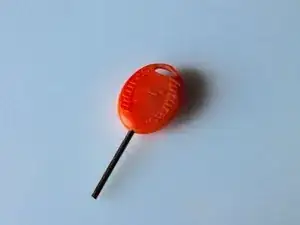

    QkioZQSEQNsXbQTR
    euRiRD3JsTQTSFGP

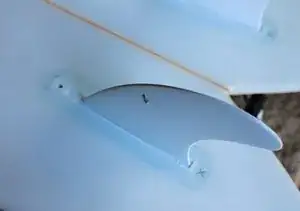

    • Lay your surfboard down on a flat, durable surface long enough to support the length of your board.

  2. wi5LRmub6BxvcuVv
    wi5LRmub6BxvcuVv
    soRe5AqdqxhQEirA
    rEZmInABtSVT1xXD

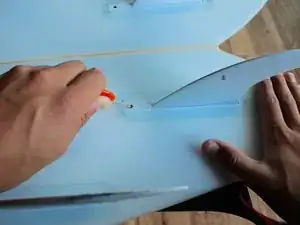

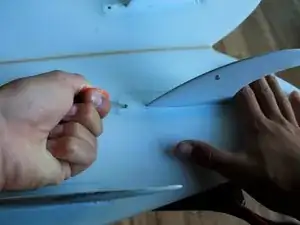

    • Make sure the small screw hole in front of the fin is free of debris and sand.

    • Insert the key into the hole and begin turning counter-clockwise to loosen the screw inside.

  3. TCOdSkv2LLlQVySV
    TCOdSkv2LLlQVySV

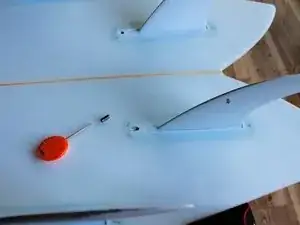

    sbYP6JVWRViNUPJV

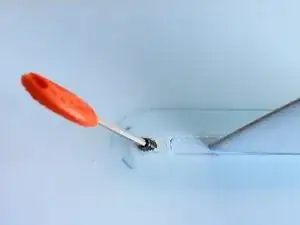

    • Continue turning counter-clockwise until the screw is free.

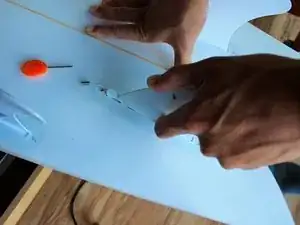

  4. NCUeM2WBL1Xdp6VI
    NCUeM2WBL1Xdp6VI
    MquKELURIsr2GhS2

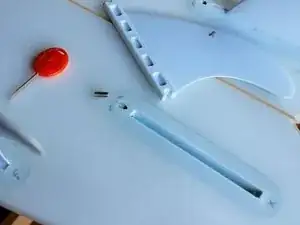

    toOcRlGcgWml4ALL

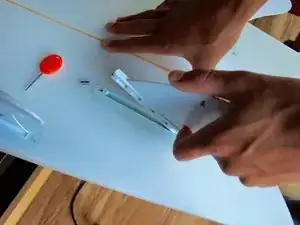

    • Firmly grasp the fin with one hand and place your other hand on the surfboard for stabilization.

    • Simultaneously lift the fin while tilting it backwards to remove the fin.

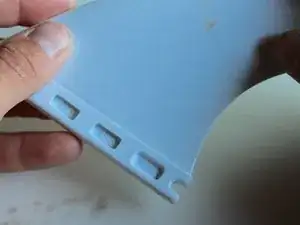

  5. Nuq1OBNZRXt2ddLI
    Nuq1OBNZRXt2ddLI

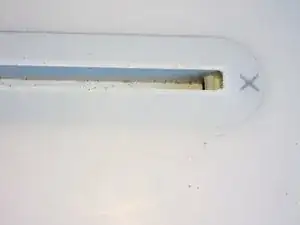

    bEPD31LdKANQmHdA
    • Notice the circular inlet on the rear bottom side of the fin. This inlet of the fin fits snuggly into the little rod located in the back of the fin slit on the board, much like a puzzle.

  6. w6RJaHhqJxbgjQHr
    w6RJaHhqJxbgjQHr
    y3UKbXxMSifabLpU

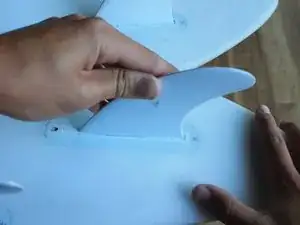

    hyprWgiSUNfc6iot
    • With your new or repaired fin, insert the back in first so that you feel the inlet on the fin clip into the little rod in the slit.

    • Once you feel the back secure, bring the front of the fin down into the slit.

  7. 1cLHrWUDjIFgCojM
    1cLHrWUDjIFgCojM
    eGfsXaMTv5ChMRZT
    dWGY2ooXiYFXQVMe

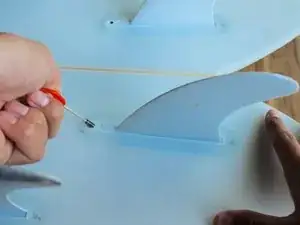

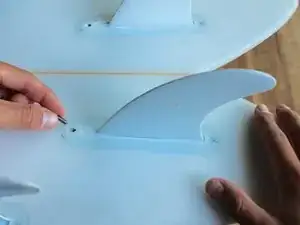

    • Place the screw back into the hole and begin turning clockwise using the key.

    • Continue turning until the screw is tight and won't turn any more.

    • Once the screw stops turning, do not continue to tighten or you may damage the screw or fin.

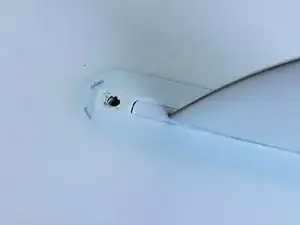

  8. kierguunanKVZ5Vv
    • Make sure the screw can no longer be seen.

    • Wiggle your fin gently to test for looseness, and you have successfully replaced your surfboard fin.
