SwagTron T1 Gyroscope Replacement

Geschrieben von: Teagan Allen
  • Kommentare: 11
SwagTron T1 Gyroscope Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

10 - 15 Minuten

Einleitung

This guide will show you how to replace the gyroscope component of your SwagTron T1. This may be necessary if the self-balancing function of your hoverboard is not working correctly. Before attempting this replacement, recalibrate your SwagTron. If the problem persists, continue with this replacement. This replacement can be done for the gyroscope component on either side of your SwagTron T1.

  1. hASamQQ2pH5X2Q1c

    • Ensure that the SwagTron is off.

    • Turn the SwagTron upside down to see the underside.

  2. AyLoCfiNNPUSusko
    AyLoCfiNNPUSusko
    A1SfRjgBH1Ps4FDx
    4PbF3Xqm2IGcYGLc

    • Unscrew the eighteen 10mm screws that secure the back panels using a Phillips #2 screwdriver.

    • The screws are tightly in place. It will take effort to screw them out.

    • The panel is still attached to the SwagTron by wires that go to the motherboard.

    • Carefully lift the panels off

    The panels don’t come off after removing the screws. Could they be also glued in place?

    uygar_selman -

    Same issue here with the T882. Resorted to trying to pry the shell off but haven’t been able to yet. The closer I get to the center, the harder it is.

    Victoria Milhoan -

    FYI - there are stickers over two of the screws (one on each side). Once the stickers are removed, and the screws taken out, the shell came off easily.

    Victoria Milhoan -

    THANK YOU! The screws were under the stickers near the center.

    Liz Vance -

    I removed all the screws from the panel, and I am pulling and tugging and I can only get one side loose but not the other. Anyone else experience this?

    MS R -

  3. Fhn43eU1NvIfQ6fI
    Fhn43eU1NvIfQ6fI
    xJmZeRWNmbCI6ebv
    nYUdyMupFkQGYxCB

    • Follow the wires from the panels to the motherboard.

    • You may need to cut any zip ties that are holding the wires together.

    • There is one connection on the battery side and three on the other side that must be removed.

    • These connections may be difficult to remove. Try to securely press the connection and pull firmly.

    • Your back panels are now completely removed.

    Where can I buy the shell

    Julio Barahona -

    Where can I buy the battery?

    Daniel O'Brien -

  4. sr5jwKLbVJsFKsKA
    sr5jwKLbVJsFKsKA
    BdLQgTfnKIeQMdiy

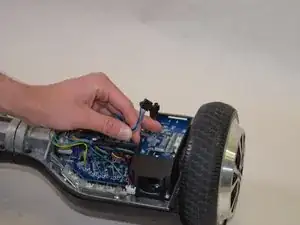

    • Disconnect the gyroscope by disconnecting the wires attached to it. These wires are black, green, blue and red.

  5. D2EYUnsxuG2ViLj6

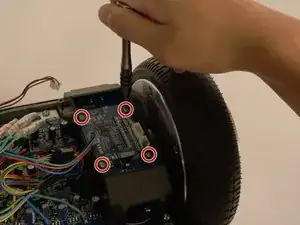

    • Using your Phillips #2 screwdriver, remove the four 8mm screws marked in red from the gyroscope.

  6. x6JKLJsRVPGAVAnA
    x6JKLJsRVPGAVAnA
    PvJEKnfPWWVuILcL
    YqhIsXxAX2IBOIcc

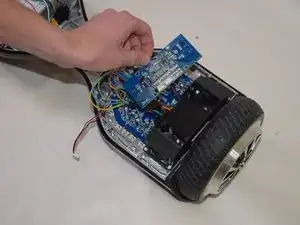

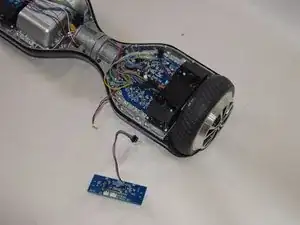

    • Carefully remove the gyroscope component from the SwagTron.

Abschluss

To reassemble your device, follow these instructions in reverse order.
