Swagtron T3 Battery Replacement

Geschrieben von: Neeki Jarrami
  • Kommentare: 12
Swagtron T3 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

7 Minuten

Einleitung

If your Swagtron T3 battery is not working, this guide will show you how to replace it. To avoid electric shock, discharge the capacitors using the capacitor discharge tool before making any changes to your Swagtron.

  1. FWAOE2xiNFVLLIi1
    FWAOE2xiNFVLLIi1
    jvbDLM5lbaXmck1t

    • Make sure the hoverboard is completely powered off and unplugged from any outlets.

    • Flip the Swagtron so that the footpads are facing the ground.

    • Unscrew the sixteen 9.4 mm Phillips #1 machine screws on the side of the Swagtron that is now facing upwards.

  2. sYkHNu5RQoCNHKYU
    sYkHNu5RQoCNHKYU
    cGvRBM2EutCXxMI3
    a3fgvPX1IRZoIFse

    • Be careful with the small blue capacitors indicated by the orange box. There are many of these capacitors in the device.

    • Slowly lift the backside cover.

    • Both sides lift up the same way, but the motherboard is under one side and the battery is under the other.

    • Detach the four cables connected to the cover by pinching the connector clips and pulling the cables out:

    • Three cables on the motherboard side.

    • Two red cables with white connectors and one white cable with a white connector.

    • One yellow cable with a black connector on the battery side.

    • After detachment, you should be able to completely remove the backside cover.

  3. 4BXrRhte4rOQ3ZoF

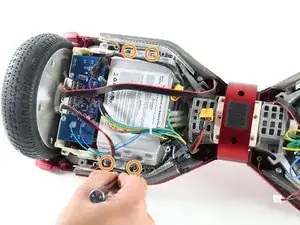

    • Unscrew the four 9.4 mm Phillips #1 machine screws attaching the battery to the base of the Swagtron T3.

  4. bIC1KUZw2IkbruEw
    bIC1KUZw2IkbruEw
    COpQdhRhOebxUVJG

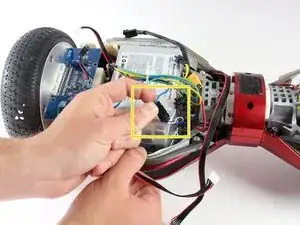

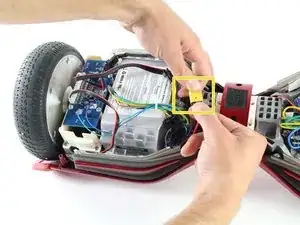

    • Detach the two cables connecting the battery to the Swagtron by pinching the connector clips and pulling the cables apart:

    • One red and black cable with a yellow connector.

    • One blue cable with a black connector.

    My T3 doesn’t have the blue/white wire connection, and the blue/green connection is just sitting there. Any idea if that is what’s causing my issues? (Powers on, but immediately turns off) Can you tell me what the blue/green connection is for? It’s soldered to the circuit board

    taraschreiber -

  5. OHBoTseWD3BwDARQ
    OHBoTseWD3BwDARQ
    IHtkh4doeBpTRsY2

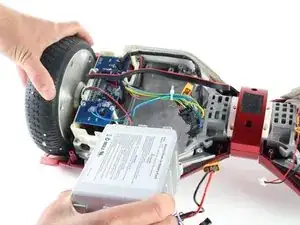

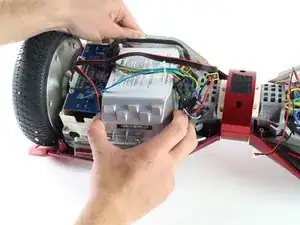

    • Remove the battery by pulling it out from under the cables.

    Where do you get a replacement swagtron battery with the two conectors

    Paul Bromberg -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Neeki Jarrami

Mitglied seit: 10/04/17

197 Reputation

10 Kommentare

where can i get a replacement battery?

rob -

Where can I get a replacement battery?

rob -

I can’t find a battery with the two wire harnesses coming out of the pack. Where can I order one?

Jeff Johnson -

Where Can I purchase a replacement batter for the T3

Leandre - June 18

Leandre Thornton -

Swagtron doesn’t sell the silver battery (even if you email them) I bought one from HoverboardRepair.com and it worked. Only difference is the small wire doesn’t come on the new battery but my hoverboard has worked just fine and I replaced the battery months ago.

Daniel Moravec -

What did you do with the small wires? Leave unplugged?

eric glass -

Where can I buy a Swagtron t3 replacement battery?

maxxefx -

Here’s an exact match for the battery from Battery Hookup.

David McIntyre -

There is a website called batteryhookup where you can buy replacement batteries.

https://batteryhookup.com/collections/li...

If you prefer to order through Ebay they also sell them there.

https://www.ebay.com/itm/173115029273

Brendan -

For replacement battery, go to swagtron.com/returns and use the chat feature. You’ll need to provide a picture of your current battery so they can confirm specs and then they’ll order one for you and send you an invoice. Pay using the link on the invoice and then they say they ship within 3-5 business days. They quoted me $59.99 but my invoice isn’t here so not sure what shipping will be. Good luck!

Jerry Larkin -
