Einleitung
This guide will provide instructions on how to replace the microphone to get sound back to your Swann Doorphone Video Intercom.
Werkzeuge
-
-

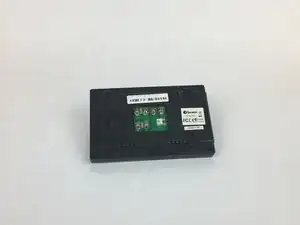

Flip the monitor of the Swann Doorphone Video Intercom over so that the underside is facing up.
-

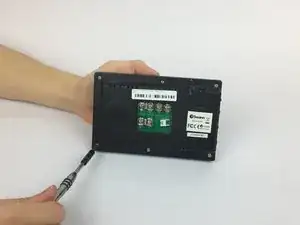

Remove the six 2 mm corner screws from the back plate of the monitor using the JIS #0 screwdriver.
-
-
-

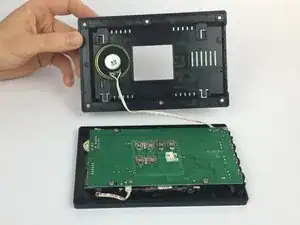

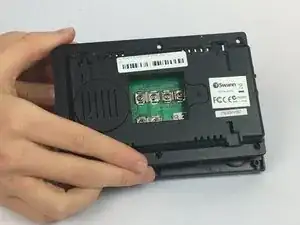

Once the screws are removed, grip the black back plate of the monitor and remove from the monitor.
-
-
-

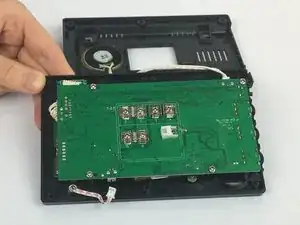

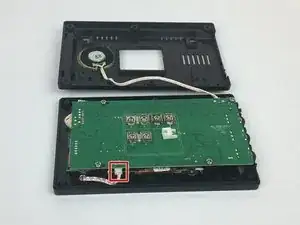

Using the precision tweezers, grab the sides of the white connector at the bottom of the green board.
-
Pull the white connector towards you to disconnect the board.
-
-
-

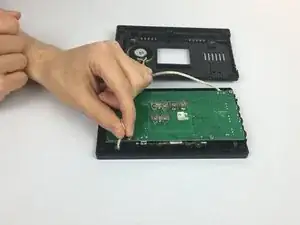

Grip the other end of the white connector cable towards the base of the black microphone.
-

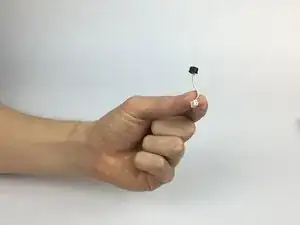

Pull gently towards your body to remove the microphone.
-
To reassemble your device, follow these instructions in reverse order.
