Swann Doorphone Video Intercom Wire Replacement

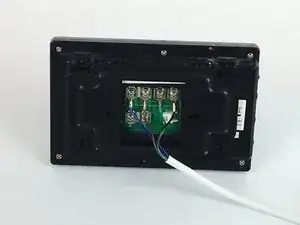

Flip the monitor of the Swann Doorphone over so that the underside is facing up.

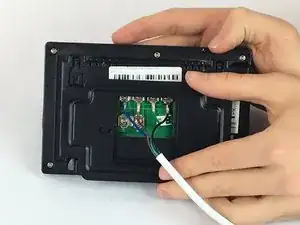

Grip the sides of the black rectangular frame where they extend outwards and pull down.

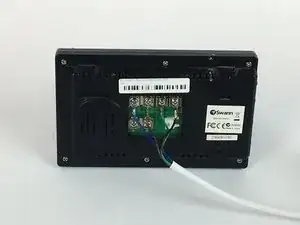

After pulling down, pull the frame towards you to remove it from the monitor.

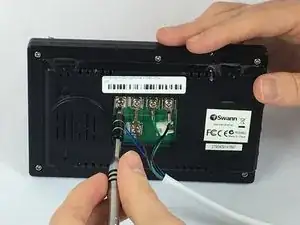

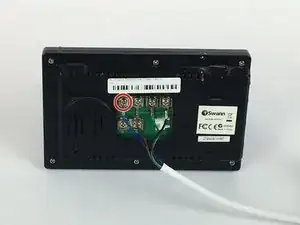

Using the JIS #0 screwdriver, unscrew the 2 mm screw in terminal 1 with the blue wire underneath.

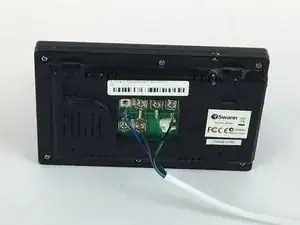

Pull the blue wire out from beneath the metal plate.

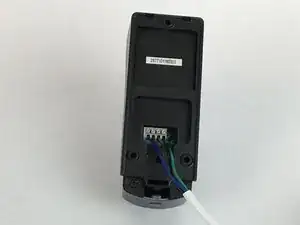

Flip the outdoor camera over so that the underside is facing up.

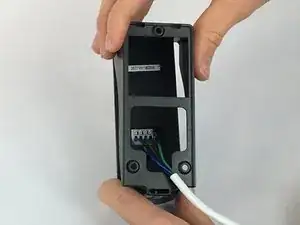

Remove the back cover by grabbing the sides of the camera and pulling towards your body.

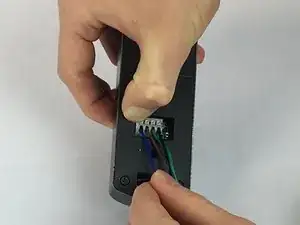

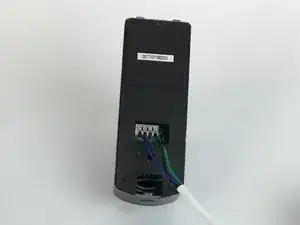

With the back cover of the outdoor camera off, press the first gray square button with blue wire down.

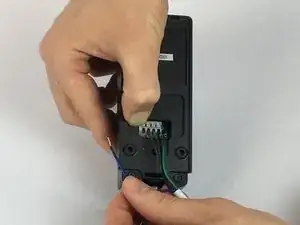

While pressing the gray square button, remove the blue wire from the first opening under the button.
