Sylvania SDVD9004 Motherboard Replacement

Geschrieben von: Sarah Henry
  • Kommentare: 0
Sylvania SDVD9004 Motherboard Replacement

Schwierigkeitsgrad

Difficult

Schritte

9

Zeitaufwand

10 - 25 Minuten

Einleitung

This guide uses incorrect tools. Use an ESD safe tool, such as a nylon spudger, to complete steps that involve delicate internal components.

  1. mIHFaKfnewbAsxaw

    • Remove ten 7mm Phillips #0 screws.

    • Remove four 5mm Phillips #0 screws.

  2. Y1lWgDAfUgFD3lCm
    Y1lWgDAfUgFD3lCm
    Q2xEB4lojvAESvOL

    • Flip the device over.

    • Lift the top.

  3. MxcYOPJuteyUEVSv

    • This guide uses incorrect tools. Use an ESD safe tool, such as a nylon spudger, to complete this step.

  4. 6UDYBcfkMtuxLmqr
    6UDYBcfkMtuxLmqr
    J4guFPKCUcKQBQM5
    tI1woOB3gqTJpwoN

    • This guide uses incorrect tools. Use an ESD safe tool, such as a nylon spudger, to complete this step.

    • Wedge head lightly between drive and bottom of tab.

    • Repeat on both sides.

    • Gently pull out ribbon

  5. 2DrsEpkRQPBvfUL6

    • Drive Removal

    • Use Philip's screw driver to remove three 7 mm screws.

    • Rotate counter clockwise to loosen screws.

  6. PCQtB6mGGp5adPcb

    • This guide uses incorrect tools. Use an ESD safe tool, such as a nylon spudger, to complete this step.

    • Follow the red and black cables to the motherboard point of attachment.

    • Use a Flat head screwdriver.

    • Place head of driver into the grove of plug and port.

    • Wedge on all sides evenly to work out plug slowly.

    • Remove small and large plugs.

  7. DdV4AHOR6Pn6fAMt
    DdV4AHOR6Pn6fAMt
    s1uOv31ryT4JsACZ
    vwTmoPyJr5rSsbYW

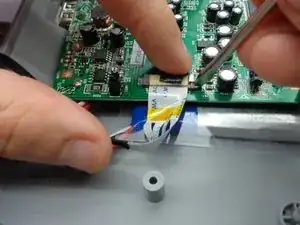

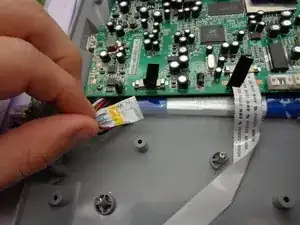

    • Remove Ribbon from Rear Panel

    • This guide uses incorrect tools. Use an ESD safe tool, such as a nylon spudger, to complete this step.

  8. OyLkyvN1bZ6TNhtu

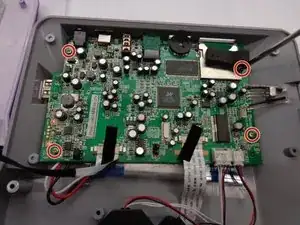

    • Anchor screw removal

    • Use Philip's head screwdriver

    • Place head of driver into screw on mother board.

    • Rotate counter clockwise

    • Remove all four screws

  9. Me6qqgrK3Hw5YSSE

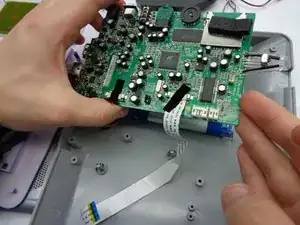

    • Lift motherboard to expose battery

Abschluss

To reassemble your device, follow these instructions in reverse order.
